1. Hello, Ollin

This chapter takes you from an empty file to a sketch that moves on its own. Twenty-eight circles drift around the ring above, each breathing a little out of step, while a panel of parameters tunes them as they run. On the way you learn what creative coding is and meet the idea every chapter comes back to: in Ollin, things move by default. After the ring, you drag a shape into place by hand, meet a sketch that waits for the mouse, and run a sketch from anywhere.

What you need

You need a Mac running macOS 26 or newer, and Apple's Swift tools. Installing Xcode from the App Store is the easiest way to get them. Once its first-run setup finishes you never have to open it again. Everything in this guide happens in the terminal and your text editor. You don't need to know Swift either, because the guide teaches what each step needs as it comes up. Appendix A is the primer to read first, if you'd rather meet the language whole.

Two commands say whether the machine is ready:

swift --version        # Ollin needs 6.3 or newer
xcrun --find metal     # the Metal compiler Ollin draws with

If either one fails, finish Xcode's setup and let it install its additional components, then try again. With both working, clone the repository:

git clone https://github.com/eaviles/Ollin.git
cd Ollin

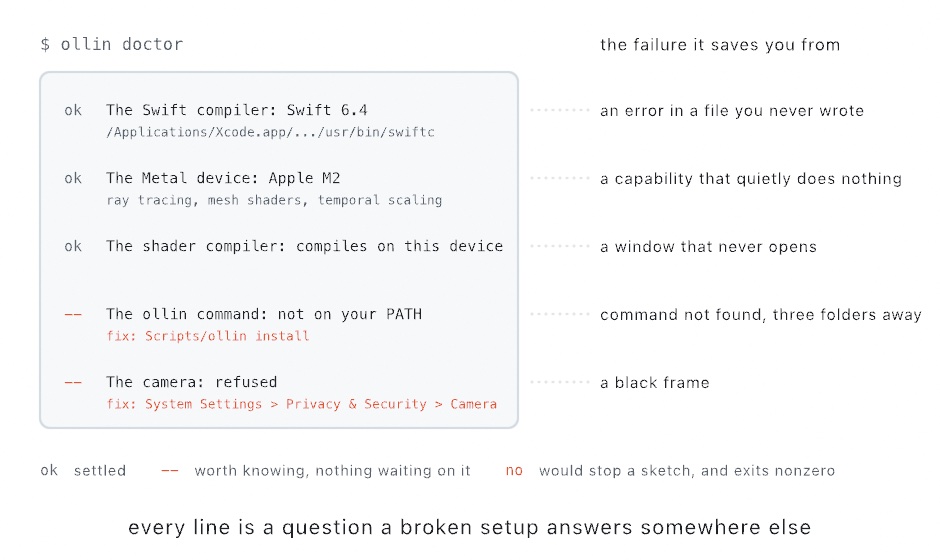

The repository carries a fuller check than those two commands, and it is the first thing to run when something later refuses to work. From the folder you just cloned:

Scripts/ollin doctor

It asks about the system, the Swift compiler, the graphics chip, the shaders, the ollin command, and the permissions a sketch might need. The ollin command is a shortcut you install near the end of this chapter, under A shorter way to run things. Metal is the part of macOS that draws with the graphics chip, and a shader is a small program that runs on it. Ollin draws through both, and you write a shader of your own in Chapter 18. Each answer gets a mark. ok is settled. -- is a note, and nothing is waiting on it. no would stop a sketch from running, and a fix: line under it says what to do.

The report exists because a broken setup rarely fails where the problem is. A shader library that won't compile reads as a window that never opens, and a camera nobody granted reads as a black frame. The figure pairs five of the answers with the failure each one saves you from. Checking the machine goes through the report answer by answer.

Now run your first example:

swift run --package-path Examples Example-Basic-HelloCircle

The first build takes a few minutes, and after that builds are quick. A window opens with a circle slowly breathing on a white canvas. That is a sketch: a small program that draws a picture. A frame is one picture the display shows, and it shows many of them each second. Ollin runs its drawing commands again for every frame, and changing the numbers between frames is what turns the picture into motion.

A running sketch keeps the terminal busy, so quit it with ⌘Q when you've looked at it.

The gallery

The repository holds a few hundred examples, and one command opens all of them:

swift run OllinExamples

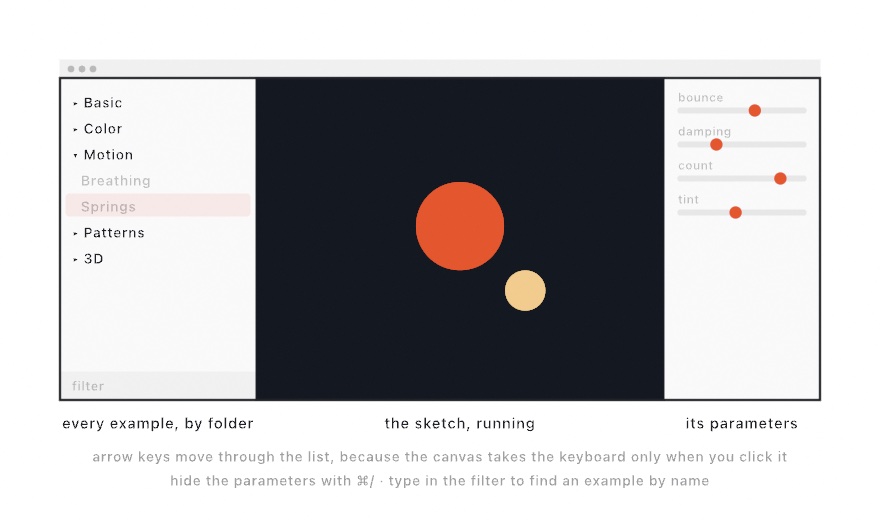

That opens the gallery, a window holding every example in the repository. Give it two minutes now, because this guide points at examples constantly and the gallery is where you look at them.

The window has three panes. On the left, every example, as a collapsible tree that mirrors the folders on disk. A filter field at the bottom finds one by name. In the middle, the selected sketch, running rather than pictured. On the right, that sketch's parameters. A parameter is a value the sketch lets you tune from a control while it runs. Hide the panel with ⌘/ when you want the picture to yourself.

Arrow keys move through the example list, not into the sketch. The canvas takes the keyboard only once you click it. That way you can still arrow to the next example while a sketch is reading key presses. Examples that use the keyboard show a small hint saying so, and clicking the canvas hands the keys over.

Every entry is an ordinary sketch file sitting at Examples/<Group>/<Name>/Sketch.swift, the same shape as the file you're about to write. When one does something you want, open it, read it, copy the part you need.

Quit the gallery with ⌘Q before the next command, or leave it running and open a second terminal tab in the repository folder.

Your first sketch

Make a folder for your own work and a file in it. A folder inside the cloned repository is convenient, because the commands below all run from the repository folder:

mkdir MySketches

Create MySketches/FirstCircle.swift in your editor, with exactly this in it:

import Ollin

final class FirstCircle: Sketch {
    override func draw() {
        background(.white)
        fill(Color(hex: 0x2B2B2B))
        drawCircle(width / 2, height / 2, 200)
    }
}

Then, from the repository folder:

swift run OllinLive MySketches/FirstCircle.swift

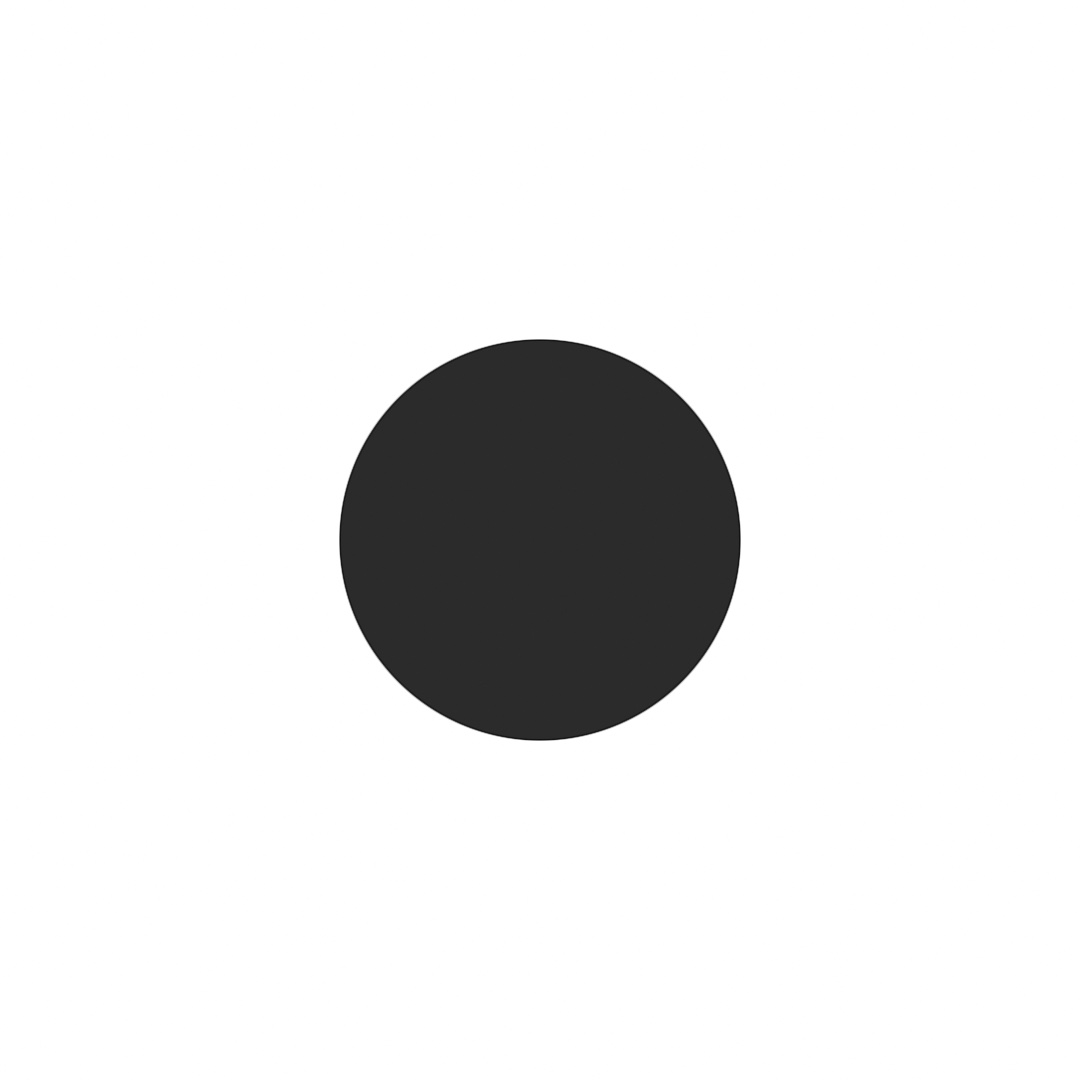

A window opens with your circle in it. Three calls made it happen. background(.white) fills the canvas, fill sets the color the next shape is drawn in, and drawCircle draws it. Its three numbers are x, y, and radius, in that order, and the radius is the distance from the circle's center to its edge. width and height are the size of the canvas, so halving each puts the circle in the middle. Ollin names a set of colors, and .white is one of them. The fill color, Color(hex: 0x2B2B2B), is named by the same six hex digits a color picker or a web page uses. There is more on both in Shapes and ink.

Swift note. import Ollin brings the framework in. The line final class FirstCircle: Sketch declares your sketch, a new thing named FirstCircle built on Ollin's Sketch. Building on Sketch is what gives you the canvas, the drawing calls, and the loop. final says nothing else will build on FirstCircle in turn, which is the usual choice for a sketch. override func draw() fills in the one function Ollin calls to render a frame. You never call draw() yourself, because Ollin is the one calling it.

Now keep the window open, go back to your editor, change 200 to 320, and save. The circle grows in place, because OllinLive watches the file and swaps in every save while the window keeps running. Try breaking it on purpose: delete a parenthesis and save. An error prints in the terminal while your last working sketch keeps drawing, so nothing is lost. Fix the parenthesis, save again, and you're back where you were.

You'll work this way in every chapter, so arrange the window and the editor side by side now. Leave OllinLive running in its own terminal tab, and open a second tab in the repository folder for the commands that come later.

What creative coding is

You have just done all of it once, at a small scale. You wrote a program whose output is a picture, ran it, changed a number, and looked again. Creative coding is that loop, kept up until the picture is one you want to keep.

The program is the material. Instead of drawing a shape by hand, you write the rule that places it. The same rule can then place a thousand shapes, move them, or let chance decide where each one goes. You decide how things get placed, and the computer carries the decision out as many times as you like.

People use it for prints and posters, animation and motion graphics, and visuals for music and for the stage. They also use it for installations that fill a room, drawings for a pen plotter, and data made visible. The practice goes back to the 1960s, when Georg Nees, Frieder Nake, and Vera Molnár wrote programs that drove pen plotters. In the same years Sol LeWitt wrote instructions for other people to draw. Examples/Recreations/ holds sketches after their work and after later artists, and Chapter 4 builds a grid in Molnár's manner.

The word sketch comes from Processing, which called its programs sketches and kept them in a sketchbook folder. The idea was that a program can be as quick and as disposable as a drawing in a notebook. You make one to try an idea out. Ollin keeps the word and the attitude. A sketch is one file, most of them are short, and you make many.

The work has a shape, and this guide follows it. Each step below names the chapter that teaches it.

• Write. A sketch is a short program: setup() runs once and draw() runs every frame, and the drawing calls go in draw(). This chapter covers that, and Chapter 2 and Chapter 3 give you color and motion to write with.
• Run. Under swift run OllinLive, which reloads the sketch on every save, so you look at the result while you edit. You set that up a page ago.
• Tune. Numbers you keep changing become parameters you turn while the sketch runs. This chapter's finished sketch declares four, and most chapters after it use them.
• Keep the variation you like. Once chance enters a sketch, every run is a different picture, and a seed lets you get one of them back. Chapter 4 teaches that.
• Finish. Pick the version to keep, fix its seed and its parameters, size it for where it will go, and check it. Chapter 41 opens on that practice.
• Export. A still, a video, a GIF that loops, a file a plotter draws, or a page that plays in a browser. This chapter's sketch leaves as a still, Chapter 3 exports a looping GIF, and Chapter 41 covers the rest.

The rest of this chapter stays on writing, running, and tuning. The techniques the field is built on come in the chapters after it, one technique per chapter, each taught through a sketch you make.

Once, then every frame

draw() is one of two functions Ollin calls for you. The other is setup(), and it runs a single time, before the first frame is drawn. Both go inside your class:

final class FirstCircle: Sketch {
    override func setup() {
        // runs once, before anything is drawn
    }

    override func draw() {
        // runs again for every frame, for as long as the window is open
    }
}

Keep your own drawing commands in draw(). The skeleton above only shows where the two functions sit. Anything that should happen once belongs in setup(). That means work heavy enough to slow the sketch if it ran every frame, and decisions the sketch should make once and then keep. You don't need it yet, since everything in this chapter is drawn fresh each frame from numbers that are cheap to compute. It arrives properly in Chapter 3, where a timeline is told once that it should loop. From Chapter 9 on it carries the heavy work, such as reading a photograph once and keeping it.

Where things go

Your circle sat in the middle because width / 2 and height / 2 put it there. To put a shape anywhere else, you need to know how a position is measured. Every position in a sketch is measured from the canvas's top-left corner, with x growing to the right and y growing downward. If you remember y going up from math class, this is the other way round. It's how screens have worked for decades, and p5.js and Processing use the same convention.

The diagram names one point by how far it sits from that corner, which is all a pair of coordinates ever says. Inside draw(), width and height always hold the canvas size. That is why drawCircle(width / 2, height / 2, 200) lands in the middle. Try replacing the coordinates with plain numbers and see where the circle goes. The default canvas is 1080 pixels square. Both 380 and 240 are less than half of 1080, so drawCircle(380, 240, 60) sits left of center and above it.

The canvas is not the window

width reads 1080, and the window on your screen is smaller than that. The thing you draw on and the thing you look at are two different things.

The canvas is a fixed grid of pixels, 1080 by 1080 unless you say otherwise. It's what all your coordinates are measured against. The window is a view of that canvas, scaled to fit comfortably on your screen. So width reports 1080 whatever the window is doing, and a circle at (540, 540) is in the middle. An exported image comes out at the full canvas resolution.

Two properties control the pair, and they're independent:

override var canvasSize: CanvasSize { .square(1080) }   // the pixels you draw on
override var windowMode: WindowMode { .auto }           // how it's previewed

Those go inside your class, above draw(), like the two functions did.

Swift note. override var canvasSize: CanvasSize { .square(1080) } is a property rather than a function, and the braces hold the value it answers with. It is the same move as override func draw(): Ollin asks, and your class answers. .square(1080) is short for CanvasSize.square(1080), because Swift lets you drop the type name when it can already tell what you mean. .white is Color.white the same way.

canvasSize takes a square, an explicit width and height, or one of the named presets. Try .fhd1080 for a wide canvas. The other presets cover video, phone screens, and real paper, so .uhd4K, .vertical1080, .a4, and .usLetter are all there. Paper sizes come with a companion. .a4.dpi(300) keeps the page the same physical size while raising the pixel grid to print resolution, 300 dots per inch.

windowMode is .auto by default, which picks a preview size that fits your screen and then holds it. .fixed(0.5) pins the preview to a fraction you choose, and holds that. Neither window can be dragged, and neither changes your drawing. .resizable is the one that can: the window is free, and the canvas follows it, so width and height change as you drag. Exports still come out at the size canvasSize declares.

Looking closer

The window shows the whole canvas, scaled to fit. Sometimes you want to look at part of it up close, and leave the canvas as it is. One call hands that view to you:

override func draw() {
    background(.white)
    viewControl()
    // everything you draw, as usual
}

Drag to pan, scroll to zoom. A sketch that never calls it never pays for it, and Chapter 26 has the same idea for 3D, as a camera you can orbit.

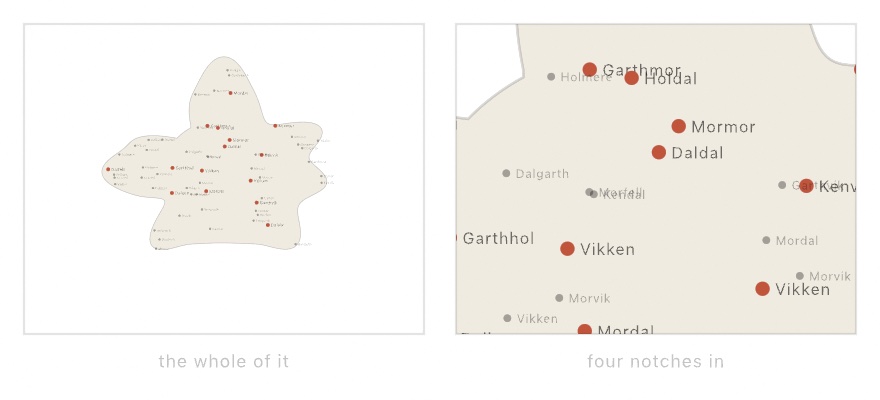

The figure shows one reason to zoom. The place names are drawn at the same text size in both panels. The zoom draws the outlines and the letters larger, so they arrive crisp. A shape is kept as geometry rather than as pixels, so looking closer shows more of it instead of a blur.

A drag moves the content as far as the pointer went, so the drawing stays under your finger. A zoom is anchored on the pointer, so whatever you are pointing at stays under it while the view grows around it. Neither is smoothed, on purpose: a flat plane under a finger reads better without inertia. The call can also take a center and a zoom to open on, and after the first frame they are the view's home: pass a @Param as the zoom, and turning it in the inspector glides the view there until you drag or scroll, after which the view is yours and only resetView() goes to the new home.

Only what you draw after viewControl() moves. Anything drawn before the call stays put, so a fixed backdrop goes there. A caption that has to be drawn last needs withState { }, which Chapter 6 introduces. Put the call and the drawing inside it, and draw the caption after it.

The mouse, which arrives later in this chapter, comes in the coordinates now on screen. So drawCircle(mouseX, mouseY, 20) lands under the pointer at any zoom.

Placing things without pixels

Once you know the canvas can be any size, there's a habit that saves rewriting layouts later.

Writing drawCircle(85, 71, 34) says "85 pixels from the left". That's fine until the canvas changes shape, and then, as the top row shows, your careful arrangement slides off the edge. Writing the same position as a fraction of the canvas says "half way across, a little above the middle". That survives any canvas you give it.

drawCircle(center: uv(0.5, 0.42), radius: 200 * scale)

This is the second way to call drawCircle. It names its parts, and center: takes the position as one value, a point, instead of as two numbers. The call uv(u, v) hands back the canvas point at those fractions. So uv(0, 0) is the top-left corner, uv(1, 1) the bottom-right, and uv(0.5, 0.5) the middle. Sizes want the same treatment. scale is the shorter canvas edge divided by 1000, so 200 * scale is a fifth of that edge. That is 216 pixels on the default canvas, and proportionally more when you export the same sketch at print resolution.

You don't have to do this everywhere. Plenty of sketches in this guide use plain pixels, because they only ever run at one size. Fractions matter the day you want a sketch as a poster as well as on a screen. They keep the centers where you put them. They can't know what a square arrangement should become on a wide one, so look at the layout again when the shape changes. The sketch this chapter builds places its ring this way, from the middle of the canvas and in units of scale.

Shapes and ink

You've met drawCircle. Its two companions take their numbers the same way, a position first and then dimensions. One difference matters from the start: a circle's position is its center, while a rectangle's is its top-left corner.

Try each of them in place of your circle. drawRect(300, 240, 240, 160) puts a rectangle's top-left corner at (300, 240) and makes it 240 wide and 160 tall. drawLine(100, 200, 700, 400) runs from one point to another, a pair of numbers per end. A line needs a stroke color rather than a fill, because it has no interior to fill.

The styling calls set how everything after them is drawn. Once you set fill or stroke, every shape you draw from then on uses it, until you change it.

fill(Color(hex: 0xE4572E))   // an orange interior
stroke(.black)               // a black outline
strokeWeight(5)              // five pixels thick

To draw an outline and no interior, call noFill() in place of the fill line. For an interior and no outline, call noStroke() in place of the stroke line.

Shapes land in the order you call them, so where two overlap, the later one covers the earlier one. Draw two circles that overlap, then swap the two drawCircle lines and save:

fill(Color(hex: 0xE4572E))
drawCircle(460, 540, 200)
fill(Color(hex: 0x219EBC))
drawCircle(620, 540, 200)     // drawn second, so it sits on top

The blue circle sits on top because it was drawn second, and after the swap the orange one does. This is also why background(...) goes first in draw(): it repaints the whole canvas, so anything drawn before it is covered up. There is no other layering in a plain sketch. Whatever you want in front, you draw last.

Colors come as names or as hex values like Color(hex: 0xE4572E), the same six digits you'd use on the web. Ollin ships a selected set of the CSS color names, the names a web page can call a color by. .white, .black, .orange, .crimson and about forty more are there, and the Color page lists them all. There are many more shapes where these three came from, including ellipses, triangles, stars, and hearts, and the Drawing page is the full catalog.

Sometimes you want a rectangle centered on a point instead of placed by its corner. Then ask for it by name, with drawRect(center: Vector2(x, y), width: w, height: h). Most shapes offer both forms, one taking bare numbers in a fixed order and one naming the anchor. Naming the anchor is how you say which part of the shape the position refers to.

A rectangle can also round its corners. cornerRadius: 20 rounds all four the same. cornerRadii: gives each corner its own radius, so a tab is rounded along its top and square where it meets the page:

drawRect(300, 240, 240, 160, cornerRadius: 20)          // every corner the same
drawRect(300, 440, 240, 60, cornerRadii: .top(20))       // a tab: the top two rounded
drawRect(300, 540, 240, 160, cornerRadii: CornerRadii(topLeft: 60, topRight: 0,
                                                       bottomRight: 60, bottomLeft: 0))

.top, .bottom, .left, and .right round one pair of corners, and CornerRadii names all four. A radius too large for its side is scaled down until it fits, so the shape is kept.

Swift note. Vector2(x, y) bundles an x and a y into a single value. That way you can pass a position around as one thing instead of two loose numbers. uv(0.5, 0.5) handed you one earlier, and .x and .y read its two numbers back. That's all you need from it here. Chapter 10 gives it a chapter of its own. Once a position is one value, you can add positions together, which is how motion and forces get written.

Swift note. Some calls take bare values in a fixed order, like drawCircle(540, 540, 200) for x, y, and radius. Others name their values, like Color(hex: 0xE4572E), where the hex: is part of the call. A call can offer both forms, and drawCircle(center:radius:) above is the named twin of the bare one.

It moves on its own

Everything you have drawn so far held still. This section is the idea the framework is named for, since ollin is the Nahuatl word for movement. Put draw() back to the one centered circle from your first sketch, and change its line to:

drawCircle(width / 2 + time * 120, height / 2, 200)

Save, and the circle drifts to the right until it leaves the canvas. Nothing else was needed, because draw() was already running over and over. It repeats as fast as your display refreshes, often 60 or 120 times a second. time holds the seconds since the sketch started. So when time grows, an x computed from it grows along with it, and the circle lands somewhere slightly different on every frame. Drawing that sequence quickly is what we read as motion. Nearly everything animated in this guide works this way, from breathing dots to flocking birds: you put time into an expression.

time has siblings called frameCount, deltaTime, and frameRate. The Sketch page lists them, and you'll meet them properly in Chapter 3.

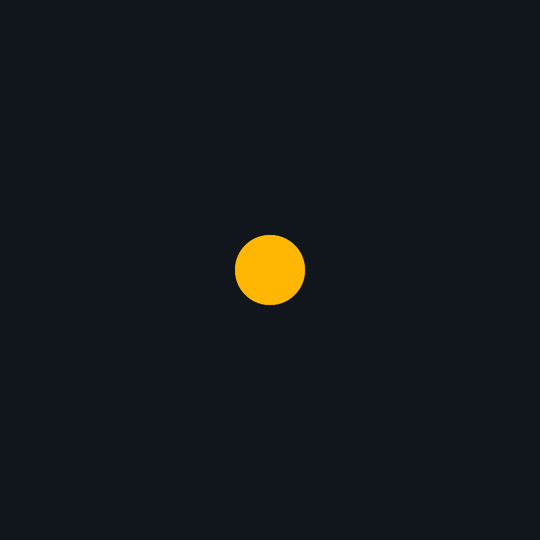

Our drifting circle has a problem, which is that it left. To make motion that stays on the canvas, we'll borrow one recipe from Chapter 3 ahead of time: sin. All you need to know for now is what it does. As its input grows, sin glides smoothly between -1 and 1 and back again, forever, the way a pendulum swings. Multiply it by a distance and you have a swing of your own.

Replace everything inside draw() with this. It changes the colors as well as the motion, so your window matches the picture:

background(Color(hex: 0x11151C))
noStroke()
fill(Color(hex: 0xFFB703))
let x = width / 2 + sin(time * .tau / 3) * 300
drawCircle(x, height / 2, 70)

The * 300 is how far it swings. .tau is the angle of one full turn, about 6.28. So time * .tau / 3 completes one turn every three seconds, and the swing starts over. Chapter 3 explains why that works, and for today you can use it as a recipe.

Swift note. let x = ... gives a value a name. Use let for values computed fresh each frame, which is most of what you'll write in draw(). Use var for values that need to change after they're set.

The recipe has a second half, and it's what the finished sketch is built on. sin has a twin called cos, and together they turn an angle into a point on a circle:

Angles here are radians rather than degrees. A radian is a unit of angle, and in radians a full turn is .tau, where degrees would say 360. Appendix B draws the unit as a dial. Angle zero points to the right, and since y grows downward, a growing angle sweeps clockwise. The angle in the diagram is negative, which is why its point sits above the center rather than below.

Give the pair an angle and a radius. Then cos(angle) * radius is how far across the point sits, and sin(angle) * radius is how far down. Grow the angle and the point walks the rim. For now that's all this guide asks of cos and sin, that they're how you place things around something. Chapter 3 shows why it works, and Appendix B keeps this picture for whenever you want it back.

The mouse joins in

Your sketch already knows where the cursor is. Change the drawing line in FirstCircle.swift to:

drawCircle(mouseX, mouseY, 80)

The circle now follows your mouse, because mouseX and mouseY update continuously. And since draw() runs every frame anyway, reacting to a held button is just an if:

if mouseIsPressed {
    fill(Color(hex: 0xE4572E))
} else {
    fill(Color(hex: 0x2B2B2B))
}
drawCircle(mouseX, mouseY, 80)

Hold the button and the circle turns orange. Because draw() is running anyway, you can ask "is the button down right now?" on every frame and draw accordingly. mouseIsPressed is that question. Reacting once to a press or a release is a different question. So is the keyboard, which has both a held form and a one-shot form. Input covers them all.

Putting it together: a breathing ring

Now we can build the sketch from the top of the chapter, out of the steps above. A loop places 28 circles around a ring using the cos and sin recipe. time inside the angle makes the ring drift, and sin swings both the ring's radius and each circle's size so that the sketch breathes. The ring is placed from the middle of the canvas with uv and sized in units of scale, as Placing things without pixels advised. Each circle takes its fill from a short list of colors. The four @Param lines are the panel of controls, and the steps above did not cover them.

Two more things in the listing are new. The circles run inside a for loop, which repeats the drawing commands once per circle. And each color carries an alpha, which is how opaque it is. 1 is solid, 0 is invisible, and 0.85 lets overlapping circles show a little of each other.

Swift note. for i in 0..<count counts from 0 up to, but not including, count, so i names each circle in turn. i is an Int (a whole number) while positions want Double (numbers with fractions), so Double(i) converts. The type [Color] is a list of colors, colors[0] is its first, and colors.count is its length. The % sign gives the remainder after division, which is what makes the palette repeat. These keep coming back; there's more Swift in the Swift quick reference whenever you want it.

Make a new file, MySketches/HelloMotion.swift:

import Ollin

final class HelloMotion: Sketch {
    @Param("Speed", 0...2) var speed = 0.3
    @Param("Size", 8...80) var size = 38.0
    @Param("Circles", 4...120) var count = 28
    @Param("Ground") var ground = Color(hex: 0x11151C)

    let colors: [Color] = [
        Color(hex: 0xFFB703, alpha: 0.85), Color(hex: 0xFB8500, alpha: 0.85),
        Color(hex: 0x219EBC, alpha: 0.85), Color(hex: 0x8ECAE6, alpha: 0.85),
    ]

    override func draw() {
        background(ground)
        noStroke()
        let center = uv(0.5, 0.5)
        for i in 0..<count {
            let angle = Double(i) / Double(count) * .tau + time * speed
            let breathe = sin(time * 1.4 + Double(i) * 0.5)
            let ring = (310 + breathe * 80) * scale
            let x = center.x + cos(angle) * ring
            let y = center.y + sin(angle) * ring
            fill(colors[i % colors.count])
            drawCircle(x, y, (size + breathe * 16) * scale)
        }
    }
}

Run it with swift run OllinLive MySketches/HelloMotion.swift and walk through what each line contributes:

• Double(i) / Double(count) * .tau divides the full turn into one slot per circle. Adding time * speed grows every angle together, so the ring rotates.
• breathe is the pendulum again. The part to notice is the + Double(i) * 0.5, which puts each circle's swing ahead of its neighbor's. That small offset is what makes the ring ripple instead of pulsing all at once. Try deleting it and watch the difference.
• breathe gets used twice, swinging both the ring's radius (310 + breathe * 80) and each circle's size (size + breathe * 16). So each circle grows as it swings outward and shrinks as it comes back.
• center is uv(0.5, 0.5), the middle of the canvas. The * scale turns the ring's radius and each circle's size from thousandths of the shorter canvas edge into pixels. Change canvasSize to .fhd1080 and the ring keeps its place and its size.
• colors[i % colors.count] cycles through the palette, so circle 0 gets the first color and circle 4 wraps back around to it.

That leaves the four @Param lines. Look at the sidebar of the OllinLive window and you'll find they became a small control panel. The line @Param("Speed", 0...2) var speed = 0.3 declares a parameter with a label, a range, and a starting value. The sketch reads it like any other property. Each parameter arrived as the control its type calls for. Speed and Size hold Doubles, so they are sliders. Circles holds a whole number, so it is a stepper. Ground holds a Color, so it is a swatch you click to open a picker. There are more of these, including a toggle for a Bool and a draggable pad for a point. You'll meet them as the guide goes on. Beside a numeric control the value itself is live, so you can drag it sideways to scrub or click it to type one in.

Play the panel while the sketch runs. Your tuned values survive a save. Edit the code, save, and your parameter positions carry over into the reloaded sketch instead of snapping back to the defaults. Build that habit early, because a number you find yourself trying three values of is a number that wants to be a parameter.

Saving the values you tuned

There is one thing the panel cannot do on its own, which is remember. A tuned value lives in the running program, so quitting drops it.

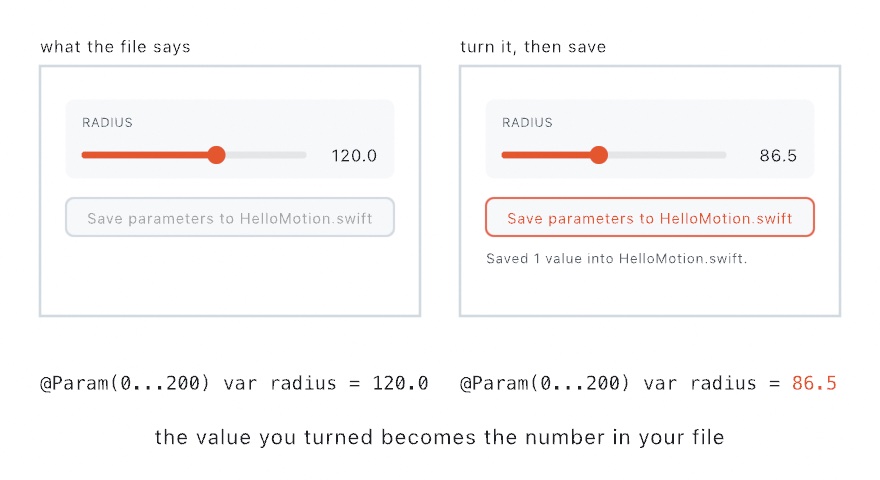

The button under the rows writes them down for you. Press Save parameters to HelloMotion.swift, and every value you turned goes into the @Param line that declared it. The figure shows the same press on a sketch with one parameter.

Only the parameters you moved are written, and only the value on the line changes. Your label, your range, your spacing, and the comment you left at the end are all where you put them. The host then reloads the sketch from the file, the same way it does after any save of your own.

Going the other way is one click. Every parameter you turn shows a small dot after its name. Click it, or right-click the row and choose Reset. The value goes back to what the @Param line declares while the sketch keeps running. Reset all beside the save button puts every parameter back at once.

A number keeps the shape you gave it. A whole default stays whole while the value is whole, and one written with a point keeps its point. That second rule matters because 86 and 86.0 are different types to Swift, and only 86.0 is the Double you declared.

One limit applies. A default the sketch works out has no value to replace. See it for yourself by making the Size line a calculation and pressing the button again:

@Param("Size", 8...80) var size = 114.0 / 3

The line under the button says so and names what stands there. Put 38.0 back when you've seen it.

Make it yours

The sketch is small enough to change freely, and three directions are a good start:

• Run Circles from 4 up to 120 and watch the gaps close. Keep Size above 16 while you do, because below that the breathing takes some radii to zero or below. A circle with a radius of zero or less isn't drawn at all.
• Swap the palette. Pick four hex colors you like and paste them in.
• Replace drawCircle with drawRect(center: Vector2(x, y), width: size * scale, height: size * scale). Use the center: form here. The positional drawRect(x, y, size * scale, size * scale) would put each square down and to the right of its place on the ring.

When you want to keep a moment of it, one flag writes a still at the full canvas size, and no window opens:

swift run OllinLive MySketches/HelloMotion.swift --export ring.png --frame 90

--frame 90 names the frame, so the same command gives the same picture every time. Chapter 3 exports its sketch as a GIF that loops, and Chapter 41 and Chapter 42 have every other way a sketch can leave.

Moving something by hand

The ring above is placed by arithmetic, and its parameters are tuned in the panel. A shape you placed with plain numbers has a third way to move. It is the one for when you want it a bit to the left. Typing gets you there by guessing: change 300 to 280, save, look, change it again.

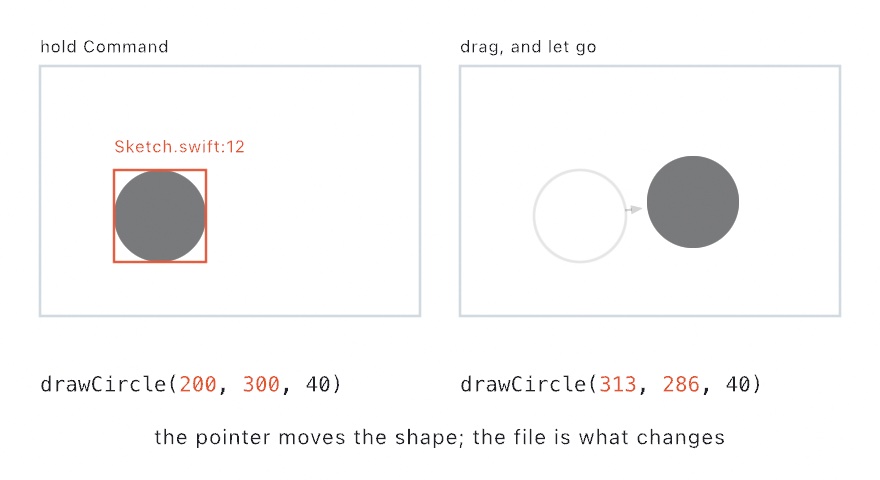

While the sketch is running under swift run OllinLive, you can skip that. Go back to FirstCircle.swift and give the circle plain numbers, because a drag rewrites numbers and a calculation has none to rewrite:

drawCircle(300, 300, 40)

Save, then hold Command and move the pointer over the window. The shape under it is outlined, and the line of your file that drew it is named above the outline. Drag the shape where you want it, let go, and those numbers in your file are the ones that change.

Your editor may reload the file on its own or ask you first, and the running window has already reloaded itself. Nothing else on the line moves. The radius, your spacing, and the comment you left at the end are all where you put them. The performance host in Chapter 43 has the same drag. There the numbers change in the code on the stage, and the host evaluates it for you.

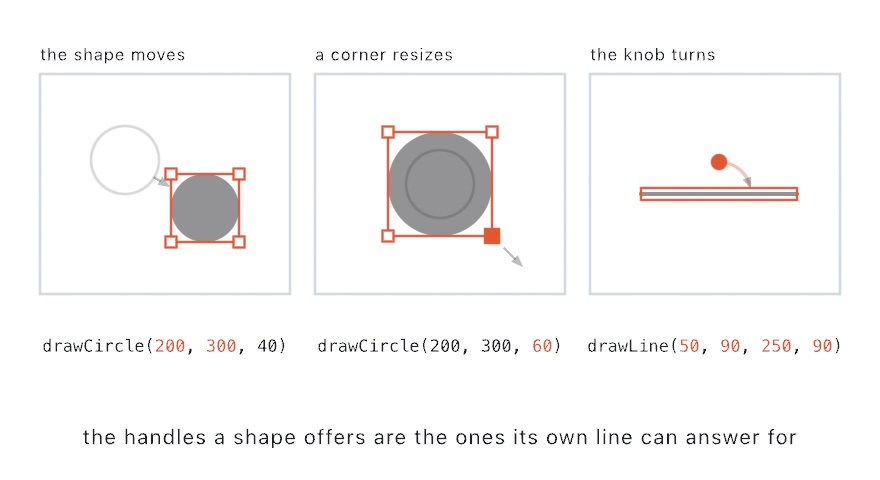

The shape itself is only the first of three things to take hold of. Small squares sit on its corners, and a knob stands clear above it.

A corner changes the numbers that size the shape and leaves the ones that place it alone, so a circle grows from its middle. A rectangle written drawRect(x, y, width, height) grows from its top-left corner, which is where those first two numbers put it. That is also why such a rectangle offers three corners and not four. The fourth sits on the corner that places it, and has nothing to size.

The knob turns the shape, and it only appears when the line can say which way the shape faces. A line has two ends, so both swing about the middle. An arc, a piece of a circle's edge, carries its own two angles, so those move instead. A circle looks the same however you turn it, so it shows no knob at all. Turning a circle takes a rotate further up the file, which Chapter 6 introduces and which this doesn't touch.

One more move belongs here, and it's the one a number cannot express. A shape drawn later lands on top, as Shapes and ink showed. With a shape outlined, press ⌘] to bring it forward or ⌘[ to send it back. Its line moves past its neighbor's in the file. The fill it was drawn with moves along with the shape and is written again where the shape lands. The shapes that came after it get back the ink they were drawn with. So the only thing that changes is which shape is in front. Shift takes it all the way to the front or the back.

Two rules apply before you rely on any of it, and the first is the save button's. A number written whole stays whole, so a shape dragged to 285.7 lands on 286, and a nudge under half a pixel changes nothing. And only a plain number can be dragged. If you wrote drawCircle(width / 2, 300, 40), that first slot holds no number to change. The host says so rather than moving anything: places this shape with width / 2, so there is no number to move.

There is one exception. A coordinate written as the name of a @Param has no number on the line either. It does have somewhere to put the value, though.

@Param(60 ... 660) var sunX = 120.0
@Param(60 ... 660) var sunY = 120.0

drawCircle(sunX, sunY, 40)     // dragging this moves both parameters

The drag sets those parameters instead of writing the file, so nothing recompiles. The values are kept across the next reload, the way any parameter you change by hand is. Both coordinates have to be parameters for that. With a parameter in one slot and a plain number in the other, the number is still written into the file and the sketch reloads.

That limit follows from what the drag is. The file is the sketch, and dragging edits the file. So anything the file works out for itself has to be changed where it's written. Dragging a shape covers the rest, including named points and lines with two ends. It also says what stops a shape from moving past a line that is not ink.

A sketch that waits, and a few small doors

The ring above draws every frame and reads the mouse as it goes. Some sketches would rather hold still and answer only when something happens. A few small calls belong with that kind of sketch: the frame it asks for, the pointer it shows, a file the person hands it, and a frame it hands back.

One more frame when asked: redraw()

redraw() draws one more frame of a sketch that noLoop() stopped, and then the sketch holds again. It is for a still sketch that changes on a click or a key. Between clicks it costs nothing, and a picture that takes a second to draw is drawn only when something changed. The pair comes from Processing, where a sketch that changes only on input is written with noLoop() and redraw().

import Ollin

final class Stamps: Sketch {
    var marks: [Vector2] = []

    override func setup() { noLoop() }

    override func mousePressed() {
        marks.append(mouse)
        redraw()   // one frame shows the new mark
    }

    override func draw() {
        background(Color(white: 0.95))
        noStroke()
        fill(.black)
        for mark in marks { drawCircle(center: mark, radius: 14) }
    }
}

Three clicks before the frame is drawn still make one frame. A redraw() inside draw() asks for nothing, because that frame is the one being drawn. While the loop runs, it does nothing at all. Sketch has the rest.

The pointer's shape, or none

pointerShape(_:) gives the pointer over the canvas one of the Mac's own shapes, and hidePointer() takes it away. A shape says what a click will do: an open hand over something to drag, a crosshair where you pick an exact point. Hiding it suits a sketch that draws its own brush at mouse. The shapes are the system's cursors, the same arrow, crosshair, and hands every app on the machine shows.

override func draw() {
    background(.white)
    let overDisc = (mouse - center).length < 80
    pointerShape(overDisc ? .openHand : .crosshair)
    fill(.black)
    drawCircle(center: center, radius: 80)
}

Setting the same shape every frame costs one comparison, so the call can live in draw(). The shape and the hiding are kept apart: showPointer() brings the pointer back in whatever shape was set last. Both apply over the canvas only, so the rest of the window keeps the ordinary arrow. Input lists every shape.

A file the person picks: the open panel

chooseFiles(withExtensions:) shows the open panel, the same window every Mac app's Open command shows. It returns at once, and the sketch keeps drawing while the panel is up. When the person picks, the paths arrive in chosenFiles() and filesChosen() runs. It is the other way in beside a drop, which Chapter 9 uses for a photograph. A drop needs the Finder open, and the panel only needs a key.

var photo: Image?

override func keyPressed() {
    if key == "o" { chooseFiles(withExtensions: ["png", "jpg", "heic"]) }
}

override func filesChosen() {
    for path in chosenFiles() { photo = try? loadImage(path) }
    redraw()
}

Reading chosenFiles() empties it, as droppedFiles() does, and a panel closed without a pick adds nothing. The redraw() matters only to a still sketch, which would otherwise wait for its next click to show the picture. Input covers several files at once.

The frame on the clipboard: copyFrame()

copyFrame() puts the frame the window shows on the clipboard as a PNG. It is for showing someone what the sketch is doing: press a key, then paste into a message or a document. Larry Tesler and Tim Mott worked out cut, copy, and paste at Xerox PARC in the 1970s. The Lisa and the Macintosh then made them part of every program.

override func keyPressed() {
    if key == "c" { copyFrame() }
}

The copy is the canvas at its own size, whatever size the window is. A still sketch draws one more frame for it, so a draw() that rolls new numbers copies a new roll. To keep a frame as a file instead, --export frame.png on the run command writes one (Export). Recording has the details of the copy.

A shorter way to run things

Every sketch of yours so far ran as swift run OllinLive from the repository folder, and the chapters keep writing that form. Typing it in full gets tiring, though, and it means every session starts with a cd. There is a one-time fix, and it installs an ollin command that a few later chapters use for other jobs. Chapter 18 brings a shader over with it, Chapter 27 turns a scene file into a sketch, and Chapter 44 starts every project with it.

Scripts/ollin install        # run once, from the repository folder

That links an ollin command into a folder on your PATH, which is the list of places your shell looks for commands. If it reports that the folder it picked isn't on yours, run the line it prints, then source ~/.zshrc. After that, a sketch is a file you can run from anywhere:

ollin new NextIdea.swift     # writes a starter sketch, named after the file
ollin NextIdea.swift         # opens it in the live window

A sketch in Ollin is one .swift file. It is small enough to keep in a notes folder, mail to someone, or paste into a message. It runs on any machine that has Ollin. Every export option works on a loose file too, so this writes four seconds of a sketch on your desktop as a GIF:

ollin NextIdea.swift --export-gif out.gif --seconds 4

ollin new also writes #!/usr/bin/env ollin on the first line and marks the file executable, so ./NextIdea.swift opens it as well. Single-file sketches covers the rest, including how to do that to a file you wrote by hand.

The install puts one more thing in place: zsh completions. Press Tab after ollin and the subcommands come up. Press it after a -- and you get the flags of whichever command you are typing, each with the line that says what it does. There are more than a hundred flags, so Tab is how you find the one you want.

$ ollin dots.swift --export-<TAB>
--export-gif        -- write an animated GIF
--export-grid       -- write a contact sheet of seeds
--export-video      -- write a movie
...

One flag belongs beside the parameters you just tuned. ollin HelloMotion.swift --list-params prints every @Param the sketch declares: its kind, its range, and what it holds. Each is in the spelling --param reads back, so a value can be set for a run from the command line. Checking the machine shows the listing.

The command does two more things beyond running a file, and each has a page of its own in the reference.

When one file isn't enough

A loose sketch can load a photograph, a font, or a shader sitting in its own folder. Two things push past one file: code you would rather split across several files, and a program you build once and hand to somebody. Both want a package, and ollin new MySketch writes one. It holds the sketch in a folder of its own, a manifest that knows where the framework is, and a README with the commands. Adding --with images or --with text gives it a folder for pictures or fonts as well. swift run MySketch runs it from inside the folder. Typing ollin there instead opens it in the live window, so the edit-and-save loop is unchanged. A helper you move into a second file beside the sketch compiles with it, and saving either file reloads the window. ollin new MySketch --from Basic/HelloCircle starts the folder from Examples/Basic/HelloCircle instead of a blank draw(). ollin generate makes the same choices in a window, running each starting point while you look. The project generator has every template and option, and growing into a package says what the live window does with one.

Looking something up without leaving the terminal

Everything the reference says is in the folder you cloned, so you can read it where you work. The command ollin docs color opens the page about color in a pager, where Space scrolls and q returns you to the prompt. The form ollin docs Color#ramp opens one section of that page. ollin docs --search "long exposure" finds every line that says it, with the page and the heading it sits under. ollin examples flocking lists the examples that match a word, and ollin examples ocean --source prints the sketch itself, here Examples/3D/Geometry/Ocean. ollin api drawCircle prints each way to call it with its labels. None of this needs a network. The reference offline covers the rest, including ollin site, which writes the pages out as a website.

Where this comes from

The setup() and draw() sketch model comes from Processing, started by Casey Reas and Ben Fry in 2001. It continues through p5.js, openFrameworks, and OPENRNDR, each of which shaped Ollin's design. Processing also gave the field the word sketch, and the sketchbook folder its programs live in. Processing and p5.js repeat draw() while a sketch runs. Ollin keeps that at the display's refresh rate, and noLoop() stops the loop when you want a still. The artists named under What creative coding is are Georg Nees, Frieder Nake, Vera Molnár, and Sol LeWitt. They are credited with the others in Examples/Recreations/. The name is the Nahuatl word for movement, the seventeenth day sign of the Aztec calendar. The edit-and-watch live-reload loop belongs to a long lineage of live-coding tools. You'll meet its stage-performance form in Chapter 43.

Go deeper

• The frame: one screen on what a drawing call does, why the picture is built from nothing each time, and what happens once draw() returns.
• Where a point is: one screen on the coordinates above and the difference between a point and a pixel. It also names the other coordinate frames that arrive with a camera, a 3D scene, or a machine.
• Sketch: the full lifecycle, noLoop() for stills, and running a sketch as its own standalone program with @main.
• Canvas: canvas sizes and presets, the preview window, and writing sketches that work at any resolution. It covers scale for sizes, and uv(u, v) for placing things as 0…1 fractions of the canvas.
• Drawing: every shape and the complete ink state, and viewControl with its opening framing, its zoom range, and resetView().
• Single-file sketches: installing ollin, running one loose .swift file or a package's sketch, the hashbang form, and exporting from the command line.
• The project generator: every template and option behind ollin new and ollin generate, what a generated folder holds, and how to add a template of your own.
• Dragging a shape: everything a Command-drag can move, what it writes, and why a calculation is refused by name.
• Checking the machine: ollin doctor answer by answer, installing the shell completions, and --list-params for everything a sketch declares.
• The reference offline: ollin docs, ollin examples, and ollin api in full, including one section of a page, the search across everything, and what happens in a pipe.
• The Ollin quick reference: the whole framework on one page. It lists the units every call takes, and the mistakes that give a wrong picture with no error. Keep it open while you work.
• Input: the keyboard, click hooks, and the rest of the mouse.
• Parameters: the full parameter family, from toggles and menus to draggable pads. It also covers grouping them into cards, icons, smoothing, saving a tuned set back into the code, and driving parameters from MIDI or OSC hardware.
• Appendix A, Just enough Swift: the language taught in order, every construct these sketches lean on. The Swift quick reference is the short version, for whenever a single construct felt mysterious.
• Appendix B draws this chapter's math, one picture per idea: Where things are, Angles and circles, Fractions, mapping, and wrapping.
• Worked examples: Examples/Basic/HelloCircle, the parameters demo Examples/Live/Parameters, a page of shapes to drag around, Examples/Live/DragToEdit, and a sketch you can grab, drag, and release with the mouse, Examples/Input/Drag.

Contents · Next: Chapter 2, Color that works
