2. Color that works

Color is the first thing a viewer reads in a sketch, and plain arithmetic mixes it to mud. Here you learn the tools that keep it clean, from thinking in hue to palettes grown from one color and gradients used as paint. The color field at the top is built on one harmony and redraws as a fresh variation on every click. Later sections mix like paint, measure how far apart two colors look, and shade one color the way a painter does.

Everything here builds on Chapter 1; keep working the same way, one file under OllinLive, saving as you go. Put the swinging yellow circle from It moves on its own back into FirstCircle.swift, because this chapter colors it.

Naming a color

You've been writing Color(hex: 0x2B2B2B) since your first sketch. Here is the full menu:

fill(.coral)                                   // the CSS named set
fill(Color(hex: 0x5E60CE))                     // six hex digits, straight from a color picker
fill(Color(hex: 0xE4572E, alpha: 0.5))         // alpha is its own argument
fill(Color(white: 0.15))                       // a quick gray
fill(Color(red: 0.95, green: 0.45, blue: 0.25))

The named constants cover the essentials (.white, .black, .red, …). They also include a selected set of the CSS names, so .coral, .teal, .crimson, and .lavender all read like what they are. The integer hex form is the one you will use most, because any color picker gives you those six digits. Go back to FirstCircle.swift and try a few of these in its fill line, and keep a sketch open through the chapter.

Colors can also arrive as strings, Color(hex: "#ff0066"), which matters once a color comes from somewhere else (a file, a website's palette). Strings can be malformed, so this form can fail, and Swift makes that visible:

Swift note. Color(hex: String) returns an optional: a Color? that is either a color or nothing. Swift won't let you use it until you say what happens in the nothing case. The line if let c = Color(hex: text) { fill(c) } runs fill(c) only when the text parsed. The ! in Color(hex: "#ff0066")! means "I promise this literal is well formed", and the sketch crashes if you're wrong. You'll meet optionals again; this is the pattern.

Thinking in hue

Hex digits and names get you a color you already know. To find one you don't, you want dials you can turn, and which dials you get depends on the model. A color model is a set of dials for naming a color. Pick how many dials there are and what each one does, and you have a model. There is no single right answer. A set of dials that suits a screen does not suit a hand mixing paint, and neither suits an eye judging whether two colors match.

RGB has three dials, one each for red, green, and blue light, because that is what a screen emits and a sensor measures. It goes back to nineteenth-century experiments on how three lights can be matched against a fourth, and it is how the machine stores color. That makes it good for storing and poor for choosing, because nobody thinks "a little less green" when what they want is a warmer orange.

HSB rearranges the same colors onto dials a person can steer. Pick the hue on a wheel, then decide how vivid it is (saturation) and how bright (brightness). It arrived with computer graphics in the 1970s, made for a designer's hand. Later in this chapter you will meet a third family, the OK models, which arrange the dials so that equal moves look equal.

fill(Color(hue: 0.07, saturation: 0.85, brightness: 0.95))   // a warm orange

All three run from 0 to 1. Hue wraps, so 1.2 means the same as 0.2, a full turn around the wheel plus a bit. That makes hue safe to drive with time directly, with no bookkeeping to keep it in range. Try it in FirstCircle.swift, replacing its fill line:

fill(Color(hue: time * 0.1, saturation: 0.8, brightness: 0.95))

The circle now cycles through the rainbow every ten seconds while it swings. One value goes in and continuous color comes out. A great deal of generative color is that one move.

Mixing you can trust

The wheel names one color at a time. The next thing you want is the color halfway between two, and that is where the arithmetic goes wrong. Take a blue and a yellow, average their RGB numbers to get the halfway color, and you get… mud. Averaging the machine's storage format tells you nothing about what the eye considers halfway:

Ollin gives you mixing as one call, with the space as a choice. A space is a color model used for the arithmetic, and each model finds a different halfway color. With blue and yellow standing for any two colors you hold:

Color.mix(blue, yellow, 0.5)              // OKLab, the default
Color.mix(blue, yellow, 0.5, in: .rgb)    // the muddy one, when you want it
Color.mix(blue, yellow, 0.5, in: .hsb)    // walks the hue wheel between them

The third number says how far along you are, and this guide calls it t. 0 gives the first color, 1 gives the second, and 0.5 gives the halfway point. The default space is OKLab, which arranges color's numbers so that equal moves look equal. A step of a given size changes the appearance by about the same amount wherever you take it. Blue and yellow are opposites, so their midpoint is still a neutral. It is an even, steady neutral, though, with no lurch in brightness and no detour through some other hue. Appendix B has the idea underneath, when you're curious. The practical version is short: mix in OKLab unless you have a reason not to.

Try it live on the swinging circle:

fill(Color.mix(Color(hex: 0x2050C8), Color(hex: 0xFFC800), sin(time) * 0.5 + 0.5))

The sin(time) * 0.5 + 0.5 squeezes the -1...1 that sin gives into the 0...1 that t wants, so the circle breathes between the two colors. Remember that squeeze. Chapter 3 turns it into a proper tool with a name.

Hues that weigh the same: lightness

Mixing was the first place the eye and the numbers disagreed. The second is lightness. Two hues with the same brightness in HSB do not look equally bright. The eye weighs hues differently, so a yellow glows and a blue turns heavy. The same perceptual model as OKLab comes in two more shapes that put lightness on a dial of its own. OKLCH turns OKLab into dials for lightness, chroma (how far from gray a color sits), and hue, so nudging a hue leaves the lightness alone. Mixing with .oklch holds a color's identity while it arcs between hues. OKHSL arranges the same three dials so that everything you ask for is displayable, since a screen cannot show every color the numbers can name. That makes it the space to reach for when a sketch is generating colors rather than using ones you picked.

Three everyday moves come ready-made on top of OKLCH. A shadow, a highlight, and an accent can all come from the one color you chose, here called ink:

ink.lighter()          // same hue, a step up in lightness
ink.darker(by: 0.25)   // and down, by as much as you ask for
ink.complement         // the opposite hue at the same weight

OKHSL does one more thing: hues that match in weight. You spell one as OKHSL(h:s:l:), its hue, saturation, and lightness each from 0 to 1, and hand it to Color.

for i in 0..<12 {
    fill(Color(OKHSL(h: Double(i) / 12, s: 0.9, l: 0.65)))
    drawCircle(90 + Double(i) * 82, height / 2, 32)
}

Twelve different hues, and none of them shouts over the others, because they share a lightness. Do the same with Color(hue:...) and the yellow will glow while the blue turns heavy and dark. The harmonies in the next section lean on this. A palette grown from one color only works as a kit when its colors weigh the same.

Kits you carry: Palette and Ramp

Individual colors get you started, but finished sketches usually run on a kit of colors chosen once and used throughout. Ollin has two kinds, plus two ready-made variants of the second:

A Palette is a fixed set of separate colors. Indexing wraps in both directions, so any counter cycles through it forever, and color(at:) slices 0...1 into equal bands:

let p = Palette.set2                  // eight ColorBrewer colors, ready to go
fill(p[i])                            // wraps: p[9] is p[1]
fill(p.color(at: t))                  // 0...1 quantized into eight bands

It is also a collection, so you can walk it the way you walk an array. The loop for (i, color) in p.enumerated() walks it with a counter, which is how you draw a strip of its swatches. You can also use map, first and reversed() on it, and Array(p) turns it into a plain array.

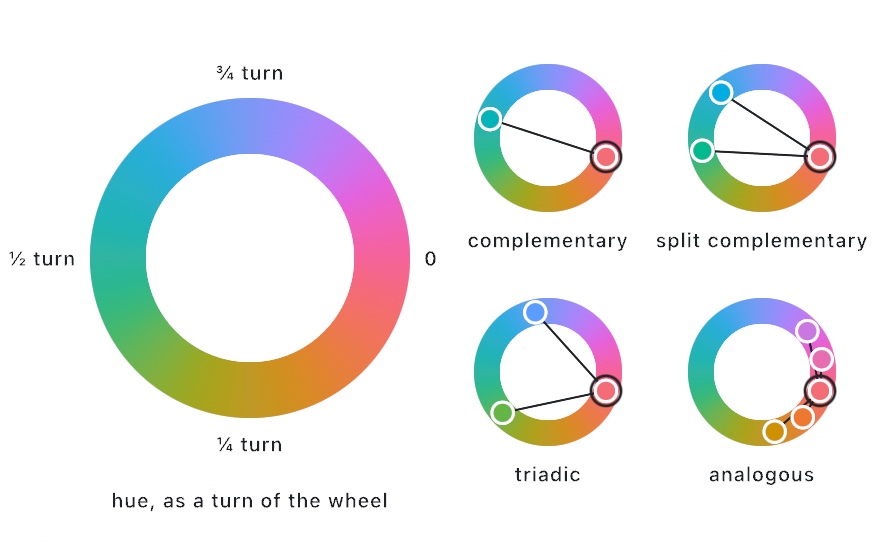

Eight classic sets ship built in, from .set1 through .accent. A palette can also be grown out of one color you chose, and that is what the harmony builders do. They pick companions by turning around the hue wheel. The wheel itself is old. Isaac Newton bent the spectrum into a circle in Opticks (1704) so that its two ends met. Johannes Itten's The Art of Color (1961) gave painters the twelve-hue version most design teaching still uses. On it, the relations that keep coming back are angles.

• Complementary is the base and the hue directly opposite it, half a turn away. The pair has the most contrast the wheel can give, so it is for an accent against a ground.
• Split complementary is the base and the two hues flanking its opposite. It keeps most of that contrast with less of the clash two exact opposites can produce. It also gives you one more color to work with.
• Triadic is three hues a third of a turn apart. Nothing in it is the ground, so it reads as lively, and it wants one of the three kept small.
• Analogous is the base and its neighbors, a twelfth of a turn apart by default. It is calm, because every color shares most of its hue with the next. A sunset or a forest reads as one thing for the same reason.

The builders work in OKLCH, so the companions keep the base's lightness and chroma rather than drifting lighter or darker. That is the weight matching from the section above:

Palette.complementary(of: base)
Palette.splitComplementary(of: base)
Palette.triadic(of: base)
Palette.analogous(of: base, count: 5)

spread: on splitComplementary and analogous sets how far apart the companions sit, as a fraction of a turn. A harmony is a Palette, so it indexes and walks like .set2 does. .ramp() turns it into the smooth kind, which is what the finished sketch does with one.

A Ramp is the continuous version, a gradient you can sample anywhere along its length. Give it a list of colors to spread evenly, or explicit stops if you want to place them yourself. A stop is a color paired with where it sits along the length, from 0 to 1. Then read it with color(at:). Blending runs through OKLab by default, so the in-betweens stay clean. Every mixing space from earlier is on the menu, so Ramp([blue, yellow], in: .hsb) walks the hue wheel between its two colors:

let dusk = Ramp([Color(hex: 0x14213D), Color(hex: 0x5E60CE),
                 Color(hex: 0xE56B6F), Color(hex: 0xFFB703), Color(hex: 0xFFF3E0)])
fill(dusk.color(at: t))

Two kinds of ramp come pre-made. Colormap holds eight scientific maps such as .viridis and .magma. Seven of them are built so that perceived brightness climbs evenly from one end to the other. Those seven are the standard way to turn a number into a color a viewer can read. .turbo is a rainbow instead, brightest in the middle. CosinePalette holds seven cyclic palettes such as .sunset and .neon, all generated from one small formula. Each channel is a cosine wave, and four numbers set its offset, amplitude, frequency, and phase. Because they loop, they work well when fed with time. Both answer to the same color(at:).

A palette or a ramp can be a @Param, which saves a lot of editing and rerunning. A parameter is a value with a control in the panel beside the window, which the hosts call the inspector. You turn it while the sketch runs instead of editing a number and saving. Chapter 1 declared four of them, and Parameters is the rest of the family.

@Param var inks = Palette(.red, .white, .black)      // a strip of blocks
@Param var dusk = Ramp([.black, .white])             // a band with a handle per stop

The palette shows in the inspector as its colors side by side. Click one and the color well beside the label edits it. The ramp shows as the gradient itself, and its handles drag along the band to move a stop. The + and − buttons add and remove a color in either. When you like what you see, press Save parameters, as in Chapter 1. It writes the colors back into the code, and a ramp comes back in full, with each stop's position beside its color.

Gradients as paint

A Ramp can also be the paint. Anywhere fill or stroke accepts a color it will also accept a gradient, laid over the canvas in one of four ways. Below, dusk is the ramp from the kit section and glow is a ramp that ends in a transparent color. spot is a point you choose, as a Vector2. The last one, wheel, is a ramp of hues around the wheel:

fill(.linear(from: Vector2(0, 0), to: Vector2(0, height), dusk))   // along a line
fill(.radial(center: spot, radius: 260, glow))                     // out from a point
fill(.conic(center: spot, startAngle: -.pi / 2, wheel))            // once around a point
stroke(.alongPath(wheel))                                          // along the stroke itself

Each of them takes a Ramp or a plain list of colors. Alpha is kept too. A radial ramp that ends in a transparent color gives you a soft glow, as in the second panel above. The coordinates are the ones you place shapes with, measured from the canvas corner. When Chapter 6 moves the paper, a gradient moves with the shapes it paints. .conic sweeps the ramp once around a point you choose, starting from an angle you choose. .pi is half a turn, so -.pi / 2 is a quarter turn back from the right, which is straight up. That is a color wheel, a dial, or a pie in one call. A ramp whose last color repeats its first hides the seam where the sweep comes back around. .alongPath runs from the start of a line to its end. On a closed shape it sweeps once around its own center, which is how the ring above became a wheel too.

Palettes from a file

Every kit so far was typed in, and typing hex codes gets tiring. A file lets you skip it. loadPalettes reads palettes someone else already made. It returns every palette in a file, while loadPalette returns just the first one. Both throw when the file will not read. You never have to say what format the file is in, because the loader looks at the bytes and works it out. It reads a plain list of hex codes one per line, a CSV or TSV with a palette on each line, and JSON. It also reads Adobe .ase swatch files from Illustrator or Photoshop.

let sets = try loadPalettes("1000.json")       // however many the file holds
let one  = try loadPalette("sunset.hex")      // just the first

Swift note. A call that can fail on the way, like reading a file, is marked throws, and you call it with try. A bare try passes the failure up to whoever called you, and setup() accepts that: the sketch stops there with the loader's sentence, which is the shape to use for a file the sketch needs. try! says "I promise this works", and crashes if it doesn't, the way ! did for the optional earlier. try? hands you nil, Swift's name for the nothing case of an optional, instead of a crash. Appendix A has the rest of the story.

A good place to get palettes is nice-color-palettes, an npm package carrying a thousand of them as JSON, in the shape loadPalettes expects. You do not need npm to use it. The repository holds the files, so take 100.json or 1000.json from it and drop the file next to your sketch. The call above reads it as is. Two things to know about that file. Its palettes were collected from COLOURlovers, whose default license forbids commercial use. So Ollin doesn't bundle them, and you should check the terms before selling work that uses them. And so many people have reached for this collection that its first palette shows up in a great deal of generative art. That palette's colors are #69d2e7, #a7dbd8, #e0e4cc, #f38630, and #fa6900. If you want your work to look like yours, Chapter 9 takes a palette out of a photograph you took.

Will everybody see it?

You now have colors, mixes, kits, and gradients. Before they go into a sketch, one check applies to all of them. Pick two colors that read as clearly different to you, and there is a fair chance somebody cannot tell them apart. About one person in twenty sees color differently from the palette most work is designed against. In a room of twenty people it is one of them.

Three kinds are common enough to have names. Protanopia and deuteranopia both blur red against green, and between them they are most of the one in twenty. Tritanopia, which blurs blue against yellow, is rare. You can look at your own colors through any of the three:

let seen = Color.red.simulated(.deuteranopia)

The picture at the top is a wall of woven blankets, where red sits beside green in nearly every stripe. Under the two commonest kinds those stripes arrive as one olive band, and only the blues survive. The middle block is a palette common in charts. Its orange, green and red all turn olive, and under each of those kinds two of them land on one shade. The bottom block is Palette.colorblindSafe, eight colors published for this, and it holds together. A dark bar under a swatch marks a color that merges with another one in that column.

To see a whole sketch rather than a swatch, put the reading over the frame. The call postProcess filters the finished frame just before it is shown, so it belongs in draw() rather than setup(). The usual place is the last line:

override func draw() {
    // everything you were drawing anyway
    postProcess(.colorVision(.deuteranopia))
}

Put it behind a @Param toggle and it becomes a switch you flick while you work.

You can also ask, rather than look:

if !myPalette.isColorblindSafe() {
    print(myPalette.confusions())     // worst pair first
}

The rule underneath all of this is short. Red and green do look alike to a protanope, and the pair is often still fine, because one is much darker than the other. What merges is two colors of the same lightness that differ only in hue. Distances here are measured in OKLab, the same space a mix works in, where black to white is 1. A red and a green matched for lightness sit 0.281 apart for average vision, and 0.013 apart under the worst kind. So vary lightness, not only hue, and give a shape or a label to anything that color alone is carrying.

A recipe borrowed early: random

Chapter 1 borrowed sin from Chapter 3, and this chapter's finale borrows random from Chapter 4. A short version will get you through it. random(-1, 1) hands you a fresh unpredictable number in that range every time you call it. On its own that's a problem for a sketch that redraws sixty times a second. Every frame would roll new numbers, and the canvas would boil. The fix is randomSeed(n), which restarts the randomness from a fixed point. The same seed then always produces the same sequence of "random" numbers. Seed at the top of draw() and every frame makes identical choices, which holds the picture still. Change the seed and you get a brand-new variation that's just as coherent. Chapter 4 has the rest of the story, and this is enough to be going on with.

Putting it together: a color field

The sketch is one ramp grown from one color, and a quilt of cells, with three ideas layered on top. The ramp is an analogous harmony of the base color, the base and four neighbors on the wheel at one weight, blended in OKLCH. Turning the base re-colors the whole field. Each cell samples the ramp according to its diagonal position, so the top-left corner is 0 and the bottom-right is 1. Seeded randomness then jitters every sample, which is what makes the field read as organic rather than mechanical. And a sin wave rolls across the quilt, so the colors travel rather than sit. Make MySketches/ColorField.swift:

import Ollin

final class ColorField: Sketch {
    @Param("Base") var base = Color(hex: 0x5E60CE)
    @Param("Columns", 4...28) var columns = 14
    @Param("Jitter", 0...1) var jitter = 0.4

    var fieldSeed = 7

    var ramp: Ramp {
        Palette.analogous(of: base, count: 5, spread: 1.0 / 8).ramp(in: .oklch)
    }

    override func draw() {
        randomSeed(fieldSeed)
        background(Color(hex: 0x0E1116))
        noStroke()
        let margin = 70.0, gutter = 7.0
        let cell = (width - margin * 2 - gutter * Double(columns - 1)) / Double(columns)
        for c in 0..<columns {
            for r in 0..<columns {
                let x = margin + Double(c) * (cell + gutter)
                let y = margin + Double(r) * (cell + gutter)
                let diagonal = Double(c + r) / Double(columns * 2 - 2)
                let t = diagonal
                    + random(-0.5, 0.5) * jitter * 0.5
                    + sin(time * .tau / 5 + diagonal * 4) * 0.16
                fill(ramp.color(at: t))
                drawRect(x, y, cell, cell)
            }
        }
    }

    override func mousePressed() {
        fieldSeed += 1
    }
}

Run it and walk the interesting lines:

• randomSeed(fieldSeed) runs at the top of every frame. So all the random(-0.5, 0.5) calls that follow roll the same numbers each time, and the quilt holds still. Now click the canvas. Then mousePressed() bumps the seed, and the next frame rolls a new set of jitters. Each click gives you the same sketch as a fresh variation, and you can click through as many as you like.
• ramp is worked out from base each time it is read, so the Base swatch in the panel re-colors the field as you pick. The call Palette.analogous(of:count:spread:) is the harmony from Kits you carry, five hues an eighth of a turn apart centered on the base. Then .ramp(in: .oklch) blends them the short way around the wheel.
• Two loops, one inside the other, visit every column and row, and diagonal turns each cell's position into the 0...1 the ramp wants.
• The t line carries the look: position, plus seeded jitter scaled by the parameter, plus the rolling wave. Comment out one term at a time to see what each contributes. With jitter at zero you get a clean mechanical gradient, which is a good look in its own right.
• The parameters do a lot of work here. Columns changes the sketch's character, chunky at 5 and woven at 28, and Jitter takes it from formal to painterly.

Swift note. var fieldSeed = 7 is a property, declared on the class rather than inside draw(). Because it lives on the class, it survives from one frame to the next. A let or var written inside draw() is born and dies with that frame. The line var ramp: Ramp { … } is a property too, but a computed one, like canvasSize in Chapter 1. Its braces work the value out each time the name is read. mousePressed() is another function Ollin calls for you, once per click, alongside setup() and draw(). And a loop inside a loop does what it sounds like: for every column, visit every row.

Directions to try before Chapter 3:

• Swap the harmony for .triadic(of: base) or .splitComplementary(of: base) and watch how much more the field contrasts.
• Swap the ramp for Colormap.viridis or CosinePalette.sunset, or for a list you picked by hand, like the dusk ramp from Kits you carry. Neither of the first two is a Ramp, but both answer color(at:). So in the fill line, write Colormap.viridis.color(at: t) in place of ramp.color(at: t).
• Make the cells circles, or shrink each one by a little random(0, cell * 0.3) for a hand-placed feel.
• Replace the flat background with a .linear gradient of the ramp's two end colors.

A variation you like is a seed, and the seed is what each click changed. The one on screen is 7 plus the number of clicks it took, so write that number into the var fieldSeed line. Then export a still of the sketch at a frame you name, so the wave sits where you saw it:

swift run OllinLive MySketches/ColorField.swift --export field.png --frame 60

Chapter 4 turns that counting into a tool, with the seed printed on the canvas and a key that steps through them.

Mixing like paint

The field above mixes light. Every ramp and every Color.mix so far did, because a screen is made of light. Halfway between two lights of opposite hue sits gray. Paint answers the same question differently, and Ollin can mix that way too. The sketch had no need of it. A palette that has to read as gouache or watercolor does. So does a ramp that has to pass through the green a painter expects.

Blue and yellow make green: mixing in .paint

Mixing in .paint follows pigment rather than light. It is for ramps and palettes that should behave like a box of paints. There, blue and yellow give green and every mix darkens a little. It comes from the layer optics Paul Kubelka and Franz Munk published in 1931 for paint films, applied to the light each color reflects.

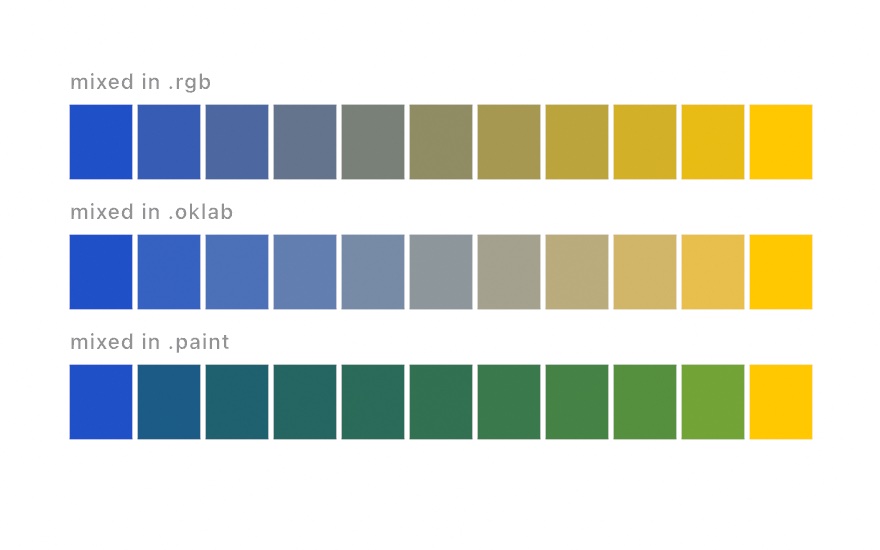

The spaces earlier in the chapter disagree with your childhood. Mix blue and yellow in RGB or the OK family and you land on a neutral or a mud. Neither space reaches the green a paintbox gives. HSB finds green only by walking the hue wheel through it. A screen mixes light, and halfway between two opposite lights sits gray. Paint works the other way around: pigment absorbs light, and green is what survives both pigments.

.paint is the second kind of mixing, in the same call:

Color.mix(blue, yellow, 0.5, in: .paint)   // green, the way a palette gives it

Behind the call, each color becomes the reflectance curve of a surface painted with it. The two curves then mix the way scattering pigments mix, wavelength by wavelength. The mixes also darken a little, because pigment only ever absorbs, and that darkening is half of what makes the result read as paint. .oklab gives you even steps, and .paint gives you what pigment does. Pick by what the sketch needs. The Ramp form takes the same space, so Ramp([blue, yellow], in: .paint) travels through green.

Light by wavelength: Spectrum

That curve is a type you can hold, called Spectrum. It keeps a color as the amount of light at each wavelength rather than as three numbers. It is for colors that come from physics: a single wavelength, a hot body, a soap film. Turning a curve back into a color uses measurements of how the eye weighs each wavelength. The international commission on lighting (the CIE) published them in 1931. Paint mixing is the first thing a Spectrum is good for, and three more come with it, each one call:

Color(wavelength: 590)        // the single wavelength the eye reads as yellow
Color(.blackbody(1800))       // the color of a thing heated to candle temperature
Spectrum.blackbody(6500)      // and as a curve: roughly daylight

Run Color(wavelength:) from 400 to 700 nanometers and it sweeps a physical rainbow. A hue wheel gives you a different rainbow. blackbody is why a candle is orange and a hot star is blue, from one number in kelvin. Color(kelvin:) gives the same tint without the spectrum behind it. Three GPU effects also work wavelength by wavelength instead of channel by channel. They are .thinFilm for the colors in a soap bubble and .diffraction for the rainbow split off a grating. The third, .paintMix, runs the paint mixing above over a whole picture at once. The Spectral color reference has all of it.

Measuring color, and shades that drift

The field chose its colors by eye, and that is usually right. Two more tools help when a sketch needs numbers instead. One shades a color so it reads as lit. The other says how far apart two colors look. The field has no use for either. A photograph snapped to a palette does, and so does a flat shape that should look like it has a light on it.

Shades that drift: Palette.shades

A hue-shifted ramp is a run of shades of one color whose hue turns as it goes. It warms toward the light and cools into the shadow. It is for pixel-art palettes, for a flat shape that should read as lit, and for a livelier gradient map. Painters have long kept their lights warm and their shadows cool, and pixel artists made a rule of it. Raymond Schlitter's Pixelblog set the rule out step by step in 2018.

A ramp that only darkens and lightens one hue reads flat, like the left half of the picture. The right half is the same rows with the hue turned:

let skin = Palette.shades(of: Color(hex: 0xC8875E), count: 6)
let sea = Ramp.shades(of: Color(hex: 0x2A7F8F), hueDrift: 1.0 / 12)

The walk runs in OKLCH, the lightness-and-hue form from Hues that weigh the same. Lightness steps evenly from dark to light, and the base color is always one of the swatches, at the place its own lightness gives it. That is the ringed swatch in each row. The hue turns toward yellow as the shades lighten and away from yellow as they darken, by hueDrift turns at each end. So a red warms toward orange and cools toward crimson, and a blue rises toward sky and sinks toward indigo. Chroma eases off at both ends, because a very dark or very light shade at full strength looks heavy or loud. A negative drift does the reverse, with cool lights and warm shadows, which reads as moonlight.

How far apart two colors look: distance(to:)

A color distance is one number for how different two colors look. It is for picking the swatch nearest a color and for checking that two inks will not be confused. It also tells you when a change is too small to see. The idea of a space where equal distances look equal goes back to the CIE's CIELAB of 1976. The formula print shops quote today is its correction, CIEDE2000, published by M. Ronnier Luo, Guihua Cui, and Bryan Rigg in 2001.

let ink = Color(hex: 0x2F3A4A), paper = Color(hex: 0x353F4C)
let apart = ink.distance(to: paper)                          // 0.019: just apart
let delta = ink.distance(to: paper, measure: .ciede2000)     // 2.19 on the press's scale
fill(Palette.set2.nearest(to: ink) ?? ink)                    // the swatch that looks most like it

The default measures in OKLab, the space this chapter mixes in. On its scale black to white is 1. Two colors about 0.02 apart are just distinguishable side by side, and this ink and paper sit right there. It is the same scale the palette check uses for its tolerance. .ciede2000 asks the same question on the scale a print shop uses, where about 1 is just visible and 2.3 is the usual threshold. Its numbers come from CIELAB, the space swatch books and printers write colors in, and CIELab brings those numbers into a sketch. nearest(to:) answers with the palette entry that looks most like a color, and nearestIndex(to:) answers with its position, for when the entries stand for inks or threads.

The Color/Shades example puts the two together. It takes the four colors a photograph is mostly made of and grows a drifting ramp from each. Then it snaps every cell of the photograph to the nearest swatch. Under it, a histogram of the picture's lightness shows what the snapping did to its tones.

Where this comes from

The hue wheel goes back to Isaac Newton, who bent the spectrum into a circle in Opticks in 1704. The twelve-hue wheel with harmonies read as angles on it is from Johannes Itten's The Art of Color, from 1961. The OKLab family, OKLab, OKLCH, and OKHSL, is the work of Björn Ottosson. He published it openly in 2020 and 2021, and OKLab and OKLCH are now part of the CSS color standard. That is why "mix in OKLab" is advice you'll meet across modern tools. Paint mixing follows Paul Kubelka and Franz Munk's 1931 layer optics. It works over reflectance curves built by the method Agatha Mallett and Cem Yuksel published in 2019. The built-in qualitative palettes are Cynthia Brewer's ColorBrewer sets, designed for map readability and used far beyond maps. The colormaps come from the scientific-visualization world. Viridis and its relatives are from matplotlib, by Stéfan van der Walt and Nathaniel Smith, and turbo is from Google. The cosine palette formula is Inigo Quilez's, a name that will keep coming up in this guide. The eight colors of Palette.colorblindSafe are Masataka Okabe and Kei Ito's, published in 2008 for color universal design. CIELAB is the CIE's space of 1976. CIEDE2000 is M. Ronnier Luo, Guihua Cui, and Bryan Rigg's formula of 2001. Ollin's is checked against the test pairs Gaurav Sharma, Wencheng Wu, and Edul Dalal published in 2005. Shading by hue drift is pixel-art practice, set out in Raymond Schlitter's Pixelblog in 2018. Full credits live in the project's attribution notes.

Go deeper

• Color: the complete reference, including color temperature (Color(kelvin:)) and the string-hex grammar.
• Light and color: one screen on why the middle of a frame is linear light, and what the last pass does to it before the screen.
• Appendix B draws this chapter's math, one picture per idea: Fractions, mapping, and wrapping, Color and light as numbers.
• Worked examples, all in Examples/Color/: Mixing (the six spaces side by side), Harmonies, Swatchbook, PaletteFile, PaletteFromImage, Colormaps, HSBWheel, Gradients, Dithering, ColorVision, and Shades (drifting ramps from a photograph's colors, the photograph snapped to them).
• Accessibility: the color-vision simulation, the palette check, and the reduce-motion setting.
• The Schuh homages in Examples/Recreations/OwenSchuh/: both pages use color as a code. A digit is one step of a ten-step scale, so a number can be read off the picture. Colored this way, a page of arithmetic comes out as a piece of cloth.
• The Melehi homage Waves: a palette handed out by shares. Each color declares how many of every cycle's bands it gets, and a weighted round robin deals them in the palette's order. A rainbow keeps its order, and the share decides how often a color comes back.
• Drawing: every place a gradient can go as paint.
