A. Just enough Swift

The guide teaches Swift the way it teaches everything else, with a short note at the moment you first need a construct. Those notes are spread through the chapters. This appendix gathers the same ground into one pass, for people who'd rather meet the language in order. The sections from let to strings teach the core a sketch uses on almost every page. After them, Swift you'll see in listings collects most of the rest, each piece with the chapter where it first appears.

You don't need to have written Swift before. You do need to have programmed a little in some language. If you know loops and functions, most of this is new spelling for ideas you already have.

Two sibling pages cover the same territory at different speeds. The Swift quick reference is the fast pass, a page to keep open while you work. Appendix C is the dictionary for people arriving from p5.js or Processing. Read this appendix before Chapter 1 if you like to meet the language first. Or come back to it whenever a chapter's Swift note goes by too quickly.

One sketch, top to bottom

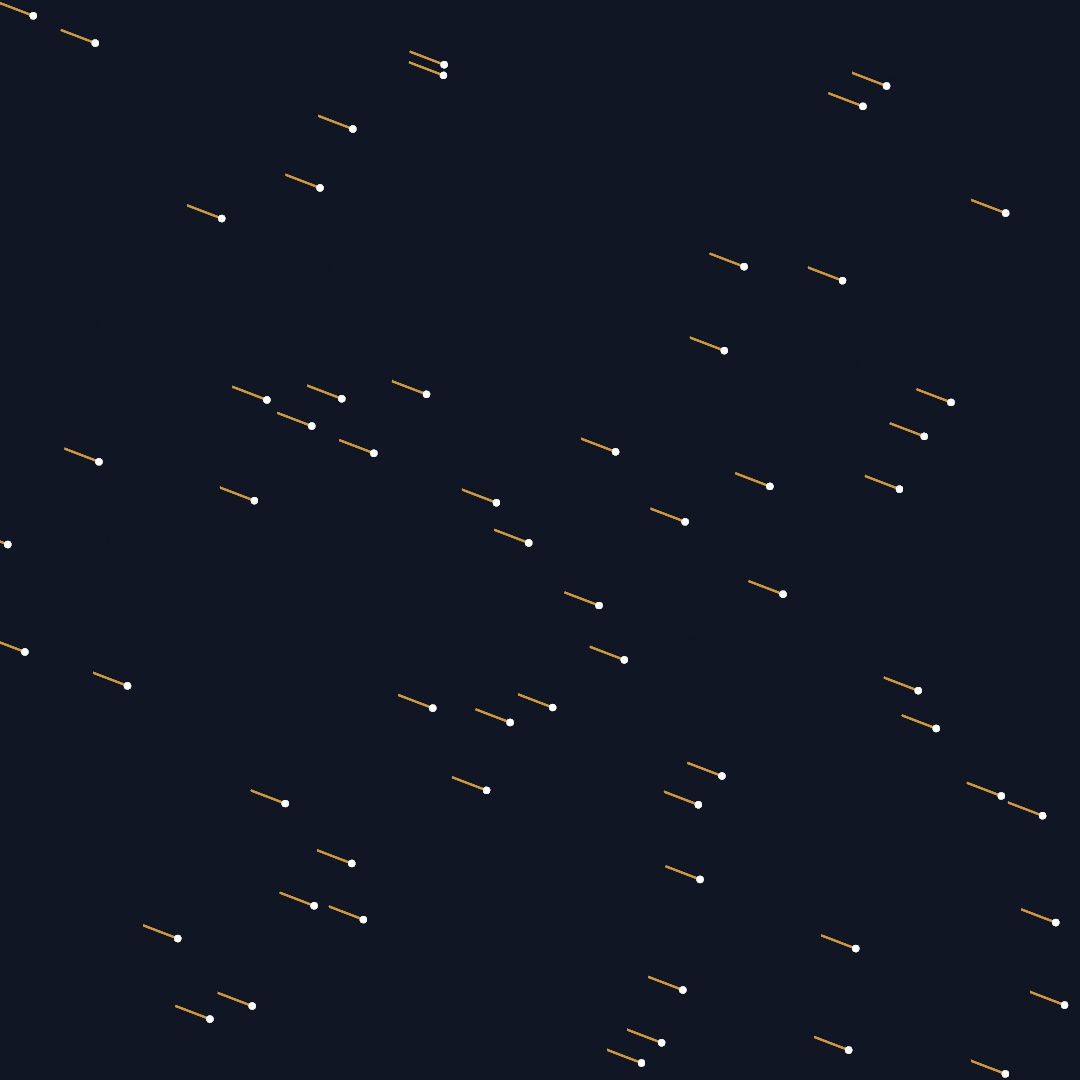

Here is a complete sketch that uses most of what this appendix covers. Sixty streaks drift across a night sky, and when one leaves the right edge it re-enters on the left.

import Ollin

final class Meteors: Sketch {
    var meteors: [Vector2] = []

    override func setup() {
        seed(11)
        for _ in 0..<60 {
            meteors.append(Vector2(random(width), random(height)))
        }
    }

    override func draw() {
        background(Color(hex: 0x101623))
        for i in 0..<meteors.count {
            meteors[i] += Vector2(2.3, 0.9)
            if meteors[i].x > width {
                meteors[i] = Vector2(-30, random(height))
            }
            drawMeteor(at: meteors[i])
        }
    }

    func drawMeteor(at p: Vector2) {
        stroke(Color(hex: 0xF2B33D, alpha: 0.7))
        strokeWeight(2)
        drawLine(p.x - 34, p.y - 13, p.x, p.y)
        noStroke()
        fill(.white)
        drawCircle(p.x, p.y, 3.5)
    }
}

The listing lives at Figures/A-JustEnoughSwift/Meteors.swift, and you can run it with swift run OllinLive pointed at the file and edit along. Read it once now, even if half of it is new. Every construct in it gets a section below, from naming values to the class itself. The sections after those cover closures, optionals, enums, and the @ in front of a property.

Naming values: let and var

Swift has two ways to name a value. let makes a constant, and reassigning it is a compile error. var makes a variable you can reassign.

let radius = 120.0     // fixed
var angle = 0.0        // will change
angle += 0.05          // fine
radius = 90            // error: radius is a let

The habit that serves sketches is to reach for let first. Most values in draw() are computed fresh every frame from time, the mouse, or the frame's own math, and never reassigned within the frame. var is for state that changes across frames, like the meteors array above. When you write var and never reassign it, the compiler warns you and suggests let.

Types, mostly invisible

Swift is statically typed, so every value has one fixed type, checked before the sketch runs. You rarely write the types out, because the compiler infers them from the values:

let r = 120.0                    // Double
let name = "Meteors"             // String
let p = Vector2(300, 200)        // Vector2

You spell a type yourself in about one situation per sketch, which is when there's nothing yet to infer from. An empty array is the classic case, which is why the sketch above declares var meteors: [Vector2] = []. The [Vector2] reads as "an array of Vector2".

The strictness has a practical result. A misspelled name or an argument of the wrong type is caught when you save, not three minutes into a run.

Two kinds of number

This is the section to read if you only read one. Swift keeps whole numbers (Int) and decimals (Double) strictly apart, and division behaves differently on each side of the line:

1 / 2       // 0, because both sides are Int
1.0 / 2.0   // 0.5

Integer division throws the remainder away. Ollin's drawing calls take Double throughout, for coordinates, radii, and seconds. So write a literal with a decimal point when it will reach a drawing call: let spacing = 100.0 / 3.0, not 100 / 3.

Swift also refuses to mix the two silently. Counts are Int (a loop counter, meteors.count) and measures are Double, so crossing between them takes an explicit conversion:

let n = 50                          // Int, a count
let spacing = width / Double(n)     // convert, then divide
let column = Int(mouseX / spacing)  // Int(...) drops the fraction

Int(x) drops the fraction, rounding toward zero, which is what you want for "which cell is the mouse in". A third kind of number appears where the framework meets sound and the GPU. Float is a smaller decimal that audio and GPU hardware prefer. A chapter that reads one, such as an amplitude from the audio analyzer, converts it on arrival with Double(level). Going the other way, Float(x) narrows a Double for a shader.

Functions and their labels

A function is declared with func. Your sketch's helpers sit right on the class, beside setup() and draw():

func drawMeteor(at p: Vector2) {
    ...
}

The distinctive Swift habit is that arguments carry labels, and the labels are part of the function's name. drawMeteor(at:) is called as drawMeteor(at: meteors[i]), and spelling the label wrong, or leaving it off, is an error. The labels let a call read aloud. drawRect(center: p, width: 40, height: 60) says where the anchor is without a trip to the documentation.

An underscore in the declaration removes a label, which is how APIs offer short positional forms. Ollin uses both on purpose. Everyone knows what the three bare numbers in drawCircle(x, y, radius) mean, so labels there would add nothing. The Vector2 form names its anchor instead: drawCircle(center: p, radius: r).

Arguments can also carry defaults, and callers mention only what they want to change. That's why cameraShowcase(radius: 5) is a complete call, though the function takes many more arguments. Everything you leave out keeps its default.

Choosing and repeating

if needs no parentheses around the condition, and the braces are required:

if meteors[i].x > width {
    meteors[i] = Vector2(-30, random(height))
}

The compact one-line choice is the ternary, condition ? whenTrue : whenFalse. The chapters use it for small pick-one-of-two moments, like fill(random() < 0.12 ? accent : ink).

Counted loops run over ranges. 0..<n is "0 up to but not including n", the everyday case, while 0...n includes n:

for i in 0..<meteors.count { ... }   // i is an Int
for _ in 0..<60 { ... }              // don't need the counter? _ discards it

There's no C-style for (;;). When a loop should run until something changes rather than a set number of times, while repeats for as long as its condition holds.

Arrays

An array is written [Element] and keeps its order. These are the operations a sketch uses most, and the lists table below has the rest:

var trail: [Vector2] = []
trail.append(p)                 // add to the end
trail.count                     // how many
trail[0]                        // index (crashes past the end)
trail.removeFirst()             // trim, e.g. to cap a trail's length
for p in trail { ... }          // iterate the values directly

Iterating with for p in trail hands you each element. When you also want its index, for (i, p) in trail.enumerated() gives both. Two more calls read clearly once the closures section below explains the { }. map builds a new array by transforming every element, and filter keeps the elements that pass a test.

let xs = trail.map { $0.x }                  // every x coordinate
let low = trail.filter { $0.y > 400 }        // only the low points

Classes and structs, or who copies

A sketch is a class:

final class Meteors: Sketch {
    var meteors: [Vector2] = []
    ...
}

Read the first line this way. Meteors is a new class built on Sketch, the framework's base class. final says no other class will build on this one in turn, which is the usual choice for a sketch. Properties declared at the top of the class, like meteors, are the sketch's memory, because they persist across frames. A let inside draw() is made and thrown away within one frame.

override marks a method that replaces one the base class already defines: setup(), draw(), mousePressed(), and the other methods Ollin calls. The compiler checks it. The same word marks a property the base class defines, as override var canvasSize: CanvasSize { .size(800, 600) } does, and the sketch's value wins. Misspell draw as darw and the compiler says there's nothing to override. Without that check, the misspelled method would never be called, and nothing would say why. Your own helpers, like drawMeteor(at:), take no override.

self is the current instance, and Swift almost never makes you write it. Inside the class, meteors means self.meteors.

The deeper split behind the keyword is who copies. Swift types come in two kinds:

• Structs are values. Assigning one, or passing it to a function, copies it, and the copy and the original then change separately. Vector2, Color, Rectangle, and Shape are structs. So a function you hand a position to works on its own copy, and yours stays as it was.
• Classes are references. Assigning one shares it, so both names point at the same object. The things in Ollin that keep changing state are classes: the physics World and its particles, the trackers, and your sketch itself. Chapter 11 leans on this when a Particle added to the world and kept in your own array is one object seen from two places.

let on a class instance means the reference can't be reassigned, but the object it points to can still change. So let world = World() still accepts world.gravity = … later. Some Ollin structs work the other way, because their properties are read-only. Vector2 is one. Instead of assigning into p.x, you build a changed copy, with arithmetic (p + Vector2(2.3, 0)) or with a helper like p.with(x: 0).

Closures: functions as values

A closure is an unnamed function written inline, { }. When it's the last argument to a call, Swift lets it trail outside the parentheses, and that syntax is all over Ollin:

withState {
    translate(width / 2, height / 2)
    rotate(time)
    drawRect(-50, -50, 100, 100)
}   // the transform changes end with the block

withState { } is an ordinary function call, and the block is the argument. The same shape scopes layers (layer { }), fields, and feedback later in the guide. Inside a closure, $0, $1, … name the arguments when you don't want to name them yourself. That keeps one-liners like .map { $0.x } short. The longhand .map { p in p.x } means the same thing.

Closures can see the variables around them, which is why a layer { } block can read your sketch's properties without passing them in.

Optionals: maybe a value, maybe nothing

Swift writes "might be missing" into the type itself. A Color? is either a Color or nil. The compiler won't let you use it as a plain Color until you've said what happens when it's missing. Optionals appear wherever an answer can be missing, such as a file that isn't there or a hex string that doesn't parse.

Here are the four tools the guide uses most, in the order it meets them:

// if let unwraps for a block
if let image = try? loadImage("texture.png") {
    drawImage(image, 0, 0)
}

// guard let unwraps or leaves early, keeping the happy path unindented
guard let source else { return }

// ?? provides a fallback
let font = OutlineFont(name: "Zapfino") ?? .systemMedium

// ?. calls through only when the value is there
let mesh = (try? loadMesh("model.obj"))?.normalized(scale: 3)

nil can't get into a value that isn't optional. So a sketch doesn't crash four functions later on a value that was missing all along.

Enums and the leading dot

Where p5 and many C-family APIs use string or integer constants, Swift APIs use enums, which are closed lists of typed cases. You've been reading them all along in calls like strokeCap(.round) and drawArc(..., mode: .pie). The leading dot is shorthand for a name on the type Swift expects there, so .pie means ArcMode.pie. The same dot reaches a named value on a struct, which is why background(.white) means Color.white.

Because the list is closed and typed, a misspelled case is a compile error. An editor that reads Swift, such as Xcode, can also offer the complete list at the cursor.

Property wrappers: properties with machinery

A word like @Param before a property attaches machinery to it. The property still reads and writes normally, and the wrapper adds behavior around it.

The guide uses five, all from Ollin:

@Param("Size", 8...80) var size = 38.0                        // a parameter in the inspector
@Eased(duration: 0.9, curve: .easeOutElastic) var x = 540.0   // glides toward what you assign
@Sprung(duration: 0.5, bounce: 0.3) var y = 540.0             // springs toward what you assign
@Smoothed var level = 0.0                                     // calms a jittery incoming value
@Saved var visits = 0                                         // kept when the sketch restarts

@Param shows the property as a live control in the host's inspector, which Chapter 1 sets up. Later chapters bind MIDI knobs and OSC faders to the same properties. A binding spells the property $size when it wants the parameter itself rather than its current value. Chapter 3 teaches @Eased and @Sprung, and Chapter 38 teaches @Smoothed. All three change when the value moves, not what it is. @Saved keeps a value when the sketch starts again. Chapter 43 uses it to carry state across a live-coding edit, and Chapter 45 to carry an installation across a relaunch. You won't write your own wrappers in this guide, and recognizing the @ is enough.

Strings, briefly

\( ) interpolates any value into a string, which covers nearly every string a sketch builds:

drawText("frame \(frameCount)", 40, 40)

Triple quotes make a multiline string, verbatim, line breaks and all. Chapter 8 first uses one for a passage of text. From Chapter 18 on, a shader's Metal source sits inside your Swift file as one """ literal.

Swift you'll see in listings

The sections above cover the Swift a sketch uses on almost every page. As the sketches grow, the chapters reach for more of the language. Most new pieces get a short Swift note or a sentence where they first appear. This section gathers them in one place, grouped by what they do. Each row links to the chapter section where the piece first appears, so you can see it at work.

Numbers, names, and operators

Beyond +, -, *, and /, the listings use a few more operators. The comparisons ==, !=, <, <=, >, and >= answer true or false. Then ! reverses an answer, && asks for both of two answers, and || for either of them.

Loops and choices

The section on choosing and repeating covers if, the ternary, counted for loops, and while. The listings add these.

Lists, pairs, and tables

Arrays hold most of a sketch's data. The chapters use a few more of their calls, and three other ways to hold several values: tuples, dictionaries, and sets.

More about optionals

The section on optionals shows the four tools the guide uses most. These are the rest.

Functions and closures

Types of your own

Failures, files, and waiting

A call that can fail is marked throws where it is declared, and every call to it is written with try. The listings write try in a few forms, and use a few names from Apple's own libraries.

Comments and attributes

What the guide never needed

Swift is a big language, and a working sketch uses a small part of it. The guide never asks you to declare a protocol or an enum whose cases carry values. It doesn't ask you to write a property wrapper or an async function of your own either. When you want the rest, The Swift Programming Language is Apple's book on the language, free to read online.

If a chapter's Swift still stops you, that's a bug in this guide, not in you. The same issue tracker that takes confusing math takes confusing Swift.

Go deeper

• The Swift quick reference: this appendix compressed to one page, for looking things up mid-sketch.
• Appendix C: the p5.js and Processing dictionary, if that's where you're coming from.
• Chapter 1, Hello, Ollin: the toolchain and first sketch, where the callout versions of these notes begin.
• Examples/: hundreds of small complete sketches, each a Swift file you can read, run, and change.
