Camera control

A 3D sketch sets a camera each frame. Two things a sketch often wants from that camera are tedious to write yourself. One is to let the viewer move the camera by hand. The other is to play a ready-made cinematic move instead of keyframing a path.

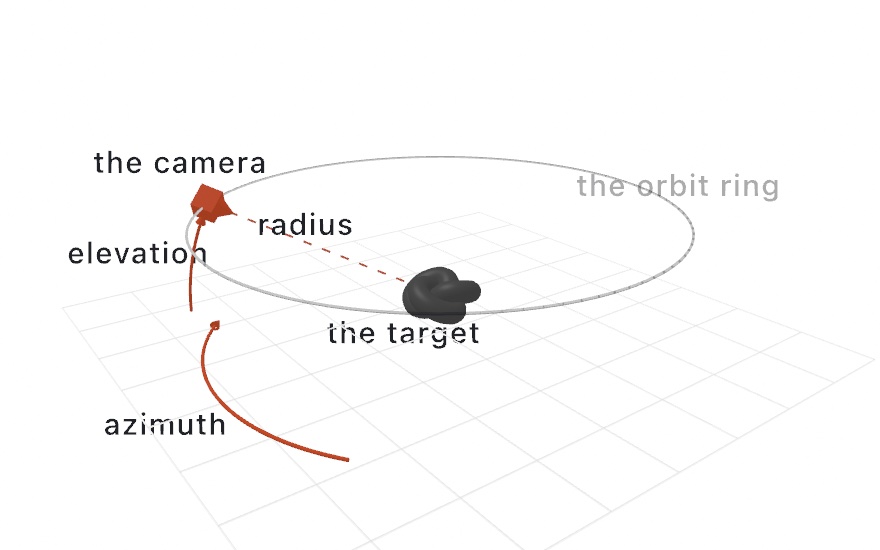

This page covers both. Each is opt-in, and each reuses the orbit pose (Camera3D.orbiting). An orbit suits the kind of scene Ollin draws, which is an object on a turntable that you look at from around it. It is not a camera flown through a space. The object might be a transforming solid, a particle system, or a point cloud.

Most sketches use cameraShowcase(_:), which combines the two. It orbits on its own, and it also lets the viewer grab the camera and explore. When the viewer stops, it eases back to the sketch's shot.

Each is a single call you make in draw(), like camera(...). A sketch that calls neither keeps its own camera untouched. Both write the same pose, so handing off between hand-framing and a move continues smoothly from wherever you left it.

Contents

• Showcase camera - cameraShowcase(_:), the usual default
• Interactive control - cameraControl()
• The input surface it reads - scrollDeltaY, pinchScale, modifiers, mouseScrolled(), rightMouseIsPressed
• Cinematic moves - cameraMove(_:)
• The move catalog - CameraMove
• Opening on an authored camera - the from: forms, which seed the rig from any Camera3D
• Composing: frame, then drift
• Scene inspection views - cameraView(_:) / resetCamera(), the Camera menu
• Orientation axis & ground grid - cameraAxis() / groundGrid(), the live-only viewport aids
• Notes

Showcase camera (the usual default)

cameraShowcase(_:) is the call most 3D sketches want. The camera orbits on its own, and the viewer can take it over at any time. Drag to orbit, scroll to dolly, and right-drag or shift / option-drag to pan. After a period of no input, the camera eases back to the sketch's shot and resumes orbiting. So a sketch keeps moving unattended on a wall or in a gallery, and a viewer can still explore it.

override func draw() {
    background(Color(white: 0.05))
    cameraShowcase(radius: 8, elevation: 0.4)   // a gentle auto-orbit you can grab
    drawTorusKnot(p: 2, q: 3, radius: 1.4, tube: 0.4)
}

It combines the interactive half (cameraControl()) and the cinematic half (cameraMove(_:)). The move plays until you touch the camera. Your input then drives the camera for as long as you keep moving it. After that, the idle return glides back over returnDuration seconds, and the move carries on. The return goes to the sketch's framing (its target / radius / elevation), not to wherever you left the camera. The gestures are the same as in interactive control below.

The motion defaults to .autoOrbit(), which is a slow product-shot turntable. To use a specific motion, pass any CameraMove:

cameraShowcase(.sway(amplitude: 0.4, period: 30), radius: 8, elevation: 0.3)

The target / radius / elevation / fieldOfView arguments frame the shot, and the idle return glides back to it. The first call opens on them. A later call that changes one glides the orbit there over about half a second. So a @Param passed as radius or elevation tunes the window the way an export frames it. While the viewer holds the camera, a change moves only where the idle return goes. Passing the same values every frame changes nothing. The same holds for cameraControl and cameraMove.

Interactive control

cameraControl() hands the camera to the viewer. Drag to orbit the object, scroll or pinch to dolly in and out, and right-drag or shift / option-drag to pan the target. The motion is damped, so it settles smoothly, and a flick keeps a little spin before it comes to rest. It is opt-in, like lights(). Call it in each draw(), and it sets the camera for that frame.

override func draw() {
    background(Color(white: 0.05))
    cameraControl(target: .zero, radius: 9, elevation: 0.35)
    drawBox(size: 2)
}

The target / radius / azimuth / elevation / fieldOfView arguments are the camera's home. The first call opens on them, and resetCamera() goes back to them. A later call that changes one moves the home, and the camera glides there too until the viewer takes it. After that the viewer owns the pose, and only the next reset goes to the new home. Passing the same framing every frame changes nothing, so it does not interfere with the interaction or snap the camera back. The lens has no gesture, so a changed fieldOfView always glides.

The input surface it reads

cameraControl() is built on a small set of input values. You can also read them directly, the same way you read mouseX / mouseIsPressed:

• scrollDeltaY - how far the scroll wheel or a two-finger trackpad scroll moved this frame. The value is summed since the last frame, and it is 0 when nothing scrolled. It is a per-frame value, so read it in draw(). A positive value is a scroll up.
• modifiers - the modifier keys currently held, as a ModifierKeys option set (.shift, .option, .command, .control). Test one with if modifiers.contains(.shift) { … }.
• pinchScale - how much two fingers pinching on the trackpad changed the size this frame, as a factor, 1 while nothing pinches. See pinch and turn.
• rightMouseIsPressed - whether the secondary mouse button is held. It is the companion to mouseIsPressed.
• mouseScrolled() - an override hook that is called once per scroll event. Use it for a one-shot discrete step. For a continuous response, poll scrollDeltaY instead.

So a sketch can drive its own zoom or its own modified gesture without using the camera rig at all.

Cinematic moves

cameraMove(_:) plays a named motion on the camera, so you do not keyframe it. Each move is a way to look at an object on a turntable. A move changes the orbit pose around the target, which means the azimuth, the elevation, and the radius.

override func draw() {
    cameraMove(.turntable(period: 12), radius: 6)   // a slow product-shot spin
    drawTorusKnot(p: 2, q: 3, radius: 1.4, tube: 0.4)
}

The target / radius / elevation / fieldOfView arguments frame the shot the move turns around. A later call that changes one glides the shot there while the move keeps playing, and a constant changes nothing. Angles are in radians, which matches the rest of the camera API.

A move's clock starts at zero on the first frame it runs. Frame N of an export shows the move at N / fps seconds, the same moment time reads. So two exports at different frame rates agree wherever their frames fall on the same time.

The move catalog

CameraMove is a value type, and you build one with a static factory. The finite moves ease over a duration and then hold. The cyclic moves run continuously. One move is a hybrid, running continuously along one axis while easing along another.

cameraMove(.orbitAndRise(period: 12, rise: 0.5, in: 6), radius: 7)

Opening on an authored camera

All three calls take a from: form. It frames the shot from any Camera3D instead of from the framing arguments. It fits a loaded scene's authored camera well, so you open on the exact shot composed in the design tool. From there you hand the viewer the orbit, or you let a move drift from it.

cameraControl(from: stage.camera ?? .orbiting(radius: 6))     // the authored view, explorable
cameraShowcase(from: stage.camera ?? .orbiting(radius: 6))    // ...or auto-orbiting from it
cameraMove(.handheld(amount: 0.05), from: stage.camera!)      // ...or breathing on it

The rig decomposes the camera into its orbit pose. The camera's target becomes the pivot, the eye's offset becomes the radius and the angles, and its field of view carries over. An orthographic camera opens the rig flat, and the axis widget's Ortho toggle switches it back to perspective. The orthographic frame height maps to the matching field of view at the target distance, so the shot shows the authored extent. near/far default to the camera's own clip range. Like the framing arguments, the authored pose is the home, and the idle return and .reset glide back to it. A later call with the camera posed elsewhere moves the shot there. Two things do not carry over. The rig orbits y-up, so an authored camera roll is dropped. A camera that looks straight up or down clamps to just off the pole.

Composing: frame, then drift

Because both halves write the same pose, a move composes over the pose it starts from. Switch from one move to another and the new move picks up where the last one left the camera. A move you begin after cameraControl() picks up the pose the viewer framed by hand. So to frame the shot and then let it drift, you make one call after the other:

override func draw() {
    if locked {
        cameraMove(.handheld(amount: 0.05))   // gentle life, from the framed pose
    } else {
        cameraControl()                        // frame it by hand
    }
    drawScene()
}

Scene inspection views

While you build a 3D scene, it helps to look at it from a known angle, the way a modeling tool's numpad snaps the viewport. cameraView(_:) does the same thing in a sketch. It glides the camera to a canonical orientation, and then it hands the pose back to whatever motion was running.

cameraView(.front)                  // look straight down +Z
cameraView(.isometric)              // the three-quarter, all three axes at once
resetCamera()                       // back to the sketch's framing
cameraView(.top, animated: false)   // cut instantly instead of gliding

The views:

• .reset returns to the sketch's framing (its center, distance, and angle). That is the shot the latest cameraShowcase / cameraControl / cameraMove call passed. resetCamera() is a shorthand for it.
• .front / .back / .left / .right / .top / .bottom look straight down each axis. Each one flattens the scene to two axes. They keep the current center and distance, and they only swing the orbit angle.
• .isometric is the three-quarter view: 45° around, and tilted so that the three axes foreshorten equally. It is the one angle that shows all three axes at once. Pair it with the axis widget's Ortho toggle for a textbook isometric look.

By default the camera glides over duration seconds, reusing the rig's eased return. Pass animated: false to cut instead. A snap works together with the rig, so after the glide the rig resumes its motion from the snapped pose. That covers cameraShowcase, cameraControl, and cameraMove. A sketch that drives the camera by hand with camera(...) overrides the pose every frame, so a snap has no effect there. A 2D sketch ignores a snap.

From the menu. The host apps have a Camera menu with the same snaps and keyboard shortcuts. So you can orbit by hand and snap back without the sketch wiring anything. Reset View is ⌘0, Front ⌘1, Back ⌘2, Right ⌘3, Left ⌘4, Top ⌘5, Bottom ⌘6, and Isometric ⌘7. The menu drives whatever 3D sketch is running, whether in a standalone example run, in the examples gallery, or in OllinLive.

Orientation axis & ground grid

Two aids help you stay oriented while you build a 3D scene. Both are live-only host chrome, which means they draw in the preview window but never in an export. Both do nothing in a 2D sketch, because a 2D sketch has no camera to orient to.

cameraAxis()    // the interactive orientation widget, bottom-center
groundGrid()    // a faint reference floor at y = 0

cameraAxis() shows a small XYZ indicator that turns with the camera, so you can read which way the scene faces as it orbits. The widget is interactive. Click an axis to snap the view down it, which gives the same snaps as cameraView. Its buttons reset the view, frame the isometric angle, and toggle between perspective and orthographic projection. That last button is the Ortho toggle, and its orthographic look pairs with .isometric.

groundGrid() draws a faint grid on the y = 0 plane the scene sits on, so you can read scale and placement. The grid subdivides with the camera and fades toward the horizon, and the X and Z world axes are marked in red and blue. Finer lines fade in as you dolly closer, and coarser lines fade in as you pull back.

Both are read live each frame. So you can set them once in setup() for a fixed choice, or you can flip them in draw(), for example on a key press. The host apps also expose them as Camera menu toggles, Show Axis and Show Ground Grid. So you can turn them on for any running sketch without editing it.

Notes

• Call it in draw(), every frame. cameraShowcase(_:), cameraControl(), and cameraMove(_:) all set the camera for the current frame only. That is the same lifetime as camera(.orbiting(...)). The camera is per-frame state that is reset each frame, so a single call in setup() does nothing.
• The 3D examples use cameraShowcase by default. Almost every sketch under Examples/3D/ orbits through it. So each one is a self-running shot, and you can also grab it and explore. It is the recommended default for a new orbiting sketch.
• Reading where the camera ended up. When an interactive rig owns the pose, activeCamera returns the Camera3D that was set this frame. That gives you its eye, target, and the rest. In a 2D frame it returns nil. Use it when a sketch places geometry relative to the camera. basis hands back the three axes that pose points along, as (right, up, back) unit vectors, which is what puts a sprite or a label in the camera's own frame. horizontalFieldOfView(aspect:convergence:) answers how wide the shot is in radians, which is what a spatial export or a player asks for; an orthographic camera has no lens angle, so it reports the angle its frame would subtend from convergence away.
• Object-centric by design. The pose is always an orbit around a centered target. So there is no way to walk the camera through a scene. A move or a drag changes the angle, the height, and the distance you view the object from. To recenter on a different object, pan interactively, or set a new target on the first framing call.
• The shared timeline. The finite moves are built on Timeline, the small sequencing type documented under Animation. Timeline is public, so a sketch can sequence any value the same way.
