Local averages

Sketches often need to know what the neighborhood around a pixel looks like. There are two ways to answer that, an expensive one and a cheap one. The expensive answer reads every pixel in the neighborhood, so a wide neighborhood costs more than a narrow one. The cheap answer builds one table first, and then reads any neighborhood, of any size, in four lookups.

That table is a summed-area table, and two filters are built on it. Filter.boxBlur averages the square around each pixel. Filter.adaptiveThreshold cuts each pixel against the average of its own surroundings, rather than against one number for the whole picture.

Contents

• Quick start
• A blur that does not care how wide it is
• A cut that ignores the light
• Choosing the window
• How it works
• What it costs

Quick start

let layer = makeRenderTarget()
withTarget(layer) {
    background(.white)
    fill(.black)
    drawText("a page of notes", 80, 200)
}

// Average the 601-pixel square around every pixel. Four lookups each.
drawImage(layer.filtered(.boxBlur(radius: 300)).image, 0, 0)

// Or cut the page to two tones, each pixel against its own surroundings.
drawImage(layer.filtered(.adaptiveThreshold()).image, 0, 0)

A blur that does not care how wide it is

boxBlur(radius:) replaces every pixel with the average of the square of that radius around it. It is the plainest blur there is, and you pick it for what it costs rather than for how it looks:

layer.filtered(.boxBlur(radius: 4))     // these two
layer.filtered(.boxBlur(radius: 400))   // cost the same

A Gaussian blur looks better, and while the radius stays small it is also faster, so use gaussianBlur there. Use a box blur when the radius is large, or when the radius has to change while a sketch is running and you do not want the frame rate changing with it.

Three box blurs in a row come close enough to a Gaussian that the eye stops telling them apart, and that is still only three passes at the same fixed price:

layer.filtered(.boxBlur(radius: 90))
     .filtered(.boxBlur(radius: 90))
     .filtered(.boxBlur(radius: 90))

A window that hangs over the border averages only the pixels that are really there. It does not count the empty space outside as black, so the edges of the layer keep their brightness.

A cut that ignores the light

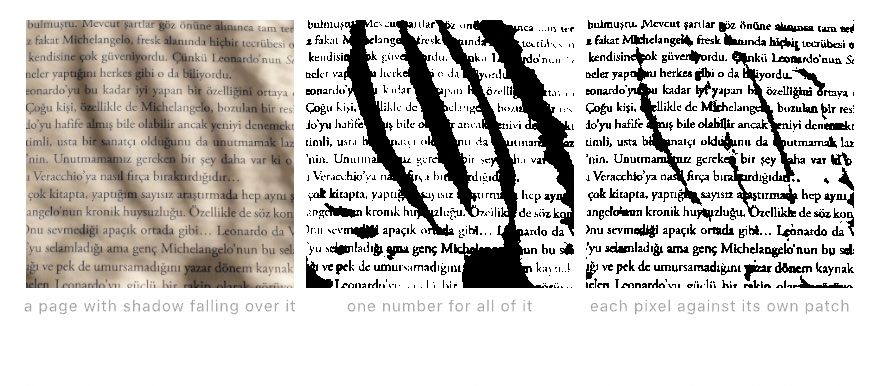

A plain threshold picks one number, then sends every pixel above it to white and every pixel below it to black. On a photograph of a page lit from one side, no single number works, because the number that keeps the shadowed corner floods the lit one.

adaptiveThreshold compares each pixel with the average of its own neighborhood instead (Bradley & Roth, 2007). Hard contrast survives that comparison and a slow change in lighting does not, so both corners come out:

let page = makeRenderTarget()
withTarget(page) { drawImage(photo, 0, 0) }
drawImage(page.filtered(.adaptiveThreshold()).image, 0, 0)

bias is a fraction rather than a distance, and that is what makes the cut survive uneven lighting. Light falling on a page multiplies what comes back off it, and only a test that scales with the average is unchanged by a multiplication. Ollin makes that comparison in linear light, where a change in lighting really is a plain scale.

The two tones carry the layer's own alpha, so a mark drawn on an empty layer is cut to two tones without the empty part turning into a black rectangle.

Choosing the window

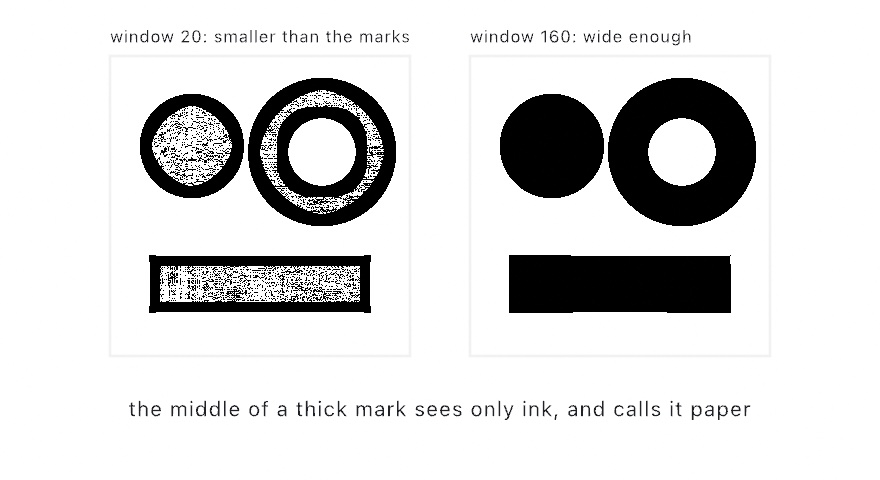

The window has to be large enough to hold both ink and paper. If it is smaller than the marks, the middle of a thick stroke sees nothing but more stroke. The filter takes that as the local paper color, so the stroke comes out hollow:

The window costs the same at any width, and it is bounded on both sides. It has to be wider than the marks, or they hollow out as above. And it has to be narrower than the lighting it should see past: a window wider than a shadow band averages the lit paper around the band, and the band comes out solid ink. On a page of text, one or two line heights sits between the two. The published default of an eighth of the image suits a page lit unevenly across its whole width; a page crossed by shadows wants a window narrower than they are.

How it works

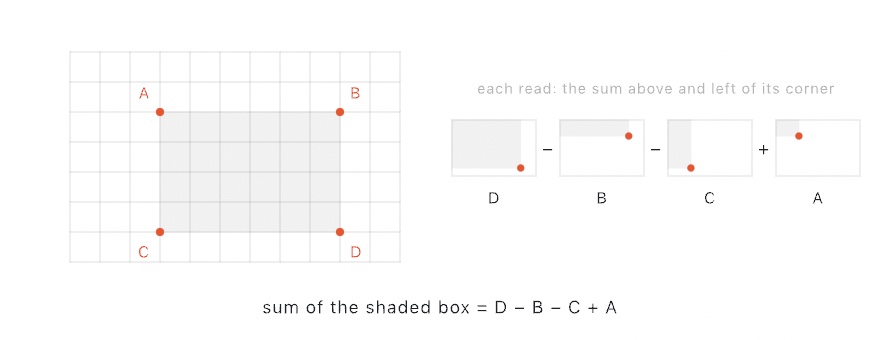

A summed-area table (Crow, 1984) holds one value at every texel: the sum of everything above and to the left of that texel, itself included. Once you have the table, the sum over any rectangle takes two subtractions and an addition:

Divide that sum by the area and you have the average. It is always four lookups.

Ollin builds the table by recursive doubling (Hensley et al., 2005). One pass adds what sits one texel back, the next adds what sits two back, then four, and so on, so a row's whole running total is finished in about eleven passes rather than a thousand. The same run of passes then works down the columns. Ollin implements both techniques from those papers and credits them in ATTRIBUTION.md.

What it costs

The table costs you two things, and neither of them grows with the window.

Time. Building the table takes about twenty passes over the layer, which is roughly 6 ms of GPU time for a 1080 square. One of these in a frame is comfortable. A dozen are not.

Precision. This is the structure's one real weakness, and it helps to know which way it points. A running total spends most of a float's mantissa on itself, so a box sum is a difference between two large numbers and carries a small absolute error. You see that error divided by the area you asked for, so it falls away as the window grows. On a 1080 square that error is about 7/255 in the worst corner of a 3-pixel window, and under 1.5/255 from 37 pixels up. The narrow end is the weak end, and that is the end where you would use a Gaussian anyway.

See also Effects for the layers and filters this is built on. Measured distance fields answers the other question you can ask of every pixel of a layer at once, and Images covers getting a photograph into a layer in the first place.
