Physics

Physics lets motion come from a simulation instead of from hand-tuned numbers. The physics code lives in a separate library, so the drawing core does not carry it. To use it, add import OllinPhysics beside import Ollin.

The model is lightweight and made for creative work. It is not a game engine. A World holds Particles (point masses) and the Springs between them. You set the global rules (gravity, an optional container, whether particles collide), and then you step the world once a frame. The model is tuned for motion that looks right rather than for exact physical accuracy. A few hundred springs and constraints is its comfortable range. Plain colliding disks go further than that, because the broad phase below scales to thousands.

The same World also holds a second kind of body. On the soft side, Particle and Spring form a Verlet solver, which is good at cloth, chains, and soft blobs. On the rigid side, a Body is a rigid body. It has an orientation, it rotates, it rests in stable stacks, and it links to other bodies with joints. That covers the cases the soft model cannot handle, such as a toppling tower or a swinging pendulum. The rigid side is backed by Box2D. Both sides share the world's gravity, walls, and per-frame advance(by:), so you can use either one or both. Skip ahead to Rigid bodies if that is what you need. This page covers the 2D world. Rigid bodies inside the 3D scene have their own World3D.

The usual pattern is to build the world once in setup(). Then, in draw(), you call advance(by:) and draw from its particles.

import Ollin
import OllinPhysics

final class Drops: Sketch {
    let world = World()

    override func setup() {
        world.bounds = Rectangle(x: 0, y: 0, width: width, height: height)
        world.particlesCollide = true
        for _ in 0 ..< 200 {
            world.addParticle(at: Vector2(random(width), random(height * 0.3)),
                              radius: 14 * scale)
        }
    }

    override func draw() {
        background(.black)
        world.advance(by: deltaTime)
        fill(.white)
        for p in world.particles {
            drawCircle(center: p.position, radius: p.radius)
        }
    }
}

Gravity pulls the discs down, the walls stop them, and particlesCollide keeps them from overlapping, so they pile up.

Contents

• World - the simulation, its bodies, rules, and the per-frame advance(by:)
• Particle - a point mass, with position, velocity, mass, and pinning
• Spring - a distance link between two particles (cloth, chains, soft bodies)
• Rigid bodies - Body, colliders, surface properties, and joints (the Box2D side)
• How the solver works - Verlet integration and relaxation, in one paragraph
• Soft bodies - a squishy body from any outline, in one call

World

let world = World()

A World is the container for everything. You add particles and springs to it, set its rules, and call advance(by:) each frame.

Building it

@discardableResult
func addParticle(at position: Vector2, radius: Double = 0, mass: Double = 1) -> Particle
@discardableResult
func connect(_ a: Particle, _ b: Particle, length: Double? = nil, stiffness: Double = 1) -> Spring
func remove(_ spring: Spring)
func remove(_ particle: Particle)
func remove(_ body: Body)
func removeAll()

var particles: [Particle] { get }
var springs: [Spring] { get }

A soft body made from an outline has its own addSoftBody(from:), remove(_:), and softBodies.

remove(_ body:) takes one rigid body out along with any joints holding it. The Body value is spent afterwards, so read anything you still need from it (its velocity, its angle) before the call and drop your reference to it after: a shard that inherits the motion of the thing it came from is the everyday case, and that is a read of a body about to leave. See breaking things.

addParticle returns the new Particle, so you can pin it, push it, or connect it to a spring. A radius of 0 (the default) makes a point that does not collide. A positive radius makes the particle collide as a disk. connect links two particles with a Spring. By default the spring's rest length is the distance between the two particles at that moment.

The rules

var gravity: Vector2 = Vector2(0, 980)   // points per second², y-down
var drag: Double = 0.01                  // the share of speed lost per sixtieth of a second, 0…1
var bounds: Rectangle?                   // optional container; nil lets bodies leave
var restitution: Double = 0.5            // how much speed survives a hit, 0…1
var particlesCollide: Bool = false       // push particles apart as solid disks
var iterations: Int = 8                  // relaxation passes per step
var substeps: Int = 1                    // pieces each step is cut into, for a rod or a chain
var maxTimestep: Double = 1.0 / 30       // clamp on dt, for stability

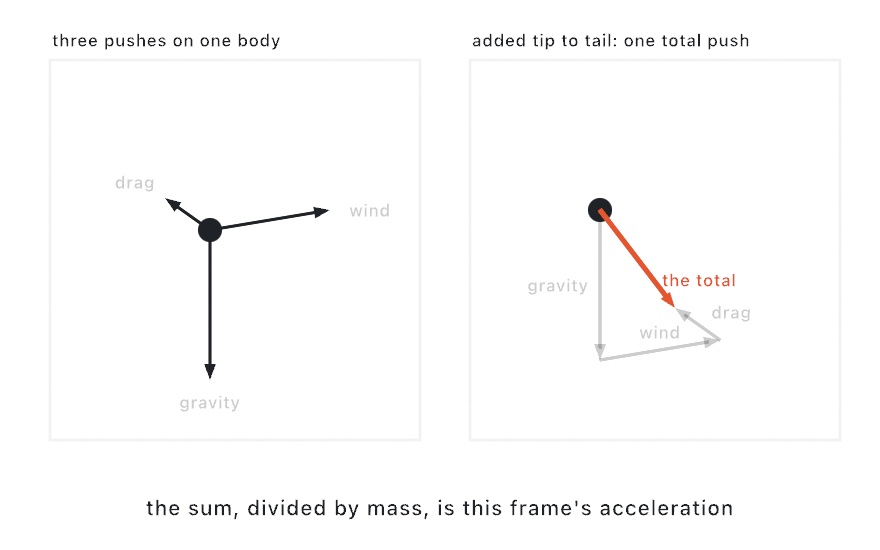

• gravity is a constant acceleration on every unpinned particle. Set it to .zero for a weightless field where everything floats freely.
• drag stands in for air friction. At 0 motion is conserved, so things drift forever. A small value removes energy, so things settle. It is the share of speed lost every sixtieth of a second, whatever the frame rate: the default of 0.01 removes 45% of a particle's speed in a second at 30, 60, or 120 frames a second alike. A rigid Body reads the same number, on its speed and on its spin. Set it at any time, since a change reaches every body already in the world.
• bounds keeps particles inside a rectangle, and it accounts for each particle's radius. restitution then sets how much speed a particle keeps when it hits a wall. At 0 the particle sticks, and at 1 it loses nothing at the wall, though drag still takes its share in flight. It is also what a rigid body gets when addBody names none. A soft body bounces off a wall by its own give instead, so restitution does not reach it.
• particlesCollide turns on disk-against-disk separation. The broad phase runs through a spatial hash, so it scales to thousands of bodies. It is off by default for two reasons. A cloth should not have its own points collide, and the check costs a pass every frame. Turn it on for packings and piles. Points with radius == 0 never collide.
• iterations is how many relaxation passes the solver runs to hold springs and collisions together. More passes make stiff stacks and tight packings firmer, and the cost grows linearly with the count.
• substeps cuts each step into pieces, each integrated and relaxed on its own. A bob on a rod gives back only 70% of its height on its first swing at one piece a frame, because projecting a step onto the rod drops the share of the motion that pointed along it. The loss shrinks in proportion to the count: 98% at sixteen pieces, and at sixty-four the bob holds its height within 5% for ten seconds. The cost grows with the count, so it is for a pendulum or a chain of a few particles rather than a pile.

Stepping

func advance(by dt: Double)

advance(by:) moves the simulation forward by dt seconds. Pass deltaTime. A dt of 0 (a paused frame or the first frame) does nothing. A large dt is clamped to maxTimestep, so a stutter or a window drag does not throw everything off the screen.

Particle

let p = world.addParticle(at: Vector2(540, 200), radius: 24)

A Particle is a point mass. It is the body the world moves. You usually make one with World.addParticle, and then you read its position to draw it.

var position: Vector2          // where it is now
var velocity: Vector2 { get }  // implicit, as a per-step displacement
var radius: Double             // collision radius (0 = a non-colliding point)
var mass: Double               // heavier resists being pushed
var inverseMass: Double        // 1 / mass, the weight a constraint shares a correction by
var acceleration: Vector2      // force gathered for the next step (applyForce is the way in)
var pinned: Bool               // held in place (an anchor)
var userData: Any?             // hang your own data off it

func applyForce(_ force: Vector2)   // accumulate a force for the next step
func push(_ amount: Vector2)        // add to velocity (a per-step displacement)
func place(at point: Vector2)       // teleport without imparting velocity
@discardableResult func pin() -> Particle
@discardableResult func unpin() -> Particle

Motion is Verlet. A particle does not store a velocity. Instead it keeps its previous position, and the velocity is the difference between the two positions. That is why there are two ways to move a particle. place(at:) teleports the particle and moves the previous position with it, so it adds no velocity. push(_:) adds velocity by moving the previous position. To throw a particle, place it and then push it.

p.place(at: Vector2(100, 100))   // set it down, still
p.push(Vector2(8, 0))            // now flick it to the right

pin() anchors a particle, so gravity and springs no longer move it. It still acts on whatever it is connected to. This is how you hang a cloth from its top edge or hold a pivot in place. userData lets you attach a color, an index, or any other per-body state to the particle, so you do not need a parallel array.

Spring

let s = world.connect(a, b)        // holds their current distance
s.stiffness = 0.4                  // gives a little, over a few steps

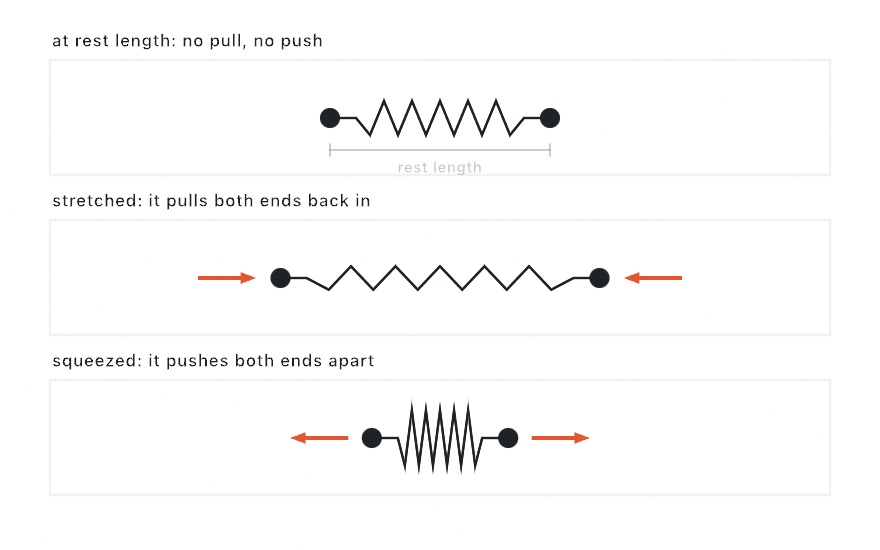

A Spring is a link that tries to hold two particles at a fixed distance from each other. It can stand for a cloth thread, a chain segment, or a soft-body strut.

let a: Particle
let b: Particle
var length: Double         // the rest distance it pulls back to
var stiffness: Double      // 0…1; 1 is a rigid stick, less gives
var strain: Double { get } // signed: 0 at rest, + stretched, − compressed

With stiffness at 1 the link behaves like a rigid stick. A lower value lets the link give and spring back over a few frames. strain reports how far the link is stretched right now, as a signed fraction of its rest length. It is 0 at rest, positive when stretched, and negative when compressed. You can use it to color a cloth by stress.

Rigid bodies

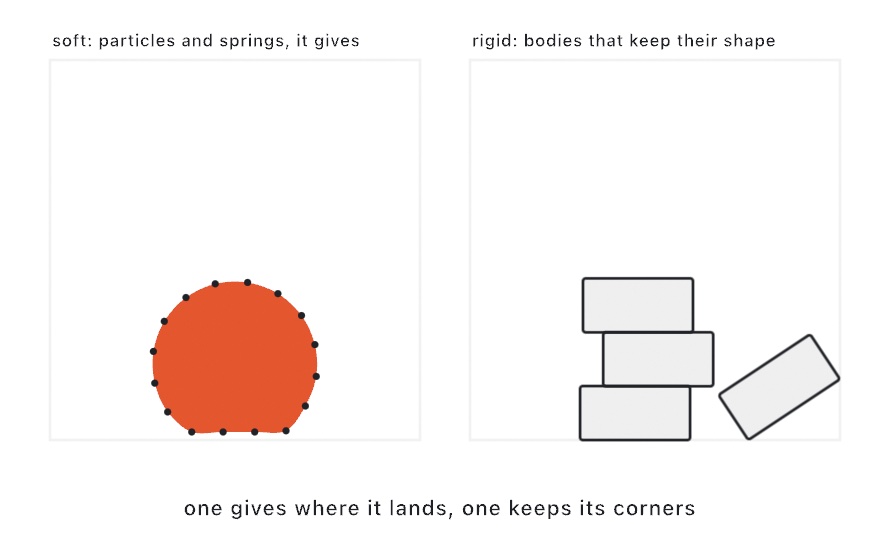

A Particle is a soft point with no orientation. A Body is a rigid body. It has an angle, it spins, it rests in stable stacks, and it bounces off other bodies with a contact response. Use it when the soft model cannot do the job. Examples include a tower of blocks that topples, a hinged chain, and a pile of tumbling shapes. The rigid side is backed by Box2D. Box2D is wrapped behind Ollin's own types, and the rigid side is measured in sketch points.

import Ollin
import OllinPhysics

final class Tower: Sketch {
    let world = World()

    override func setup() {
        world.gravity = Vector2(0, 2600)
        world.bounds = bounds                       // the floor and walls
        for row in 0 ..< 7 {
            world.addBody(.box(width: 100, height: 44),
                          at: Vector2(width / 2, height - 60 - Double(row) * 46))
        }
    }

    override func draw() {
        background(.black)
        world.advance(by: deltaTime)
        fill(.white)
        for body in world.bodies {
            withState {
                translate(body.position)
                rotate(body.angle)                  // real rotation, not a fake spin
                drawRect(center: .zero, width: 100, height: 44)
            }
        }
    }
}

The pattern is the same as for particles. You build the world in setup(), and then in draw() you call advance(by:) and draw from world.bodies. You can keep each body's look, its color and its drawn size, in userData, and then draw it from its position and angle.

A number the solver cannot hold is refused at the bridge. A value that is not a number, an infinity, or a magnitude past a billion units never reaches the solver. A rigid body's position, angle, velocity, or spin set to one keeps what it had. A force or an impulse made of one does nothing. The world's gravity and unitsPerMeter keep theirs, and addBody(at:) given such a position places the body at the origin. Each prints one note naming the call, once per world. The 3D world does the same.

Adding bodies

@discardableResult
func addBody(_ collider: Collider, at position: Vector2,
            kind: Body.Kind = .dynamic, density: Double = 1,
            friction: Double = 0.3, restitution: Double? = nil) -> Body

var bodies: [Body] { get }

• collider is the body's shape (described below). kind is how the body moves. .dynamic (the default) is moved by forces. .static never moves, so use it for walls, the ground, or a hinge anchor. .kinematic moves only by a velocity you set.
• density sets the mass, so heavier bodies push lighter ones. friction is surface grip, from 0 (slippery) to 1 (grippy). restitution is bounciness, 0…1. It defaults to the world's restitution and follows it until the body is given one of its own, here or through body.restitution. The walls carry no bounce of their own, so a body bounces off them with its own value, and two bodies meet with the larger of theirs.

Colliders

enum Collider {
    case circle(radius: Double)
    case box(width: Double, height: Double)
    case capsule(from: Vector2, to: Vector2, radius: Double)   // a rounded stadium
    case polygon([Vector2])                                    // convex, ≤ 8 points
}

Geometry is given in body-local points, centered on the body's origin. The body's position and angle then place it in the world. A .polygon is made convex for you by taking its convex hull, so a concave outline is expanded to that hull rather than rejected. It is brought within the eight-corner limit for you too, by dropping the corner whose own triangle is smallest until eight are left, so an outline with more corners is simulated as a slightly plainer version of itself rather than refused.

The Body

var position: Vector2          // center, in points
var angle: Double              // orientation, radians (clockwise, y-down)
var velocity: Vector2          // points per second (a real velocity)
var angularVelocity: Double    // radians per second
var mass: Double { get }
var restitution: Double        // bounciness; the world's until the body is given one
var kind: Body.Kind            // .dynamic / .static / .kinematic
var userData: Any?

func applyForce(_ force: Vector2)     // steady push (thrust, wind)
func applyImpulse(_ impulse: Vector2) // instant kick (a hit, a launch)
func applyTorque(_ torque: Double)    // spin it, a force in points times an arm in points

A spin fast enough to turn a shape more than a quarter turn between frames can carry a thin shape through another, since contacts are found once a step. The Forces example shows all three calls in one windy yard. It also has a .kinematic sweeper that other bodies cannot stop, and a pinned cloth colored by Spring.strain.

Shared rules and units

The rigid side reads the settings you already made on the world. It takes gravity unchanged and uses bounds as walls. restitution is what a body gets when addBody names none, and drag slows every body's speed and spin by the share a particle loses. A change to either reaches the bodies already in the world, and a change to gravity wakes any that had settled, so a tilt reaches a box resting on the floor. A .kinematic body is never dragged, since it moves only by the velocity it is given. The rigid side also runs on the same advance(by:). One parameter belongs to it alone:

var unitsPerMeter: Double = 100

Box2D works in meters and behaves best for objects roughly 0.1 to 10 m. unitsPerMeter converts between meters and sketch points. The default of 100 puts a 100-point shape at 1 m, which is well inside that range, so you can keep thinking in points. The Verlet particle side works in points directly and ignores this value.

Joints

You can link two bodies with a constraint, or grab one body with the cursor:

@discardableResult
func connect(_ a: Body, _ b: Body, _ kind: JointKind) -> Joint
@discardableResult
func grab(_ body: Body, at point: Vector2) -> Joint

enum JointKind {
    case revolute(at: Vector2)                        // a free hinge at a world point
    case distance(from: Vector2, to: Vector2,
                  length: Double? = nil, stiffness: Double = 1)   // a rod (soft < 1)
    case weld                                          // lock together rigidly
    case prismatic(at: Vector2, axis: Vector2)         // a slider along an axis
}

revolute is the most common joint. Repeat it down a line of links for a rope or a pendulum, and anchor the first link to a .static body to hang it. distance holds two anchors at a fixed distance from each other. Below stiffness: 1 it softens into a spring. grab returns a Joint. You steer the joint by setting its target each frame (for example to the cursor), and you call remove() to let go:

let held = world.grab(body, at: Vector2(mouseX, mouseY))
// each frame while dragging:
held.target = Vector2(mouseX, mouseY)
// to release:
held.remove()

See the RigidBodies and Chain examples for complete sketches. The first is a toppling pyramid knocked into a pile of mixed shapes, and the second is a set of swinging chains you can grab. The Joints example shows the four joint kinds side by side, with one small rig for each. Every rig hangs from a .static anchor, and you can grab each one with the cursor.

How the solver works

Each step first integrates every particle forward. The integration is time-corrected Verlet, so an uneven frame rate does not change how fast things move. drag is scaled by the step for the same reason. The step then runs a few relaxation passes. Each pass pulls springs back toward their length, pushes overlapping disks apart, and keeps everything inside bounds. Every constraint is solved by moving positions, so the velocity follows on its own. A bounce, a spring's recoil, and a collision all only move points, and the implicit Verlet velocity carries the result into the next frame. Many cloth and soft-body demos on the web use the same approach. Particle is the one place where Ollin uses reference semantics instead of value types. That lets a spring or a collision move the same shared point in place.

Soft bodies

A soft body is a squishy thing made from an outline. Hand addSoftBody(from:) any closed Shape, such as a lumpy circle, a star, or a letter, and it puts a ring of particles round the outline. The ring keeps the area it was made with, its corners keep their angle, and it springs back toward its own shape. Other soft bodies cannot get inside it, so a pile of them squashes together instead of overlapping.

let disc = Circle(center: Vector2(540, 300), radius: 120)
let blob = try world.addSoftBody(from: Shape(contours: [disc.contour]))

// each frame:
world.advance(by: deltaTime)
fill(.orange)
drawShape(blob.shape)

The particles go where the shape's points are, so build the shape where the body should start. They are ordinary particles in world.particles, so gravity, drag, bounds, and a sketch's own push(_:) reach them as they reach any other.

Building one

@discardableResult
func addSoftBody(from shape: Shape, mass: Double = 1, spacing: Double = 8,
                 stiffness: Double = 0.8, bend: Double = 0.2,
                 pressure: Double = .infinity, shapeMemory: Double = 0.3) throws -> SoftBody
func remove(_ body: SoftBody)
var softBodies: [SoftBody] { get }

• spacing is the distance between neighboring particles along the outline, in points. Every corner sharper than 30 degrees gets a particle of its own, and each side between two corners is cut evenly, so a star keeps its points and a square its corners. A finer spacing follows a detailed outline more closely. The cost grows with the count.
• stiffness is how hard the outline resists stretching. At 1 it cannot stretch at all. At 0.5 it stretches by about a tenth of its length when it holds its own weight.
• bend is how hard each corner resists folding. Each particle is linked to the particles two and three places along the ring, so a corner keeps its angle. A long straight side can still bow, and shapeMemory is what holds it.
• pressure is how firmly the body holds its area, in gravities. The default, .infinity, holds the area whatever presses on it. A finite value lets the body's own weight press out about 1 / pressure of its area when nothing else holds the shape: on a slack outline (stiffness: 0.5, shapeMemory: 0), 50 gives up 2%, 20 about 5%, and 5 about a seventh. A stiff outline with shape memory keeps its area by keeping its shape, so there pressure changes little. At 0 nothing holds the area, and a slack outline crumples like a loose loop of string.
• shapeMemory is how strongly the body springs back toward its own shape, turned and moved to where the body is now (shape matching). Dropped from its own height onto the floor, a disc squashes by a third of its height at 0, by a tenth at the default 0.3, and by under 4% at 0.9. At 1 the body is rigid.

Each setting is a compliance, an amount of give for a given load, rather than a share of the error fixed on each pass. That is why a setting means the same body at any frame rate and any iterations: a soft disc sagging under its own weight settles to the same height within 2% at 30, 60, 120, and 240 frames a second. More iterations or substeps still bring a stiff body closer to what its settings ask for.

addSoftBody throws PhysicsError.unbuildable for a shape it cannot build from: one with no closed outline that encloses any area, a point that is not a number, or a mass or spacing of zero or less.

Holes and pieces

The shape's fill decides what the body is, read under the shape's own winding rule, so a contour inside another is a hole. A letter "O" makes one body with an open counter. Each ring keeps its own area, so the counter stays open rather than collapsing while the outline shrinks to match, and the rings never cross each other.

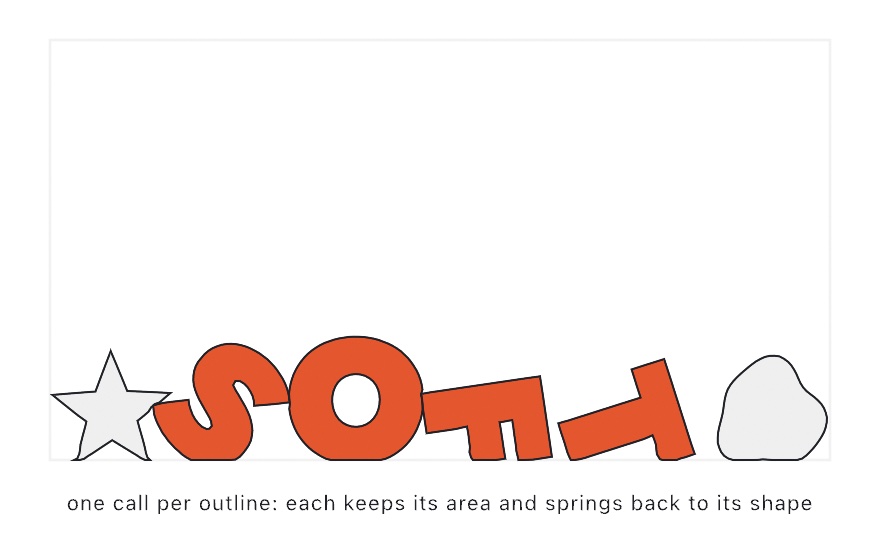

A shape with several separate pieces, such as the dot and the stem of an "i" or a whole word, makes one body whose pieces hold together through shapeMemory. To let each piece go its own way, give each its own body:

for letter in textToShapes("soft", 540, 300) {
    try world.addSoftBody(from: letter)
}

Reading and moving it

var shape: Shape { get }              // the outline now, one contour per ring
var area: Double { get }              // the area now, holes taken out
var restArea: Double                  // the area it holds; set it to inflate
var center: Vector2 { get }           // the average of its particles
var velocity: Vector2 { get }         // their average velocity, per step
let particles: [Particle]             // every particle, ring after ring
let mass: Double
var stiffness: Double                 // the four settings, which can change while it runs
var bend: Double
var pressure: Double
var shapeMemory: Double
var userData: Any?

func contains(_ point: Vector2) -> Bool
func push(_ amount: Vector2)
func applyForce(_ force: Vector2)
func move(by offset: Vector2)

shape has straight edges between particles, which keeps a star's points sharp. For a rounder look, draw each ring as a smooth curve, as drawCurve(blob.shape.contours[0].points, closed: true) does. Set restArea above what the body was made with to inflate it, or below to let the air out; one driven by sin(time) makes a blob that breathes.

push(_:) adds the same velocity to every particle, and applyForce(_:) spreads a force over them so the body as a whole accelerates by force over mass. move(by:) shifts the body without changing its motion. To grab or poke one spot, move its particles, which are in particles.

What touches it

• Other soft bodies, and the separate pieces of one body, never get inside each other. Three bodies piled up sit within a pixel of each other's outlines through the whole fall.
• With particlesCollide on, every loose particle with a positive radius is pushed out of every soft body by its radius. A soft body's own particles have no radius and never collide as disks.
• The walls of bounds hold a soft body's particles by position, and the body bounces by its own give. A weightless blob gliding into a wall comes off at about half its speed at the defaults, whatever restitution says.
• Rigid Bodys pass through soft bodies, and a soft body does not collide with itself. Nothing rubs: there is no friction between soft bodies or against the walls, so a ball dropped on a blob rolls off.

Contacts are the costly part. Each pair of bodies whose boxes overlap checks every particle of one against the other's outline. Nine blobs of about sixty particles each, piled together, step in about 4 ms a frame in a release build.

By hand

addSoftBody is built from particles and position constraints, the same parts as the rest of the world. For a structure no outline describes, link the particles yourself with connect. A ring of particles with springs round the rim and slack spokes to a hub is a blob, and giving the rim particles a radius with particlesCollide on keeps two such blobs apart.

See the Blobs example for a complete sketch, with nine lumpy blobs sloshing under a gravity that swings from side to side.
