Bringing a shader over

A great deal of GLSL is already written and shared. Shadertoy alone holds tens of thousands of fragment shaders, and most of them have the same shape. Each one has a single mainImage function that gets a pixel position and returns a color, and a handful of values arrive each frame.

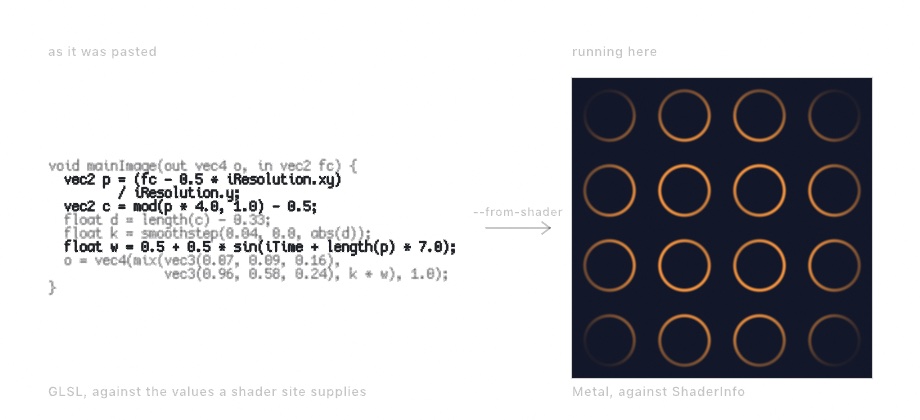

Ollin's own user-shader path is close to that shape already. It asks for shade(uv, info), it works in Metal, and it measures the canvas from the top-left corner. ollin new --from-shader closes the gap between the two, because it translates the shader and writes a project around it.

ollin new Plasma --from-shader plasma.glsl

You get a folder that builds and runs, with the translated shader in imported.metal beside the sketch:

Plasma/
  Package.swift
  Sources/Plasma/Sketch.swift
  Sources/Plasma/imported.metal

The shader is source you now own, so edit it and keep what works. Under OllinLive a saved .metal file reloads on its own, with no Swift build in between.

Where the shader comes from

There are three ways to hand the code over, and they all do the same thing once it arrives.

ollin new Plasma --from-shader plasma.glsl        # a file
pbpaste | ollin new Plasma --from-shader -        # what you just copied
ollin new Plasma --from-shader https://www.shadertoy.com/view/XXXXXX

The last one needs a key of your own. That is because the site serves shaders through its published interface, not through the page you are looking at:

export SHADERTOY_API_KEY=yourkey     # ask for one in your profile on the site

Two limits apply to that route. The site only serves a shader marked public and shared through the API, so plenty of shaders will not come back. Only the image pass arrives, so a shader built on several buffers needs the rest by hand.

Without a key, open the shader, copy the code, and pass a file. You lose nothing that way.

Licenses

A shader belongs to whoever wrote it. Shadertoy's default license is CC BY-NC-SA 3.0. Many authors set their own terms in a comment at the top of the code.

So the translated file keeps a header that names the shader, its author, and the address it came from. The header also says plainly that the terms travel with the code. Leave that header where it is, and read the terms before you publish.

Ollin bundles none of this code. The command translates what you hand it.

What the sketch looks like

The number of inputs the shader reads decides what it becomes, which is the same rule the user-shader path already uses.

A shader that reads nothing is a generator:

override func draw() {
    drawImage(generate(imported).image, 0, 0)
}

A shader that reads iChannel0 is a filter over a layer, and the sketch draws something into that layer for the filter to work on. A shader that reads two channels is a combine over a pair of layers. What gets drawn into those layers is ordinary sketch code. The command writes it out in full, so it is the obvious first thing to change.

What is translated

Most of the work is a rename. The file keeps your spacing, your blank lines, and your comments, so the result reads like the shader you pasted.

Three of these rules need more than a table row, because they change what you see rather than whether the shader builds.

mod is not fmod. GLSL takes the floor of the quotient and Metal truncates it, so the two disagree whenever either side is negative. That case comes up early, because this kind of shader often starts by tiling a plane that reaches left of or below the origin. So the translation writes the flooring form out rather than calling the built-in. On a plain tiled ramp, the difference covers over half the canvas.

The vertical axis turns over. A texture is measured from its bottom edge, and an Ollin layer from its top. A layer read therefore flips the coordinate on the way in. Without that flip, every imported filter arrives upside down.

The values the site supplies are globals, and Metal has none. Any function may read iTime, so info travels as a parameter instead. It reaches only the functions that read one of those values and the functions that call those. Helpers that do arithmetic alone, such as the distance functions and the noise, stay untouched.

What is not

Whatever cannot be carried over is written into the file as a comment. A NOTE(ollin) marks something that was translated but that you should know about. A TODO(ollin) marks something left for you, and the shader will not compile until you deal with it. The command prints the same list before it writes anything.

These are the ones you will meet most often:

• Several passes. Only the image pass comes over. A shader built on Buffer A through D needs those buffers wired up as layers by hand.
• More than two inputs. An imported shader reads at most two layers.
• A texture the shader declares itself. Draw into a render target and pass it in as a layer.
• A variable at file scope the shader writes to. Metal has nowhere to put one. Make it constant if it never changes, or make it a local and pass it along.
• texelFetch. A layer read takes a fraction, not a whole-number texel position. Divide by the resolution and sample.
• iDate and iSampleRate. Only the seconds field of the date carries a value. The sample rate is a fixed 44100, because this pass draws rather than making sound.
• The mouse button. iMouse reports its position in both halves, because Ollin does not keep the place of the last click. Read mouseIsPressed in the sketch and pass it in as a parameter.
• A 4x4 matrix inverse. The 2x2 and 3x3 cases are supplied, and you write the 4x4 case yourself.

An older shader written around main with gl_FragCoord and gl_FragColor is reshaped into the same form, so it works too.

Once it runs

The shader is Metal now, so the rest of the framework is open to it. Ollin's shader library is spliced in already. That makes palette, the noise, the hashes and the sd* distance functions all callable. param(info, i) reads values from the sketch, which is how a parameter reaches the shader. The whole layered-effects tier composes around it.

If the shader is small enough to keep in the Swift file, ask for one loose file and the shader travels inline:

ollin new plasma.swift --from-shader plasma.glsl

See also

• Shaders - the contract this translates into, and what ShaderInfo carries
• The shader library - what is callable from inside a shader
• Project generator - the other ways to start a project
• Layered effects - render targets, filters, and combines
