Coupled oscillators

Kuramoto is Kuramoto's model of synchronization. A crowd of oscillators each runs at its own natural pace, and each is pulled toward the phase of the others. Weakly coupled, they drift apart and the crowd is incoherent. Past a critical coupling a locked group forms and grows, and the crowd falls into step. It is the model behind fireflies flashing together, crickets chirping in unison, pacemaker cells, a footbridge swaying under a crowd, and the pendulum clocks Huygens found beating together on one wall. You hold one on the sketch, advance it each frame, and read its phases to draw. It runs on the CPU, and a run is a pure function of its seed and parameters, so an export replays it exactly.

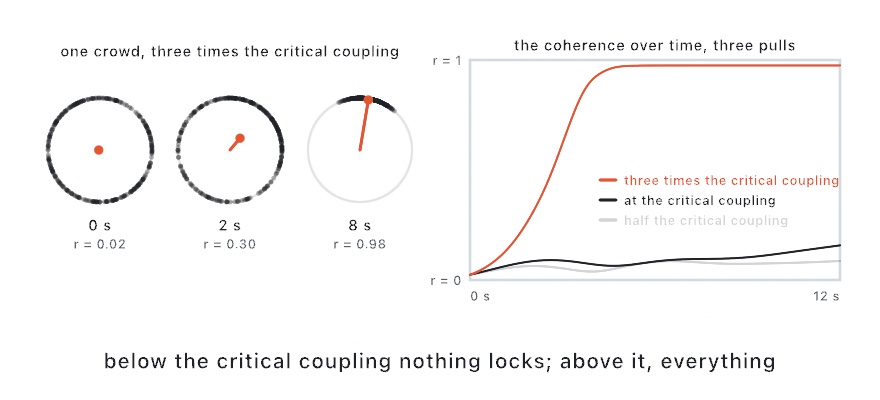

Left, three wheels of small dots on a circle at three moments, the dots scattered around the first, gathering on the second, and bunched together on the third, each wheel with an orange arrow from its center growing longer. Right, three curves of coherence over twelve seconds: one staying near the floor, one wandering low, and one climbing to nearly one

Contents

Quick start

Three hundred fireflies, each glowing by its phase:

let sync = Kuramoto(count: 300, coupling: 2, seed: 7)
var spots: [Vector2] = []

override func setup() {
    spots = (0 ..< 300).map { _ in Vector2(random(width), random(height)) }
}

override func draw() {
    sync.advance()
    background(.black)
    noStroke()
    for (i, phase) in sync.phases.enumerated() {
        fill(Color(white: (1 + cos(phase)) / 2))
        drawCircle(center: spots[i], radius: 6)
    }
}

Watch it for a few seconds. At a coupling of 2 against the default spread, the crowd locks and the dots brighten together. Set the coupling to 0.5 and they never do.

The rule

For an oscillator with natural frequency w, its phase advances at w + coupling * r * sin(meanPhase - phase - lag). Here r and meanPhase are the crowd's own order parameter, described below, so every oscillator is pulled toward the crowd's phase, and harder the more coherent the crowd already is. That is Kuramoto's mean-field form, and it is what makes the model cheap: one pass over the crowd, however large, rather than one over every pair. The integration is fixed substeps of at most 1/240 of a second, so a bigger interval costs more substeps rather than accuracy, and every phase is kept in 0 ..< 2 * .pi.

When an oscillator listens to a list of neighbors instead, on a ring, a lattice, or a graph, the pull is coupling times the average over the list of sin(neighbor - phase - lag). The average is what keeps coupling meaning the same per neighbor whether a site has four neighbors or forty.

Reading the crowd

  • phases is every oscillator's phase in radians. Read it to draw: a firefly glows by (1 + cos(phase)) / 2, a dot sits on a circle at its phase, a pendulum swings by sin(phase). Set an entry to kick one oscillator.
  • coherence is the order parameter r, the length of the mean of every phase's unit vector: 0 when the phases are spread evenly around the circle, 1 when they all agree. It is the measure to watch as a crowd locks.
  • meanPhase is the direction of that mean vector, the phase of the crowd as a whole, which a locked crowd shares.
  • localCoherence is the same measure taken over each oscillator's own neighborhood, one value per oscillator, described below.
  • criticalCoupling is the coupling at which a locked group first forms, for the normal spread of natural frequencies the crowd was made with: spread * sqrt(8 / pi), from Kuramoto's 2 / (pi * g(0)) with g the frequency distribution. Below it the crowd stays scattered however long it runs. A few times above it, the crowd locks nearly whole. Identical oscillators, a spread of 0, lock at any coupling.
  • frequencies is every oscillator's natural pace in radians per second. Set it to hand the crowd a spectrum of your own, two clusters or a chord; criticalCoupling keeps describing the spread the crowd was made with.
  • rates is every oscillator's rate at the last substep, in radians per second: its natural frequency plus the pull in force on it, the number its phase was moved by. It equals frequencies until the first advance. Carry a phase forward by rate * seconds for a motion blur or a trail, so a mark smears along its own path across a shutter interval instead of strobing, or color a dot by how far its rate sits from its natural pace, which is where the crowd is pulling it.
  • neighbors is who pulls on whom, one list of site indices per site, or nil under the mean field. On a ring or a lattice the lists are derived from range; set the property to hand the crowd a graph of your own.
  • count is the number of oscillators, sites the number of sites, which differ only when there are several layers. lattice is the lattice a crowd was laid on, or nil.

Parameters

Kuramoto(count:coupling:frequency:spread:lag:range:seed:) makes a crowd of count oscillators at random phases. Kuramoto(columns:rows:layout:wraps:layers:coupling:frequency:spread:lag:range:layerCoupling:seed:) lays the crowd on a lattice, and Kuramoto(neighbors:layers:coupling:frequency:spread:lag:layerCoupling:seed:) couples it over a graph. The parameters they share:

  • coupling (default 1) is how hard the crowd pulls on each phase, K, in radians per second. Compare it with criticalCoupling after making the crowd. Settable while it runs, which is how a slider takes a crowd across the transition.
  • frequency (default 1) is the center of the natural frequencies in radians per second: 1 is one turn every 2 pi seconds, about six seconds.
  • spread (default 0.5) is the standard deviation of the natural frequencies, in the same units. A wide spread needs a stronger pull; the critical coupling is 1.6 times the spread.
  • lag (default 0) is a phase lag in the pull, in radians. With a lag a locked crowd runs slower than its natural pace, by coupling * sin(lag) when fully locked, and on a ring or a lattice a lag is what makes patterns travel.
  • range is how far an oscillator listens: neighbors each way on a ring, or rings of neighbors on a lattice. 0 is the mean field, where everyone listens to everyone. It defaults to 0 for a crowd made by count and to 1 on a lattice, and it is not read while neighbors holds a graph of your own.
  • seed picks the phases and the frequencies, so the same seed replays the same crowd.

On a ring

With range above 0 each oscillator listens only to that many neighbors each way, the array's order wrapping into a ring, and the pull is averaged over them so coupling means the same per neighbor. A ring locks locally: neighbor pairs agree within a few degrees. The ring as a whole can keep a twist, the phase winding once or several times around it, so coherence stays low even though every neighbor agrees with its neighbor. Add a lag and the locked pattern travels around the ring. Draw the ring as a circle of dots, or as a row, and the twist and the traveling wave are what you see.

On a lattice

A crowd laid out in two dimensions wants each oscillator pulled by the oscillators beside it in space, which neither the mean field nor the ring gives: the mean field locks the whole field as one wherever the oscillators sit, and a ring wired through a row-major array couples along rows only. Kuramoto(columns:rows:) puts the crowd on a lattice, and each oscillator listens to every site within range rings of its own:

var grid: HexGrid { hexGrid(columns: 24, rows: 20) }
let sync = Kuramoto(columns: 24, rows: 20, layout: .hex, coupling: 3, spread: 0.3, range: 1, seed: 7)

override func draw() {
    sync.advance()
    background(.black)
    noStroke()
    for (i, cell) in grid.enumerated() {
        fill(Color(hue: sync.phases[i] / .tau, saturation: 0.7, brightness: 0.9))
        drawPolygon(cell.corners)
    }
}

That is where the visible behavior of the model lives: patches fall into step and drift apart, waves of agreement cross the field, a defect between two patches persists, and with a lag the patterns travel in two dimensions.

  • layout picks the neighborhood. .square(.vonNeumann) (the default) couples the four edge-sharers a ring, a diamond further out; .square(.moore) the eight with the corners, a full block further out, the same two shapes the grid automata take; .hex the six of a honeycomb.
  • Sites are row-major, so site row * columns + column is the cell at that column and row, and lattice.index(column:row:), column(of:), and row(of:) spell it. A hex lattice shares HexGrid's addressing, odd rows shifted half a cell to the right, so the cell hexGrid(columns:rows:)[i] draws is site i, as above.
  • wraps joins the edges into a torus, so every site has the full set of neighbors and a traveling pattern comes back around. A hex lattice wraps cleanly when rows is even; with an odd count the seam between the last row and the first is off by half a cell.
  • range is settable while the crowd runs, and the lists are rebuilt when it changes. At 0 the lattice falls back to the mean field.
  • lattice.neighbors(of:within:) hands back the same lists the crowd uses, in ascending order, for drawing the links or building a graph of your own from them.

The cost is the sum of the list lengths per substep: a thousand sites at one ring is a few thousand sines, nothing a frame notices.

On a graph of your own

Kuramoto(neighbors:) takes one list per site naming the sites that pull on it, as indices into the same array, and the pull is averaged over the list. Any wiring works: a ring with shortcuts, the edges of a Delaunay triangulation over scattered points, a tree, the links of a force layout. The lists need not be symmetric, so a site can listen without being listened to, and a site with an empty list runs at its own pace. Setting neighbors on any crowd hands it a graph too, which it then keeps whatever range says; set it back to nil to return to the ring, the lattice, or the mean field it was made with. An index outside the crowd is a programming error and is reported when the lists are set, not as a bad read in the middle of a frame.

Where the crowd has locked

localCoherence is the order parameter of every oscillator's own neighborhood, itself included: 1 where an oscillator and the oscillators it listens to agree, near 0 where they are scattered. It is what to draw when the question is where the crowd has locked rather than how much of it has. On a lattice a patch in step reads 1 while the seam between two patches out of step reads low, so a field painted by it shows the patches and their borders, and the moment two patches merge. Under the mean field it is the order parameter of the oscillator's whole layer, so every oscillator reads the same number. It is worked out when read, at the cost of one pass over the neighbor lists, so read it once a frame and keep the array.

Several oscillators per site

A crowd can hold several oscillators at each site, layers of them: three plates of color under one dot, a chord of three notes at each cell, the two feet of one walker. Every layer is a copy of the crowd's neighborhoods, so an oscillator is pulled by the same layer on its neighbors, and each layer has a mean field of its own. The layers of one site pull on each other through layerCoupling, averaged over the other layers and with no lag, so a site's layers register while the sites still sync as a crowd, or drift apart when the coupling is 0. Oscillator i is site i / layers, layer i % layers, so the phases of site s are phases[s * layers ..< s * layers + layers]:

let sync = Kuramoto(columns: 10, rows: 38, layout: .hex, layers: 3,
                    coupling: 0.5, spread: 0.25, range: 1, layerCoupling: 0.25, seed: 4)

let site = sync.lattice!.index(column: 4, row: 17)
let red = sync.phases[site * 3], green = sync.phases[site * 3 + 1], blue = sync.phases[site * 3 + 2]

count is then the sites times the layers, sites the sites alone, and coherence reads over every layer at once; localCoherence is per oscillator and so per layer.

Notes

  • The mean field is one pass over the crowd per substep, so thousands of oscillators cost nothing a frame notices; a ring costs range times that, and a lattice or a graph the sum of the list lengths.
  • advance() is one 60 fps frame. Pass a fixed interval for a run that replays, as the default does; a frame's own measured time makes the run depend on the machine.
  • The Kuramoto example is a meadow of fireflies with the phases on a wheel and the order parameter as an arrow from its center, the coupling and the spread on sliders, and a honeycomb the same fireflies sit on when the field is switched to the lattice, painted by where the crowd has locked.
