Anamorphosis: a drawing only a mirror can read

Draw a picture, then spread it across the page so that it says nothing at all. Stand a mirrored cylinder in the middle of it and put your eye in one particular place. The spread-out marks then gather back into the picture, standing upright on the glass.

The correction does not happen in software. The plate on the page is a real drawing, and the reflection does the reading. Painters worked this way in the 1600s, before anybody could compute it, by ruling the construction out by hand.

Anamorphosis is that construction. It takes ordinary geometry, Vector2, Contour, and Shape, and hands back the geometry to draw. You can fill it, stroke it, cut it with the shape booleans, or hatch it. You can also send it to SVG export, so that you can plot the plate and stand a real mirror on it.

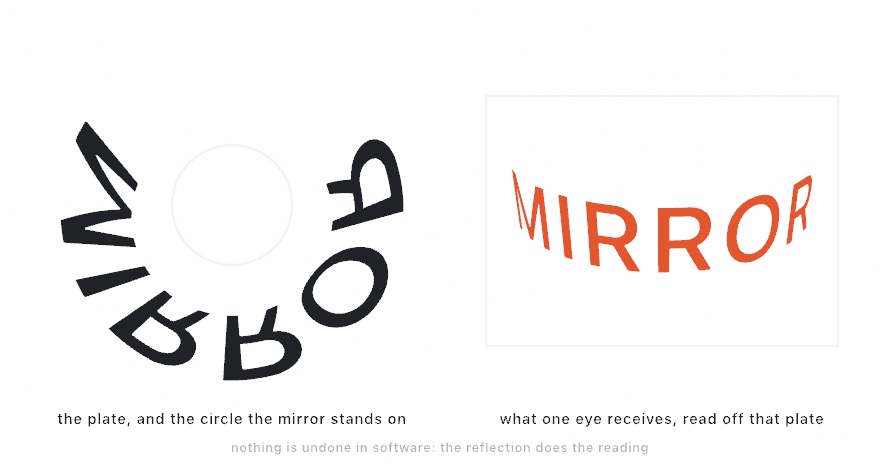

Two panels. On the left, a ring of stretched, reversed letters curling around an empty circle, unreadable. On the right, a panel showing the word MIRROR standing upright and slightly curved, which is what the eye receives from that same ring

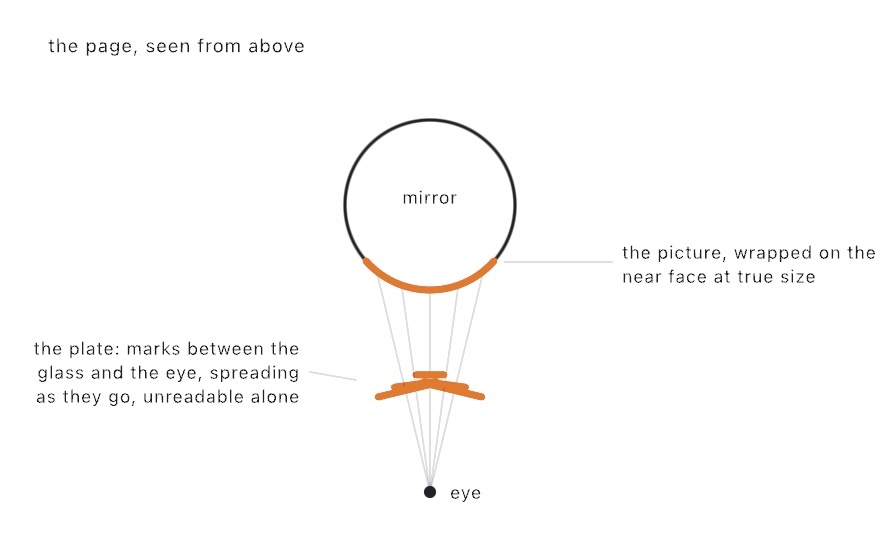

The page seen from above: a circle labeled mirror with an orange band wrapped along its near face, faint sight lines fanning from an eye below it, and orange marks landing on those lines between the glass and the eye, wider toward the edges

The setup
Mapping a picture
What fits
Reading a plate back
Standing a real mirror on it
What it costs

The setup

Four things decide a plate. Each one is a measurement you could take with a ruler.

Anamorphosis(center: Vector2,       // where the mirror stands on the page
             radius: Double,        // the mirror's radius
             eye: Vector3,          // where the viewer's eye is, z measured up from the page
             picture: Rectangle,    // the box the picture is drawn in
             lift: Double = 0,      // how far up the mirror the picture's lower edge sits
             facing: Double? = nil) // which way the picture is wrapped, nil to aim it at the eye

let mirror = Anamorphosis(
    center: Vector2(540, 480), radius: 130,
    eye: Vector3(540, 910, 250),
    picture: Rectangle(center: Vector2(540, 480), width: 280, height: 70),
    lift: 40
)

eye is a Vector3 because the height matters as much as the distance. x and y are the spot the viewer stands on, in the page's own coordinates. z is how high the eye is above the page.

The picture is carried at true size. A picture 280 wide wraps 280 of arc around the mirror, and one 70 tall stands 70 tall on it. Nothing is squeezed before the reflection gets to it. lift raises the whole band up the glass. With no lift the picture sits on the page. Its lower edge then does not move at all, and those marks land exactly on the mirror's own circle. Raising the picture moves the plate away from the glass and stretches it farther out, which is how most finished plates look.

footprint is the circle the mirror stands on. Draw it as a guide while you work. Three more read the setup back: eyeSpot is where the viewer stands on the page alone, eyeDistance how far that is from the mirror's axis, and facingAngle the direction the middle of the picture is wrapped to, which is the angle from the mirror toward the eye when facing was left nil.

Mapping a picture

let plate = mirror.plate(of: emblem)          // Shape   -> Shape
let runs  = mirror.plate(of: outline)         // Contour -> [Contour]
let mark  = mirror.plate(of: Vector2(500, 460))   // Vector2 -> Vector2?

The map bends straight lines, so a contour is walked at an even spacing first and the extra points carry the bend. The default spacing is 3, in page units. Ask for a smaller spacing when the plate will be printed large.

let plate = mirror.plate(of: emblem, spacing: 1)

A single point comes back optional, because not every point of the page can be reached. A contour comes back as an array with one entry per stretch that survives, and a closed contour that survives whole stays closed. A Shape is a region rather than a line, so a contour that only partly survives is dropped rather than opened. A shape with nothing left comes back with no contours at all.

Text is the demonstration most people want, and here it is ordinary geometry:

textSize(130)
let word = textToShapes("OLLIN", at: Vector2(0, 0))
let plate = word.map { mirror.plate(of: $0, spacing: 1.5) }
for shape in plate { drawShape(shape) }

What fits

The eye sees only part of the mirror, and that part is less than half of it. Two tangent lines run from the eye to the cylinder, and everything past them is turned away.

mirror.visibleHalfAngle   // half the arc in view, in radians
mirror.widestPicture      // the widest picture this setup can carry, in page units
mirror.fits               // whether this picture is inside both limits

An eye at an infinite distance sees a quarter turn each way, and standing closer takes some of that away. Check this at the start of the sketch rather than at the end. Moving the viewer closer narrows the arc, so the same word must be written smaller, or the plate must reach farther around to hold it.

The height has a limit too, and it is a harder one. A mark leaves the glass on a bounce that falls as steeply as the ray arrived. A point of the picture level with the eye therefore never comes down at all. A point just under the eye lands a very long way off. Keep the top of the picture under about a third of the eye's height and the plate stays a size you can print. fits refuses anything at or above the eye outright.

Reading a plate back

mirror.picturePoint(of: mark)                    // a mark on the page -> the picture
mirror.mirrorPoint(of: picturePoint)             // where a picture point sits on the glass
mirror.mirrorPoint(of: mark, asSeenBy: eye)      // where a mark is seen from, for any eye

picturePoint(of:) undoes plate(of:), and there is no formula for it. Finding where a ray from the eye bounces to a given spot is the circle problem al-Haytham posed a thousand years ago. That problem has no answer in ordinary algebra, so the bounce is searched for along the arc the eye can see, then sharpened. The answer is exact to about a millionth of a page unit. The search is slow enough to belong in setup() rather than in a per-frame loop.

mirrorPoint(of:asSeenBy:) takes a different eye, which is what you want when you show the work to someone else. Follow every point of the finished plate up to the glass, then project the glass as that viewer sees it. What you draw is what the mirror shows, worked out from the plate rather than from the picture that made it.

Standing a real mirror on it

The measurements are ordinary ones, so the plate prints.

Print at a known scale, and give the page units a real meaning. Treat one unit as one millimeter, and the numbers become the mirror's real radius and the real height of your eye above the table.
Mirrored acrylic tube and steel tube both work. Measure the outside radius, because that is the surface that reflects.
Stand the tube on the footprint circle. Draw the circle and print the plate, then take the circle off the artwork afterward, or print it in a color you can cut away.
The viewing spot is a single spot. A plate cut for an eye 250 above the page reads from 250 above the page. It stays legible for a short distance as you move, and then it stops.

What it costs

The forward map is a few arithmetic steps per point, so mapping a whole picture is cheap and can run every frame. The map back searches instead, so it costs about a thousand times more per point. Work a plate out once, keep it, and redraw the geometry you kept.

Everything here is a pure function of the setup, so the same numbers always produce the same plate.
