Hulls

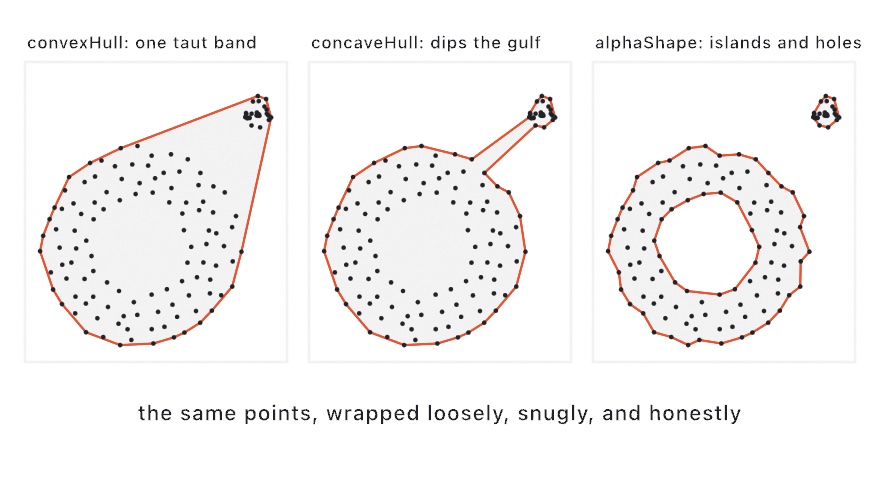

These are three answers to the question "what shape are these points?", each closer to the scatter than the last. The loosest is convexHull, which wraps a rubber band around a scatter. Then concaveHull lets that band sink into the gaps between clusters, and it stays one simple polygon with every point inside. Finally, alphaShape rolls a probe disk over the points and keeps only what the disk cannot pass through. The same scatter can therefore come back as several islands with holes.

In space the question has one answer rather than three: convexHull(of:) takes a cloud of Vector3 and returns the solid around it as a Mesh.

The concave hull is the characteristic-shape construction of Duckham, Kulik, Worboys, and Galton, which is also called the chi-shape. The alpha shape is Edelsbrunner's alpha complex. Both are built from the same Delaunay triangulation that Voronoi diagrams and the spanning tree use.

Both results are ordinary geometry. The hull comes back as points, which you wrap in a Contour or a Shape yourself. The alpha shape comes back as ready Shapes. You can pass either one straight to drawPolygon and drawShape, to the booleans, and to hatching and SVG export.

Contents

• concaveHull
• alphaShape
• Practical notes

concaveHull

concaveHull(of points: [Vector2], concavity: Double = 0.5) -> [Vector2]

This returns one simple polygon that follows the actual outline of the scatter instead of bridging its gaps. Every input point lies inside that polygon or on it. concavity runs 0...1. At 0 you get the convex hull, and at 1 the band hugs the points as tightly as their spacing allows. A value in between moves smoothly from one to the other. The return value is the boundary points in order, the same as for convexHull.

let outline = concaveHull(of: scatter, concavity: 0.7)
noFill()
stroke(.black)
drawPolygon(outline)

Internally, concaveHull erodes the border triangles of the Delaunay triangulation, longest boundary edge first. It removes a triangle only while the polygon stays simple, and that rule is also what keeps every point inside. The parameter interpolates a length threshold between the shortest and the longest edge of the triangulation, so it is scale-free. The same value reads the same on a 400-pixel sketch and on a 4000-pixel export.

alphaShape

alphaShape(of points: [Vector2], alpha: Double) -> [Shape]

This returns the true footprint of the scatter at the scale of a probe disk of radius alpha. The radius is measured in the same units as the points. The function keeps every Delaunay triangle whose circumcircle the probe cannot enter, and the boundary of what remains is the alpha shape. Unlike the hulls, this result can split apart and carry holes. It therefore returns one Shape per island, each with its outer contour first and any hole contours after it, wound even-odd.

for island in alphaShape(of: scatter, alpha: 40) {
    fill(.gray)
    drawShape(island)
}

A small alpha dissolves the scatter into dust, and at the extreme it returns an empty array. A large alpha approaches the convex hull. Start a little above the typical spacing between neighboring points.

Practical notes

• Pick the tool by the question. For one outline that must stay a simple polygon, use concaveHull. That covers a plotter path, a clip region, or a shape to offset. For the honest footprint of a clustered scatter, islands and holes included, use alphaShape. For the loosest wrap, use convexHull.
• concavity near 1 gets tangled. The tightest setting erodes every bridge wider than the closest pair. What you get then reads as a maze rather than an outline. For a band that hugs the clusters, stay around 0.5...0.8.
• alpha is a radius, in point units. Below the local point spacing, the shape crumbles. A couple of spacings gives a snug footprint. The hole in a ring survives as long as alpha stays below the inradius of that hole.
• Both are deterministic given the points. The same scatter and the same parameter give the same output on any run. The cost is the Delaunay build plus near-linear work on top of it, which stays comfortable at tens of thousands of points.
• Erosion only shrinks. Raising concavity never grows the hull, so a parameter sweep animates cleanly from band to wrap. The Shapes/Hulls example shows exactly that sweep.
