Shape packing

Fill a region with any shapes you like. Each shape grows until it touches its neighbors, the way circle packing fills a region with circles. The difference is that packShapes grows each shape until it meets its neighbors' outlines, not just their bounding circles. That is why a small shape settles into the concave gaps left by a star's notches or a triangle's edges. packShapes places the big shapes first, then fills the space between them with progressively smaller ones. Each shape is a random pick from a bag, rotated and scaled to fit.

The output is [Shape], so you can pass it to fills, strokes, the shape booleans, hatching, and SVG export. A run depends only on the seed, so the same seed always gives the same packing.

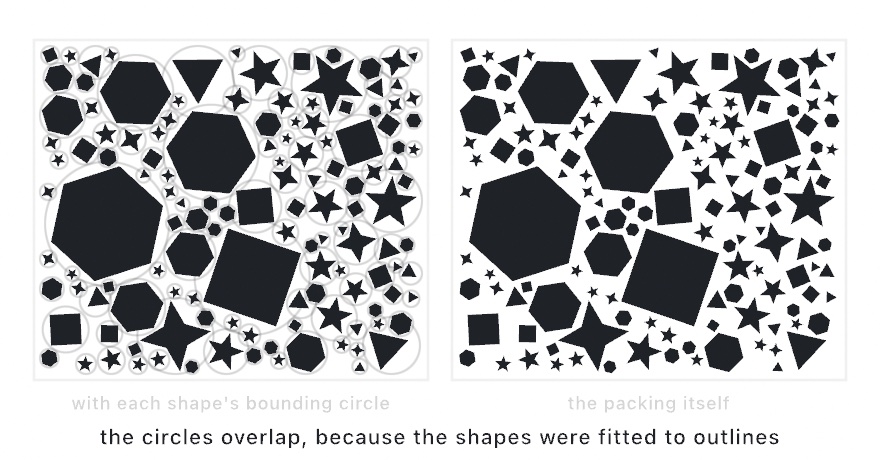

Two panels of the same dense packing of dark triangles, squares, hexagons, and four- and five-pointed stars on cream. The left panel also draws each shape's bounding circle in faint gray, and those circles visibly overlap and cross each other. The right panel shows the shapes alone, with small stars tucked into the notches of larger shapes

Contents

packShapes

packShapes(_ shapes: [Shape], in bounds: Rectangle? = nil,
           count: Int, minRadius: Double, maxRadius: Double = .infinity,
           padding: Double = 0, rotation: ClosedRange<Double> = 0 ... Double.tau,
           scale: Double = 1) -> [Shape]

Pack up to count shapes into bounds, which is the canvas by default. minRadius is the smallest shape to place, measured by bounding-circle radius, and maxRadius caps the largest. padding opens a gap between shapes. rotation is a range of angles in radians. packShapes turns each shape by a random angle from that range, so 0 ... 0 leaves every shape upright. scale is how much of its bounding circle a shape fills. At 1 the shape touches the circle, and anything less leaves a margin.

seed(4)
let bag = [triangle, square, pentagon, star]
for shape in packShapes(bag, count: 500, minRadius: 6, maxRadius: 120, padding: 4, scale: 0.9) {
    fill(.white); drawShape(shape)
}

Compute the packing once and hold it in a stored property. Then animate something visual, such as each shape's color, so the drawing moves without the shapes jumping.

Continuous packing (animated)

packShapes fills the region in one call. ContinuousPacking runs the same packing, but it stays open across frames. You call step() on it each frame, so the packing fills in over time. Big gaps fill first, so each new shape is smaller than the last. The region therefore grows denser over time, from a few large shapes to a scatter of tiny ones.

ContinuousPacking(shapes: [Shape] = [], in: Rectangle, seed: Int = 0,
                  minRadius: Double, maxRadius: Double, padding: Double = 0,
                  rotation: ClosedRange<Double> = 0 ... Double.tau, scale: Double = 1,
                  attemptsPerStep: Int = 10)

Pair it with accumulation by calling noClear(). A placed shape never moves, so each frame draws only the new shapes. Those are the ones added since the last frame, which you find from the growth in packer.count. The per-frame cost stays flat no matter how full the region gets.

let packer = ContinuousPacking(shapes: bag, in: bounds, seed: 4,
                               minRadius: 3, maxRadius: 130, padding: 4)

override func setup() { noClear() }
override func draw() {
    let start = packer.count
    packer.step()                       // add a few this frame
    for i in start ..< packer.count {   // draw only the new ones
        fill(.white); drawShape(packer.shapes[i])
    }
}

Pass an empty bag to pack plain circles instead, then read packer.circles. See the ShapePacking example.

From a set of points

Use the around: form to place one shape at each of a set of points, which gives you a scatter rather than a dense fill. Each shape's bounding circle grows until it touches the nearest other point, so a blue-noise set makes an even scatter with no overlaps.

seed(7)
let sites = poissonDisk(radius: 60)
for shape in packShapes(bag, around: sites, padding: 4) { fill(.white); drawShape(shape) }

Building the shape bag

Any Shape works, so you decide what goes in the bag. You can use regular polygons, stars, glyphs from textToShapes, and booleans of other shapes. The packing sets each shape's position and size, so build each one at any convenient size around the origin. This function returns a regular polygon or a star:

func polygon(_ sides: Int, star: Bool = false) -> Shape {
    let count = star ? sides * 2 : sides
    let points = (0..<count).map { i -> Vector2 in
        let a = Double(i) / Double(count) * .tau - .pi / 2
        let r = (star && i % 2 == 1) ? 0.46 : 1.0
        return Vector2(cos(a) * r, sin(a) * r)
    }
    return Shape(points, closed: true)
}

let bag = [polygon(3), polygon(4), polygon(6), polygon(5, star: true)]

Related: Circle packing (the round case and its parameters), Blue noise (the even point set the around: form scatters over), and Geometry (the Shape type, and the booleans the output feeds).
