Measured distance fields

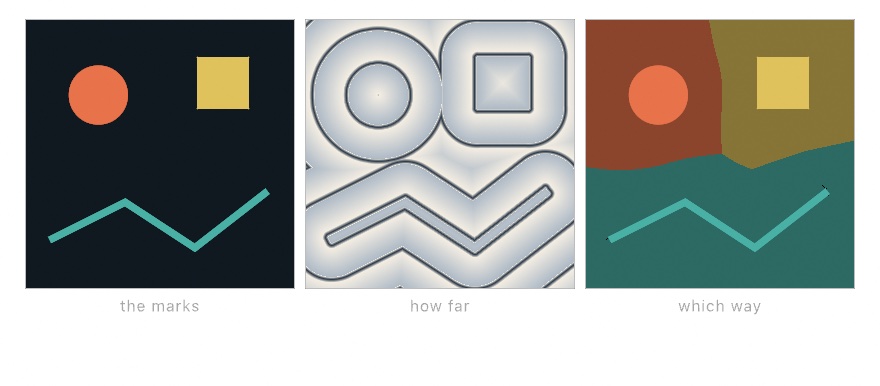

Draw something into a layer, then measure two things at every pixel in it. The first is the distance to the nearest edge, and the second is the direction toward that edge. Filter.distanceField measures both at once, on the GPU, for a whole layer at a time.

This filter is the other half of the SDF combinators. With combinators you write a distance field with arithmetic, then draw the shape it describes. Here you measure a field back out of a picture instead, whatever drew it: a circle, a stroked path, a glyph, a photograph's alpha, or a frame of video. The result is an ordinary layer, so it filters and combines like any other layer.

A measured field turns many effects into one line of arithmetic. You can grow or shrink a shape, outline it at any offset, draw its contour lines, find which shape is nearest, or soften a shadow by distance. Each of those needs to know a distance, and none of them is easy to answer without a field. The layer styles are built on it: an outline, a glow, and a bevel each read this field off the layer they style.

Contents

• Quick start
• What the field holds
• Reading it back as a picture
• Reading it in a shader
• What counts as the shape
• How far to measure
• How it works

Quick start

override func draw() {
    let marks = makeRenderTarget()
    withTarget(marks) {
        noStroke()
        fill(.white)
        drawCircle(width / 2, height / 2, 180)
    }

    let field = marks.filtered(.distanceField())

    // Contour bands, one every 40 pixels out from the edge.
    drawImage(field.filtered(.fieldMap(.viridis, from: 0, to: 40, repeating: true)).image, 0, 0)
}

That is two calls. The first measures the field, and the second reads it back as a picture you can look at.

What the field holds

The measured layer carries numbers rather than a color. Its channels are:

The two answers fit together:

    nearest edge point  =  pixel + direction * abs(distance)

A sketch can therefore work out where the nearest edge is, then read what was drawn at that point. That is why the field keeps the direction as well as the distance. A field that held only the distance would have to be measured a second time as soon as something asked which way.

Distances are in canvas pixels, the same unit drawCircle(x, y, 180) uses.

Reading it back as a picture

Filter.fieldMap turns a measured field into a picture. It maps the signed distance through a color ramp, over a window that you give in pixels.

let field = marks.filtered(.distanceField())

// The field itself: cool inside the shape, warm outside, over 200 pixels either way.
field.filtered(.fieldMap(.turbo, from: -200, to: 200))

// Contour lines: the same ramp repeated every 40 pixels instead of stretched over one span.
field.filtered(.fieldMap(rings, from: 0, to: 40, repeating: true))

You choose both the window and the ramp, so this one call does the work of several separate effects. A ramp that turns over at one distance grows the shape, and a negative distance shrinks it instead:

// Everything within 26 pixels of a mark, filled: the shapes grown, and merged where they meet.
field.filtered(.fieldMap(Ramp([ink, .clear]), from: 26, to: 27.5))

A ramp that is dark in a narrow band draws an outline at the offset you choose. A window one pixel wide keeps that outline smooth-edged rather than jagged.

Reading it in a shader

A user shader reads the field with sampleRaw, which returns the layer's stored values untouched. Use it rather than the ordinary sample, because sample reads a layer as a color and a distance in pixels is not a color.

The shader below builds a Voronoi diagram keyed to a picture. Every pixel steps to its nearest edge and reads the color it finds there, so each mark colors the region that is closer to it than to any other mark:

float4 shade(float2 uv, ShaderInfo info) {
    float4 field = sampleRaw(info, uv);
    float2 here = uv * info.resolution;
    // Step to the edge and a little past it, so the lookup lands in the mark rather than
    // on its soft rim. Signing the overshoot serves both sides: from outside the shape the
    // direction already points inward, and from inside it points out.
    float2 inside = here + field.gb * (abs(field.r) + 4.0 * sign(field.r));
    return sampleAux(info, inside / info.resolution);
}

Run it as a combine, with the field as the base and the drawn marks as the second input:

let cells = field.combined(with: marks, .shader(Shader(nearestMark)))

There is a …Raw reader for both forms. sampleRaw covers the one-input filter form, and sampleAuxRaw covers a combine whose second input is also data.

What counts as the shape

The edge is the place where the layer crosses a threshold. The from parameter chooses which value that threshold cuts:

marks.filtered(.distanceField(from: .alpha, threshold: 0.5))     // the default
marks.filtered(.distanceField(from: .luminance, threshold: 0.4)) // for a layer with no transparency

.alpha is the coverage a shape was drawn with, so use it when the layer holds marks on an empty background. Use .luminance, .red, .green or .blue for a layer that is opaque everywhere, such as a photograph or a frame of video.

The crossing is found between pixels rather than at their centers. Where two neighboring pixels fall on either side of the threshold, the edge sits at the point across that gap where the value would reach the threshold. An antialiased shape is therefore measured to a fraction of a pixel. Growing a shape by 20.5 pixels does put its edge half a pixel outside where growing by 20 puts it.

How far to measure

By default the field is measured everywhere, so every pixel finds its nearest edge however far away it is. Pass maxDistance when you only care about a band:

marks.filtered(.distanceField(maxDistance: 64))

Past that distance the field reads flat and the direction is zero. A zero direction means that nothing is within reach, rather than pointing somewhere untrue.

maxDistance is also the speed control. The measurement costs one pass per doubling of the distance it has to carry, so a shorter distance is genuinely less work. On an M2 at 1080 square, a field measured over the whole canvas costs about 4.9 ms of GPU time, and one capped at 64 pixels costs about 2.9 ms.

Far distances want a single-precision layer. The field is written into a layer of the same precision as the one it measures, and a half-float layer holds a distance between 512 and 1,024 pixels only to the nearest half pixel, and past 1,024 to the nearest whole one. A contour cut far from the shapes then comes out ragged. Draw the marks into makeRenderTarget(precision: .float32) and the field keeps its fraction, as does every filter after it: on a 1080 by 1920 canvas, distances read 1,400 pixels from a dot scatter about 0.1 of a pixel from the true ones in single precision, against 0.29 in half float.

let marks = makeRenderTarget(precision: .float32)   // the field, and the chain after it, in float32

The field crosses to a web page. The page runs the same seed, flood, and resolve, carried to GLSL, over 32-bit float layers of its own, so .fieldMap and the layer styles cross behind it.

How it works

The measurement uses the jump-flooding algorithm (Rong & Tan, 2006), with the extra opening pass of their 1+JFA variant (2007). Every pixel that sits on an edge starts out holding the position of that edge. The layer is then swept a number of times. On each sweep a pixel looks at eight neighbors a fixed step away, and it keeps whichever edge position is nearest to it. The step starts at about half the layer and halves on every sweep down to one, so an edge reaches the far corner in about a dozen sweeps rather than a thousand:

    sweep 1        sweep 2        sweep 3              sweep n
    step 512       step 256       step 128     …       step 1

The result is approximate, because a small number of pixels end up holding an edge slightly farther away than their true nearest one. The published error rate is very low, and the opening pass lowers it further. Ollin's implementation is written from those papers, and it is credited in ATTRIBUTION.md.

See also SDF combinators for the field you write rather than measure, Effects for the layers and filters this is built on, Shaders for the user-shader seam, and Voronoi & Delaunay for the same partition built as vector geometry from points, rather than measured from a picture.
