Spanning tree

spanningTree connects a set of points with the shortest total line work that still reaches every one of them. That shape is the minimum spanning tree, the branching sibling of the single line. When you stipple a picture and span the dots, the tree reads as the picture drawn in veins. Trunks follow the darks, and fine twigs feather into the shading. A tour meanders through the same dots, but the tree branches instead, so the result looks organic rather than maze-like. The technique is the minimum-spanning-tree halftoning of Inoue and Urahama, from the same family as TSP art.

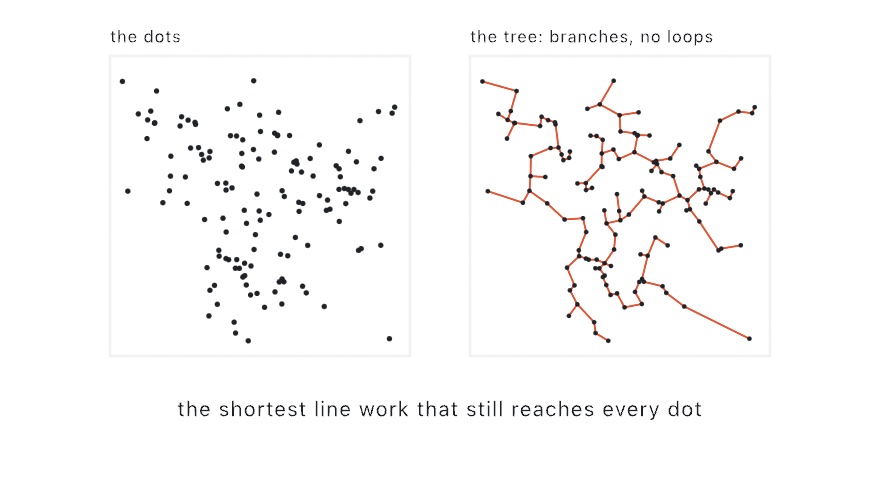

The same clustered dots twice: alone on the left, and joined on the right by an orange minimum spanning tree, trunks where the dots crowd and twigs feathering outward, with no loops anywhere

The result is a handful of open Contour chains, and together they draw every tree edge exactly once. You can pass them to drawPolyline, to hatching and SVG export, and to anything else that takes a polyline. On a plotter, each chain is one pen-down stroke.

Contents

spanningTree (an image)

spanningTree(of image: Image,
             points count: Int,
             in bounds: Rectangle? = nil,
             iterations: Int = 40,
             cutoff: Double = 0.85) -> [Contour]

This is the one-call form. It stipples image with count dots, then joins those dots with the minimum spanning tree. The image is stretched over bounds, which is the whole canvas by default. To keep the image's aspect, pass a Rectangle(fitting:in:) of the image's size. The dots come from the seeded random, so the same seed reproduces the drawing exactly.

let veins = spanningTree(of: picture, points: 4000, in: frame)
noFill()
stroke(.black)
for chain in veins { drawPolyline(chain.points) }

cutoff works the same way as in singleLine(of:points:). Pixels lighter than the cutoff place no dots, so light regions stay empty instead of collecting stray twigs.

spanningTree (through points)

spanningTree(through points: [Vector2]) -> [Contour]

This form builds the tree over any points you already have, such as a stipple, a blue-noise scatter, attractor orbits, or cluster centers. The tree is exact, because it is built on the Delaunay triangulation, which always contains it. The chain decomposition is minimal, at one chain per pair of odd-degree vertices. A plotter therefore spends no more pen lifts than the branching demands.

let tree = spanningTree(through: dots)
for chain in tree { drawPolyline(chain.points) }

The result is deterministic for a given set of points. The work is pure CPU, and it stays comfortable at tens of thousands of points.

Practical notes

  • Span once, then keep the chains. The build belongs in setup(). To animate the reveal, draw the chains in their plotting order rather than rebuilding the tree.
  • Tour or tree is a choice of look. The same stipple renders both ways. singleLine gives an engraved, maze-like meander, and spanningTree gives an organic, vein-like one. The tree is always the shorter drawing.
  • Density shapes the veins. The tree grows trunks where dots crowd, so tonal contrast in the source is what makes the branching legible. A soft gray image gives an even thicket.
  • The chains are yours to style. Each Contour is an independent stroke. Vary the stroke weight by chain length to weight trunks against twigs, or pass the long chains to drawCurve for a rounded look.

Related: Single line (the touring sibling), Stippling (where the dots come from), Voronoi & Delaunay (the triangulation underneath), Export (SVG and the plotter path).
