Halftone

drawHalftone rebuilds an image as the classic print dot screen. Round dots sit on a grid rotated to the traditional 45 degrees. Each dot is sized so its ink area matches the tone under its cell. Newspapers have carried photographs this way since the 1880s, and screen prints do the same. It is the vector counterpart of the raster screening that print separations use. Because the sizing is area-exact, tone survives the screen, so a 30 percent gray becomes dots that cover 30 percent of their cells. In the shadows the dots overrun their cells and merge into the traditional checkered diamonds.

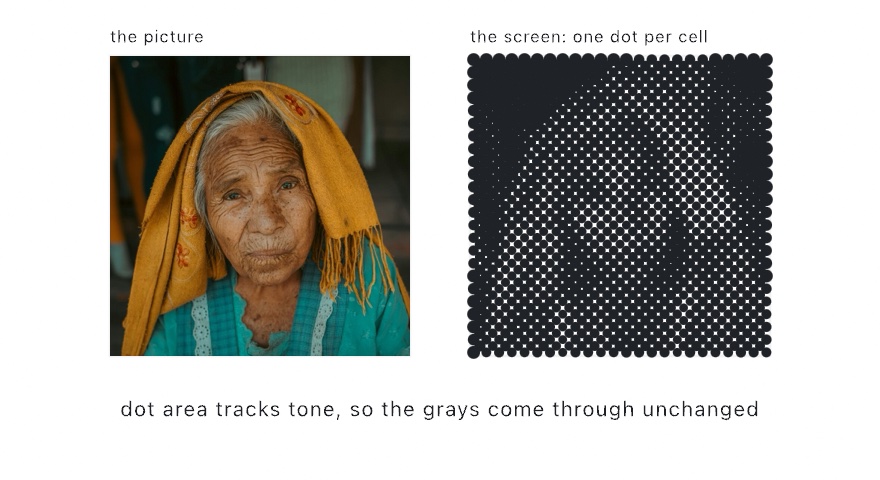

A photograph of an elderly woman in a yellow scarf beside the same picture as a halftone screen: black dots on cream, small on the lit cheek and swelling in the shadows of the scarf until they merge into checkered diamonds

Contents

drawHalftone

drawHalftone(_ image: Image,
             pitch: Double = 12,
             angle: Double = .pi / 4,
             in bounds: Rectangle? = nil,
             inverted: Bool = false,
             colored: Bool = false)

This one call draws the whole screen. pitch is the cell spacing in canvas units, and angle is the screen rotation. The classic single-ink screen sits at 45 degrees, because that is the angle where the eye notices the grid least. The image keeps its aspect inside bounds, which is the whole canvas by default. Dots draw with the current fill and stroke. Set colored: true and each dot is tinted with the average color under its cell instead.

fill(.black)
noStroke()
drawHalftone(picture, pitch: 14)

By default, dark regions get big dots, the way ink sits on paper. inverted: true sizes the dots by brightness instead, which gives you light marks on a dark canvas:

background(.black)
fill(.white)
drawHalftone(picture, pitch: 14, inverted: true)

halftone (the data form)

halftone(of image: Image,
         pitch: Double = 12,
         angle: Double = .pi / 4,
         in bounds: Rectangle? = nil,
         inverted: Bool = false) -> [HalftoneDot]

This form returns the screen as data, so you can draw the marks yourself. Each HalftoneDot carries its lattice column and row in the rotated screen, its center on the canvas, and its area-exact radius. It also carries the cell's ink coverage, from 0 for bare to 1 for solid, and the average color underneath. With those values you can swap the mark, jitter the grid, or keep only part of the tonal range:

for dot in halftone(of: picture, pitch: 16) {
    drawNgon(center: dot.center, radius: dot.radius, sides: 6)
}

Cells lighter than the printable minimum are left out, so highlights stay clean paper. That minimum is 2 percent coverage, the same cutoff the print separations apply. At the other end, coverage above 98 percent floods the cell. The radius then caps at pitch / sqrt(2), the disk that reaches the cell corners.

Getting the classic looks

  • Newsprint. Use a black fill on a warm white canvas, a pitch of 10 to 16, and the default 45-degree angle. Smooth tonal ramps suit the screen best, because every step of a gradient lands on its own dot size.
  • The inverted poster. Use inverted: true with a pale fill on a near-black canvas. It reads as light coming out of dark, the screen-print negative.
  • Pop-art color. Use colored: true with a large pitch. The picture keeps its own palette, in fat separate dots.
  • The rosette. Screen the same image several times at the conventional print angles of 45, 15, 75, and 0 degrees. Use one translucent ink per pass, so the overlap makes the traditional rosette instead of moire. ProcessSeparation.screenAngles is that four-color set in radians, and PrintSeparation.screenAngles(for:) gives the angles a spot-ink separation would use for your own inks. For real spot-color work, split the image with print separations first, then screen each master.
  • Other marks. The data form turns the screen into a layout you draw yourself. Draw glyphs at radius, rings, squares rotated by coverage, or anything else that can scale with the tone.

Practical notes

  • The dots are real geometry. They draw as circles through the analytic SDF path, and they carry through to the vector exports. --export-svg and --export-pdf write each dot as a true circle, which is what a pen plotter needs.
  • CPU work at the image's resolution. The binning pass reads every source pixel once. A source a few hundred pixels across screens comfortably every frame, and the dot pass itself draws a few thousand circles.
  • Deterministic. The screen is a pure function of the image, pitch, angle, and bounds. It consumes no rng, so a screen is safe in snapshots and in recipes.
  • Tone is measured in linear light. Coverage is 1 minus linear luminance, times alpha. Stippling uses the same rule, because a dot's ink area maps physically to reflectance. Transparency carries no ink.
  • Texture-backed images return no dots, because they hold no CPU pixels. To screen a video frame, read it through its snapshot() first.
  • Beside a glyph mosaic. A dot's radius is continuous, so a ramp stays smooth where drawGlyphMosaic steps through its characters. The mosaic also grows its mark with brightness by default, the other way from this screen, so one of the two takes inverted: true when both should read alike.
  • For the pixel-space version of the same look, filter a layer with .halftone or .cmykHalftone from the effects catalog. The GPU form is cheap per frame at any resolution, but it rasterizes, so it does not feed the plotter path.

Related: Images (the Image type and pixel access), Print separations (the raster screening and spot-color masters), Pixel sorting, Glyph mosaic and Single line (the other image-as-input renderings), Effects (the GPU .halftone filter and the .melt design filter).
