Load a raster image and draw it onto the canvas. An image decodes once on the CPU, then uploads to the GPU the first time it is drawn. Ollin reads the formats Apple reads through ImageIO, including PNG, JPEG, HEIC, TIFF, and GIF. After the upload the image is a textured quad like any other shape. It follows the transform stack and composites in draw order with the rest of your drawing.

The usual pattern is to load the image in setup(), keep the result in a property, and draw it in draw(). Do it that way because decoding a file every frame is wasteful. The image keeps its GPU texture for as long as you hold it, so one load is enough.

final class Photo: Sketch {
    var photo: Image?

    override func setup() {
        photo = try? loadImage("/path/to/photo.jpg")
    }

    override func draw() {
        background(.black)
        if let photo {
            drawImage(photo, 0, 0, width, height)   // fill the canvas
        }
    }
}

Contents

• loadImage - load from a path or URL
• drawImage - draw at native size, scaled, or into a rectangle
• Fitting a picture to a box - .stretch, .contain, .cover
• Part of a picture - one cell of a sprite sheet, a tile, or a frame of a strip
• tint - recolor and fade images as you draw them
• imageSampling - hard square pixels when a small picture is drawn big
• Image - the value type, loading from data or a bundle, resized, and cropped
• Pixels - author or sample an image pixel by pixel

loadImage

loadImage(_ path: String) throws -> Image
loadImage(_ url: URL) throws -> Image

Decode an image file. The call throws a FileError when the file is not there (missing) or is not a picture (unreadable). Call it in setup() with a bare try: setup() may throw, so the sketch stops there naming the file and the reason, or write try? to carry on with nil.

photo = try? loadImage("/Users/me/Pictures/leaf.png")

loadImage is a shorthand for Image(contentsOf:). Use the initializer directly when you have a URL, raw Data, or a bundled resource.

drawImage

drawImage(_ image: Image, _ x: Double, _ y: Double)
drawImage(_ image: Image, corner: Vector2)
drawImage(_ image: Image, _ x: Double, _ y: Double, _ width: Double, _ height: Double)
drawImage(_ image: Image, in rect: Rectangle)

Draw image with its top-left corner at (x, y). You can also pass a Vector2 you already hold as corner:, the same anchor label drawRect uses. The first two forms draw the image at its native pixel size. The scalar box form stretches it to fill a width×height box, and the Rectangle form does the same with a value you can pass around.

drawImage(logo, 40, 40)                       // native size, top-left at (40, 40)
drawImage(logo, 40, 40, 200, 200)             // scaled into a 200×200 box
drawImage(logo, in: Rectangle(center: c, width: 200, height: 200))

The image follows the transform stack, so translate / rotate / scale move and warp it. The pivot is wherever you have set the origin:

withState {
    translate(width / 2, height / 2)
    rotate(time * 0.2)
    drawImage(logo, in: Rectangle(center: Vector2(0, 0), width: 300, height: 300))
}

The image is recorded in call order with everything else. So a shape drawn after drawImage paints over it, and one drawn before sits behind it.

Drawn smaller than its own size. A loaded image keeps a set of smaller copies of itself, called a mip chain. When you draw the image smaller than its own size, Ollin samples those copies. So a photograph drawn at a quarter of its size still shows the whole photograph, not one pixel in four picked out of the original. The copies are averaged in linear light, so the tone does not shift. When you draw the image at its own size or larger, nothing changes. Pixels the sketch wrote itself through image[x, y] keep the single level they uploaded with. The details are under textures.

Fitting a picture to a box

drawImage(_ image: Image, in rect: Rectangle, fit: ImageFit)
drawImage(_ image: Image, _ x: Double, _ y: Double, _ width: Double, _ height: Double, fit: ImageFit)

A picture and the box you draw it into are rarely the same shape. fit says what to do about the difference:

drawImage(photo, in: panel, fit: .cover)      // fills the panel, edges lost
drawImage(photo, in: panel, fit: .contain)    // all of it, the panel showing above and below

.stretch is what the plain drawImage(_:in:) has always done, so it is the default. Code that does not pass fit draws as before.

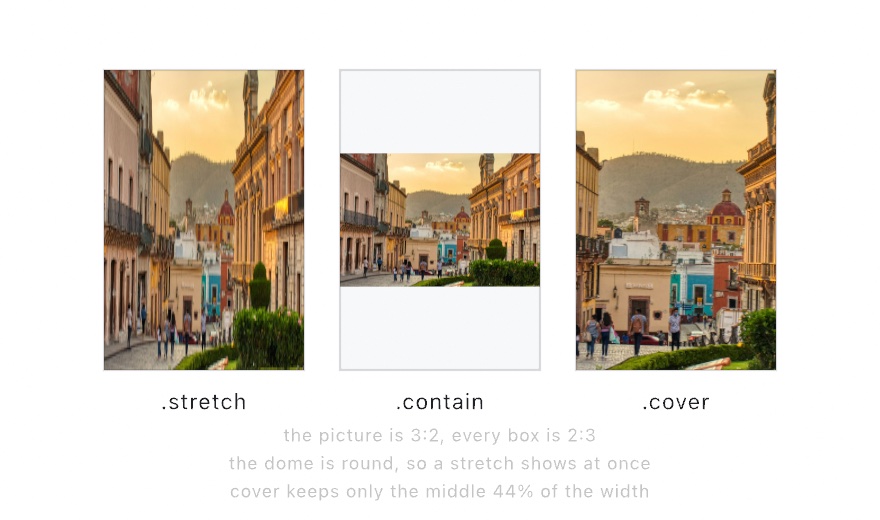

A round shape in the picture is the quickest way to tell the three apart. .stretch turns it into an ellipse, and the other two leave it round.

.cover costs nothing extra to draw. The quad reads a smaller part of the picture instead of being clipped, so a covered picture is still one quad and one texture read.

Rectangle offers the same arithmetic when you want the box rather than the drawing. Call Rectangle(fitting:in:) for the box .contain uses, and Rectangle(covering:in:) for the box .cover uses. Both keep the picture's proportions and both stay centered, but the first sits inside the container and the second runs past it.

Worked example: Images/Fit.

Part of a picture

drawImage(_ image: Image, _ x: Double, _ y: Double, _ width: Double, _ height: Double,
          _ sourceX: Double, _ sourceY: Double, _ sourceWidth: Double, _ sourceHeight: Double)
drawImage(_ image: Image, in rect: Rectangle, source: Rectangle)

A sprite sheet keeps many pictures in one image: the frames of an animation in a row, the tiles of a map in a grid. The last four numbers, or the source rectangle, name the part to draw, in the image's own pixels measured from its top-left. That part is drawn into the box the first numbers give, at whatever size the box is, and nothing is cropped first.

let frame = frameCount / 4 % 8                       // eight 64-pixel frames in a row
drawImage(walk, 100, 100, 128, 128, Double(frame) * 64, 0, 64, 64)

let tile = Rectangle(x: Double(column) * 16, y: Double(row) * 16, width: 16, height: 16)
drawImage(tiles, in: Rectangle(x: x, y: y, width: 48, height: 48), source: tile)

The draw reads only inside the part. Drawing a picture larger than itself blends neighboring pixels to fill the space between them. At the edge of a cell, the neighbor belongs to the next frame, so a magnified sprite would pick up a thin line of the cell beside it. The source rectangle holds the read half a pixel inside its own edges, the way a picture's own edge is held, so a cell drawn at its own size or larger looks exactly like the same cell cropped out with cropped(x:y:width:height:) and drawn whole. Drawn smaller than itself, a picture reads its smaller copies, and those average across the edges between cells. A sheet that leaves a few pixels of space around each cell keeps those clean too.

The part of the rectangle that runs off the picture draws nothing, as if the picture were surrounded by empty space. The part that is on it lands where it would have, so a source rectangle half past the right edge fills the left half of the box.

cropped makes a new image on the CPU. A source rectangle costs nothing extra: the same quad reads a smaller part of the texture. So a sheet of a hundred frames is one texture however many of them you draw. Any Image works as the sheet, a layer's image included. A web page of the sketch holds each read inside its part the same way.

.cover above reads a part of the picture too, but there the picture simply continues past the part it shows, so it blends across that edge as a photograph should.

Worked example: Images/SpriteSheet.

tint

tint(_ color: Color)
noTint()

tint multiplies each texel of every following drawImage by color. The RGB recolors the image, and the alpha fades it. The default is white at full alpha, which leaves the image unchanged. noTint() returns to that default, so images draw as they are.

tint(Color(red: 1, green: 0.7, blue: 0.3))        // warm wash
drawImage(photo, 0, 0)

tint(Color(white: 1, alpha: 0.4))                 // 40% opacity, no color shift
drawImage(photo, 0, 0)

noTint()                                          // back to unchanged

Tint is drawing state like fill and stroke, so withState { } saves and restores it. That lets you tint one image without the color carrying over to the next. The tint multiplies only as the image is drawn and never edits the image's stored pixels, so reading them back always returns the original colors.

withState {
    tint(Color(red: 0.6, green: 0.8, blue: 1.0, alpha: 0.8))
    drawImage(photo, 0, 0, width, height)
}

imageSampling

imageSampling(_ mode: ImageSampling)   // .linear (the default) or .nearest

How the pictures that follow are read when they are drawn larger than they are. A picture drawn bigger than its own pixels has to say what lies between two of them. .linear, the default, blends neighbors, so a photograph enlarged a little stays smooth. .nearest keeps every pixel a hard square, which is what pixel art, a low-resolution canvas, or a photo dithered to two levels want when drawn at several canvas pixels a cell: the cells read as cells. No enlarged copy is made on the CPU. The GPU reads the same small picture through a sampler that takes the nearest pixel, so a 270 by 270 picture drawn at four times its size costs what one quad costs.

var cells: Image!

override func setup() throws {
    let photo = try loadImage("portrait.jpg").resized(width: 270, height: 270)
    cells = photo.dithered(.atkinson, levels: 2)     // black and white, once
}

override func draw() {
    imageSampling(.nearest)
    drawImage(cells, 0, 0, 1080, 1080)             // each cell a 4 by 4 square
}

Two things to know. A picture drawn smaller than its pixels is still blended under .nearest: reading one pixel of many under reduction aliases into sparkle, so the choice applies only where the picture is enlarged, and a picture drawn at its own size reads the same either way. And a scale that is not a whole number gives cells of uneven width, since each canvas pixel takes whichever source pixel it lands on; draw at a whole multiple when the grid should be regular.

It is drawing state beside tint, so withState { } saves and restores it, and a web page made with --export-web reads the picture the same way. The Images/PixelArt example draws one dithered photograph both ways with the split under the pointer.


Image(contentsOf url: URL) throws
Image(data: Data) throws
Image(resource name: String, withExtension ext: String?, in bundle: Bundle) throws
Image(cgImage: CGImage)
Image(width: Int, height: Int, color: Color = .clear)
Image(width: Int, height: Int, premultipliedRGBA: [UInt8])

Image is the typed value drawImage takes. It is a reference type that owns a GPU texture, so it is identified by the object itself, not by its contents. The three loading initializers throw a FileError: missing when the file or resource is not there, unreadable when the bytes are not a decodable image. Every image reports its pixel width / height as Ints, and its size as the same pair in a Vector2. The Vector2 form works with the geometry helpers, so Rectangle(fitting: image.size, in: bounds) letterboxes the image.

Image(width:height:color:) makes a blank width×height image filled with color, which is transparent by default. You can then author it from scratch pixel by pixel instead of loading a file.

Image(width:height:premultipliedRGBA:) wraps pixels you have already produced in bulk: width × height × 4 RGBA bytes with premultiplied alpha, rows top to bottom. The buffer becomes the image's own pixels with no decode or conversion, because the GPU texture uploads straight from it. That makes it the fast path for images you generate every frame. The initializer returns nil when the byte count does not match the dimensions.

Load a bundled asset with the resource: initializer. in: has no default on purpose, because a default argument would resolve to Ollin's bundle and never yours. So pass .module from the target that bundles the file:

let texture = try? Image(resource: "paper", withExtension: "png", in: .module)

currentCGImage() is the pixels as they stand now, edits through the [x, y] subscript included, where cgImage is always the original decode. It is what interop that must see the live pixels (Vision, Core Image) should ask for. Image(cgImage:) goes the other way and wraps a CGImage you already have in memory. It can be one you rendered yourself, decoded elsewhere, or built procedurally, so anything that produces a CGImage becomes drawable.

resized(width:height:) hands back a copy at another pixel size, resampled with high-quality interpolation. It is the call to make before handing a large picture to something that reads every pixel, such as a stipple, a dither, a mosaic, or a string-art winding, which want a copy of a few hundred pixels a side. It reads the CPU pixels, so it applies to a picture decoded from a file or authored pixel by pixel; an image wrapping a live texture comes back as a blank of the requested size. Setup-time work, so keep the result.

let small = SamplePhoto.scarf.load().resized(width: 300, height: 300)

cropped(x:y:width:height:) changes what is in the picture rather than how big it is: it hands back a copy of the given rectangle, measured from the top-left corner. The rectangle is clamped to the picture, so a crop that runs off an edge comes back smaller rather than empty. cropped(toAspect:) is the common case spelled once, the largest centered piece of a given shape, where the number is width over height. Nothing is scaled either way, so the copy keeps the original's own pixels.

let wide = SamplePhoto.city.load().cropped(toAspect: 3.0 / 2)   // a 3:2 slice of a square
let corner = photo.cropped(x: 0, y: 0, width: 512, height: 512)

For a picture to try any of this on, import OllinSamplePhotos bundles twenty pictures with their credits.

Transparency works. Ollin honors a PNG's alpha channel, so transparent regions show what is behind them, and the edges composite cleanly.

Pixels

The subscript reads or writes a single pixel. (0, 0) is the top-left corner, and coordinates run to (width - 1, height - 1).

let c = image[x, y]          // read a pixel's Color (a get)
image[x, y] = .red           // write one (a set)

An out-of-range access does not crash, so a stray index cannot break a loop. Reading off the edge returns .clear, and writing off the edge does nothing.

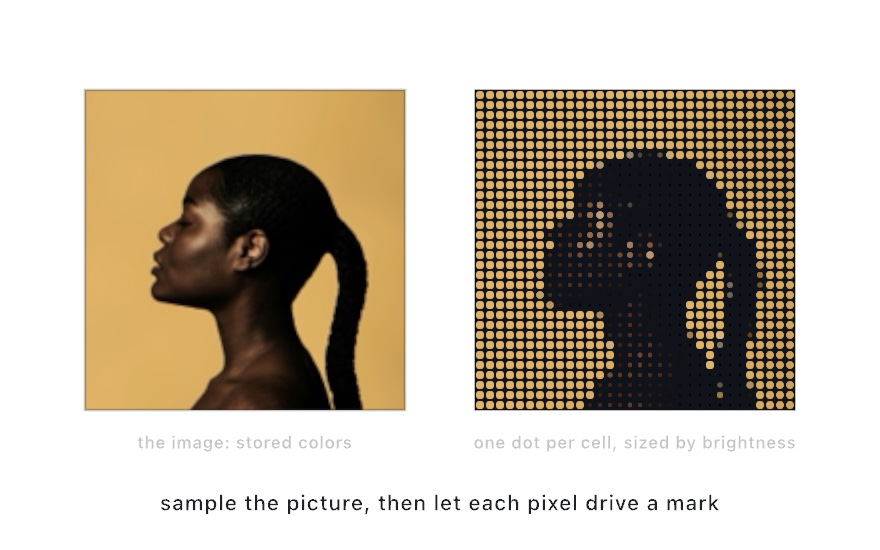

Pair the subscript write with the blank initializer to author an image from scratch. Make a transparent image, paint it pixel by pixel, then draw it:

final class PixelArt: Sketch {
    var sprite: Image?

    override func setup() {
        let image = Image(width: 64, height: 64)
        for y in 0..<64 {
            for x in 0..<64 {
                let t = Double(x) / 63
                image[x, y] = Colormap.turbo.color(at: t)
            }
        }
        sprite = image
    }

    override func draw() {
        background(.black)
        if let sprite { drawImage(sprite, 0, 0, width, height) }
    }
}

A write shows on the next drawImage, because the GPU texture rebuilds from the edited pixels at that point. That rebuild is why you should author in setup() when you can, rather than rewriting the whole image every frame. Reading is cheap once the first access has decoded the pixels.

Colors pass through the image's premultiplied storage, so a translucent color that is written and then read back can shift by a step of 1/255. Reading ignores tint, so a get returns the stored color, never the tinted one.

Only a picture held in memory has pixels to read. An image the GPU fills, such as a layer's image or a compute texture's, reads .clear at every point. A write to one is ignored, because what gets drawn is its texture.

The PixelField example authors a field with set, samples it back with get, and animates a tint on top of it.
