Shadow art

shadowArt carves a solid that throws the shadows you ask for. You give it one shape for the front, another for the side, and a third for above.

let art = shadowArt(fromFront: ring, fromSide: cross, resolution: 56)
drawMesh(art.mesh)

A lit point casts its shadow along the direction of the light. A point can therefore belong to the solid only if it lands inside the shadow in every direction it is lit from. Keep exactly those points:

   front says:  a ring        every voxel is kept only where all of the
   side says:   a cross       silhouettes say solid, so the solid is the
                              silhouettes swept through each other and
   what is left is neither    cut where they cross

What is left is the visual hull, the largest solid that could cast those shadows.

Contents

• shadowArt
• Reading it back
• What can and cannot be cast

shadowArt

shadowArt(fromFront front: Image? = nil,
          fromSide side: Image? = nil,
          fromAbove above: Image? = nil,
          resolution: Int = 48,
          threshold: Double = 0.5,
          inverted: Bool = false,
          in bounds: Box3? = nil) -> ShadowArt

Each picture is read as a silhouette, and bright means solid, which means a white shape on a black background. threshold sets where that brightness cutoff falls. Set inverted to read dark as solid instead, which is the usual case for a scanned drawing.

• front is the shadow cast along z, seen looking at the xy face.
• side is the shadow cast along x, seen looking at the zy face.
• above is the shadow cast along y, seen looking at the xz face.

A side you leave out places no constraint, so one picture alone gives a prism. The cost is the cube of resolution. The bounds default to a two-unit cube around the origin, and you can pass any box instead.

Reading it back

struct ShadowArt {
    let resolution: Int
    let occupied: [Bool]                       // x + y*n + z*n*n
    let bounds: Box3
    var voxelSize: Double
    var count: Int
    var boxes: [Vector3]                       // the middle of every solid voxel
    var mesh: Mesh                             // the carved surface
    func isSolid(_ x: Int, _ y: Int, _ z: Int) -> Bool
    func shadow(from side: Side) -> [Bool]     // what it really throws
}

boxes is the blocky reading, one cube per voxel. mesh is the surface, built by marching the occupancy field. The surface therefore steps over the voxels rather than approximating a smooth shape behind them.

shadow(from:) reports what the carved solid actually throws. Compare its result against the shadow you asked for.

What can and cannot be cast

The shadows thrown are never larger than the ones asked for, and can be smaller.

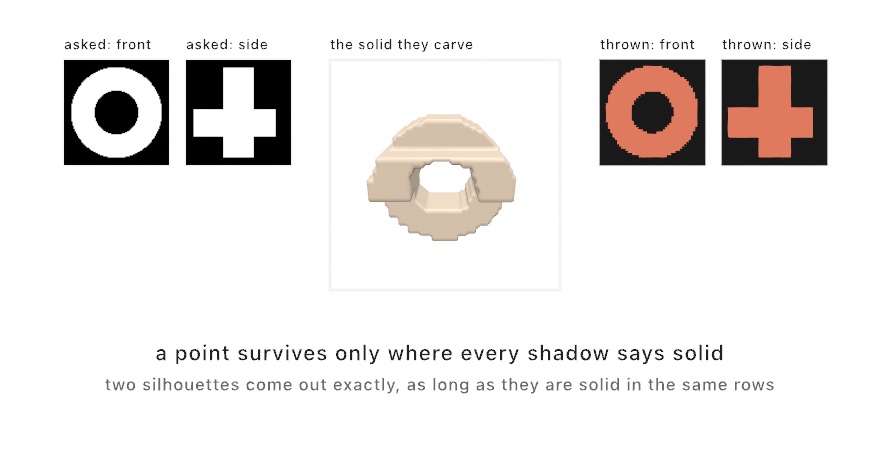

The reason is that the front view and the side view share the same vertical axis, so their rows line up. A row that is empty in one view is therefore empty in the other, because no solid throws a shadow where nothing is lit.

• Two silhouettes come out exact when they are solid in the same rows. That is why the classic circle-and-square works. It is also why a shape that reaches further down than the other silhouette has its bottom cut off.
• Three agree far less often. A point of one shadow may have nothing behind it that survives the other two. That part of the shadow is then not cast. The three-letter sculptures are designed around this limit.
• Compare shadow(from:) against the silhouette you passed in. Where the two differ, the thrown shadow is the one you get.

Example: 3D/Geometry/ShadowArt. Guide: Chapter 27.

Where this comes from

Carving a solid down to what its silhouettes allow is shape from silhouette. The result is the visual hull, named by Aldo Laurentini ("How Far 3D Shapes Can Be Understood from 2D Silhouettes", IEEE PAMI 16/2, 1994). Sculptures built to throw two or three chosen shadows are older. Niloy Mitra and Mark Pauly set out the computational version ("Shadow Art", SIGGRAPH Asia 2009). See ATTRIBUTION.md.
