Hitomezashi stitching

Hitomezashi is the one-stitch sashiko pattern. Every line of a grid carries a row of unit dashes over alternating cells. Each line has one bit of its own, and that bit sets the phase of the alternation. It decides whether the dashes on that line start on the edge or one cell in. Neighboring lines shift against each other, which makes the dashes join at the grid's crossings into steps, staircases, and closed loops. That is how a handful of coin flips reads as a woven cloth. The whole design is those bits, one per horizontal line and one per vertical line, so a seed reproduces all of it.

One design has two faces. The stitches are the line-work, one open two-point Contour per dash. You can stroke them, hatch them, feed them to the shape booleans, or export them to SVG for a pen plotter. The parities two-color the cells instead. Every hitomezashi design splits the cloth into regions that exactly two tones can fill, and parities is that coloring.

Contents

• hitomezashi
• drawHitomezashi
• The two faces
• Explicit bits

hitomezashi

hitomezashi(in bounds: Rectangle? = nil,
            columns: Int, rows: Int,
            probability: Double = 0.5) -> Hitomezashi

A stitch design over a columns × rows grid of bounds (the whole canvas by default). The seeded random flips every line's bit with probability, so the same seed always stitches the same design. At 0.5 you get the classic balanced weave. Biased toward 0 or 1, the design drifts into long diagonal staircases.

seed(5)
let design = hitomezashi(columns: 24, rows: 24)
stroke(.white); strokeWeight(4); strokeCap(.round)
for dash in design.stitches { drawPolyline(dash.points) }

drawHitomezashi

drawHitomezashi(in bounds: Rectangle? = nil,
                columns: Int, rows: Int,
                probability: Double = 0.5)

Draw a stitch design with the current stroke, in one call. For the two-tone fill or for per-stitch color, keep the hitomezashi(…) value instead and draw its faces yourself.

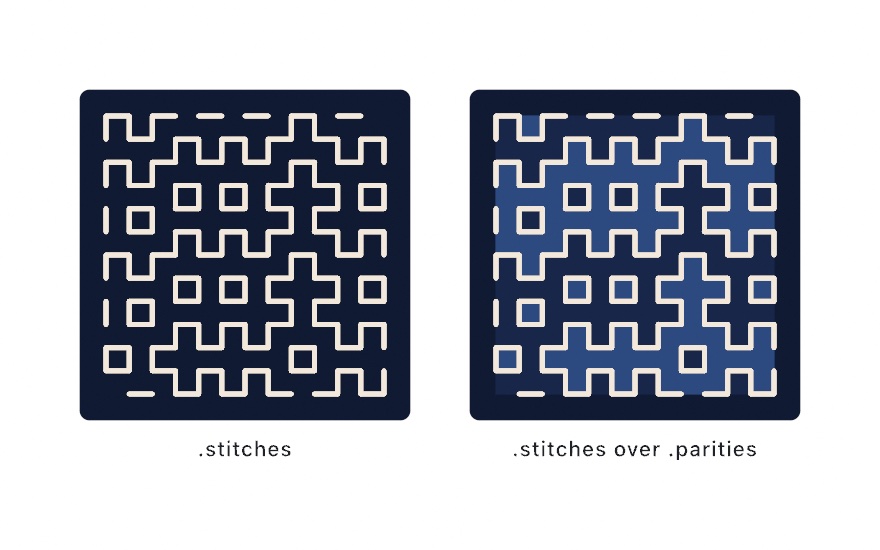

The two faces

design.stitches   // [Contour], one open two-point contour per dash
design.parities   // [Bool], row-major, zips with design.grid.cells

stitches is the thread. On any one line the dashes cover alternating cells, so two stitches on the same line never touch. The design is what happens where they meet at the crossings.

parities is the cloth. Two side-by-side cells get different values exactly when a stitch separates them. Filling by parity therefore paints the design's regions in two tones with no seams:

let design = hitomezashi(columns: 24, rows: 24)
for (cell, tone) in zip(design.grid.cells, design.parities) {
    fill(tone ? Color(hex: 0x2C4A7F) : Color(hex: 0x18264A))
    drawRect(cell.frame)
}

Draw the fill first and the stitches over it, and every tone boundary lands exactly under a stitch. See the Hitomezashi example.

Explicit bits

Hitomezashi(grid: Grid,
            rowBits: [Bool], columnBits: [Bool])

The building block under the two calls above, for hand-authored or encoded designs. rowBits is one bit per horizontal line, top to bottom, so it holds rows + 1 bits. columnBits is one bit per vertical line, left to right, so it holds columns + 1. Shorter arrays repeat, so a small motif tiles a large cloth. An empty array reads as all false. A favorite encoding turns a word into bits, taking each vowel as a 1, so a name becomes a design.

// A woven twill from a two-bit motif on both axes.
let design = Hitomezashi(grid: Grid(in: bounds, columns: 30, rows: 30),
                         rowBits: [true, false], columnBits: [false, false, true])

Related: Truchet tiling is the other one-bit-per-element pattern. For the Grid and the Contour the stitching is built from, see Geometry. The hex and triangle grids are in Tiling.
