Random walks

These generators build a path one random step at a time. The family has three members, and each one makes a different mark. randomWalk draws a dense local tangle that drifts slowly. levyFlight draws tight clusters strung together by rare jumps. selfAvoidingWalk draws one unbroken line that never crosses itself.

All three draw from the seeded random, so seed reproduces the path. All three return a plain [Vector2], which you can pass to drawPolyline, Contour, hatching, or SVG export.

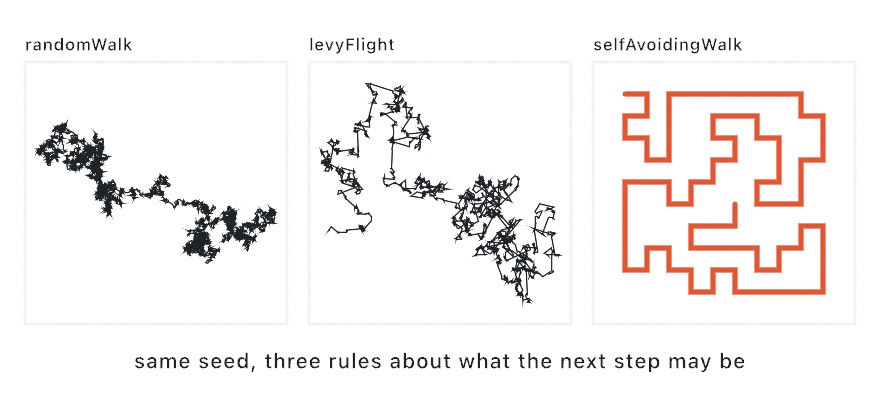

Three panels from the same seed: a dense tangle pooling in one area, a set of tight clusters joined by long straight leaps, and an orange path on a grid that fills the square without ever crossing itself

Contents

randomWalk

randomWalk(from start: Vector2? = nil,     // canvas center by default
           steps: Int,
           stepLength: Double) -> [Vector2]

randomWalk is the plain isotropic walk, where every step is the same length in a uniformly random direction. It is diffusive, so after N steps it has typically drifted only √N step lengths from where it started. Because it moves away so slowly, it draws a dense, tangled scribble that stays local.

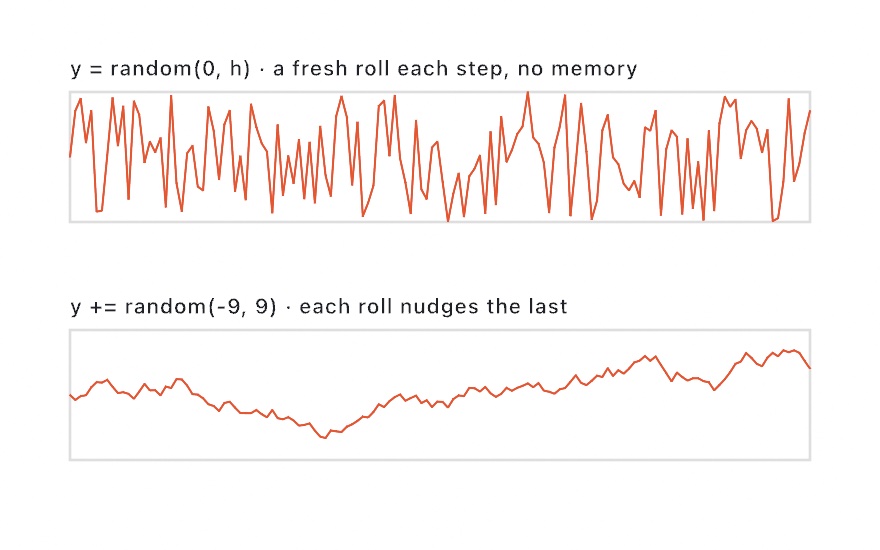

Two strips: fresh rolls per step produce a jagged hash of a line, while accumulated nudges produce a wandering path
seed(3)
noFill(); stroke(.black); strokeWeight(1.5)
drawPolyline(randomWalk(steps: 4000, stepLength: 6))

The call returns steps + 1 points, and the first one is start.

levyFlight

levyFlight(from start: Vector2? = nil,
           steps: Int,
           minStep: Double,
           maxStep: Double,
           exponent: Double = 2) -> [Vector2]

levyFlight is a walk whose step lengths follow a heavy-tailed power law, p(l) ∝ l^(−exponent) on [minStep, maxStep]. Most steps are tiny, so the path grinds away inside one cluster. Rare enormous leaps then start a new cluster somewhere else. Foraging animals search this way, and eyes scan a scene this way. As a mark, it reads as islands of texture strung together by long strokes.

exponent controls the mix of tiny steps and long jumps. Near 1 the jumps dominate, near 3 the path approaches an ordinary walk, and the default of 2 is the classic balance. minStep must be positive. The power law diverges at zero, so a floor is part of the definition.

A flight wanders wherever the steps take it, so you usually have to fit the finished path to your frame. Scale the points rather than calling scale(). Take the minimum and maximum of the coordinates, then map them into the frame. scale() would fatten the stroke as well. See the LevyFlight example.

selfAvoidingWalk

selfAvoidingWalk(in bounds: Rectangle? = nil,
                 cellSize: Double,
                 from start: Vector2? = nil,   // snapped to the nearest cell
                 maxLength: Int? = nil) -> [Vector2]

selfAvoidingWalk draws one unbroken path over a cellSize lattice, centered in bounds, that never revisits a cell. A naive self-avoiding walk boxes itself in almost immediately. This one grows depth-first with backtracking, so it retreats out of dead ends while the abandoned cells stay blocked. The line therefore winds long and dense, and it fills the frame like a maze made of a single stroke. Because it is a single stroke, it is a favorite for pen plotters.

The call returns the longest path it found. Its points are cell centers, and each step is one orthogonal lattice move. Pass maxLength to stop as soon as the path reaches that many points.

seed(12)
let path = selfAvoidingWalk(cellSize: 30)
strokeCap(.round); strokeWeight(11)
for i in 1 ..< path.count {
    stroke(ramp.color(at: Double(i) / Double(path.count - 1)))
    drawLine(path[i - 1], path[i])   // hue along the walk's length
}

Standalone (outside a sketch)

The free functions take an explicit start point or rectangle, plus a random number generator:

var rng = SplitMix64(seed: 5)
let scribble = randomWalk(from: .init(0, 0), steps: 2000, stepLength: 4, using: &rng)
let flight = levyFlight(from: .init(0, 0), steps: 600, minStep: 4, maxStep: 400, using: &rng)
let thread = selfAvoidingWalk(in: bounds, cellSize: 24, using: &rng)

Related: Random (the seeded source they draw from), Diffusion-limited aggregation (random walkers frozen into dendrites), Flow fields (paths steered by a field instead of chance), Low-discrepancy sampling (points without a path).
