Variations

A seeded sketch is a generator. One number decides which of its many possible compositions you are looking at. Ollin names that number variation. It shows the number while the sketch runs and embeds it in every export. It also gives you tools to explore the other compositions the same sketch can produce. You can step to the next seed, roll a random one, or proof a whole range as a contact sheet. Once you find a variation you want to keep, you re-render it at full resolution.

Nothing on this page changes what a sketch draws. These tools change only how you find the variation you want to keep.

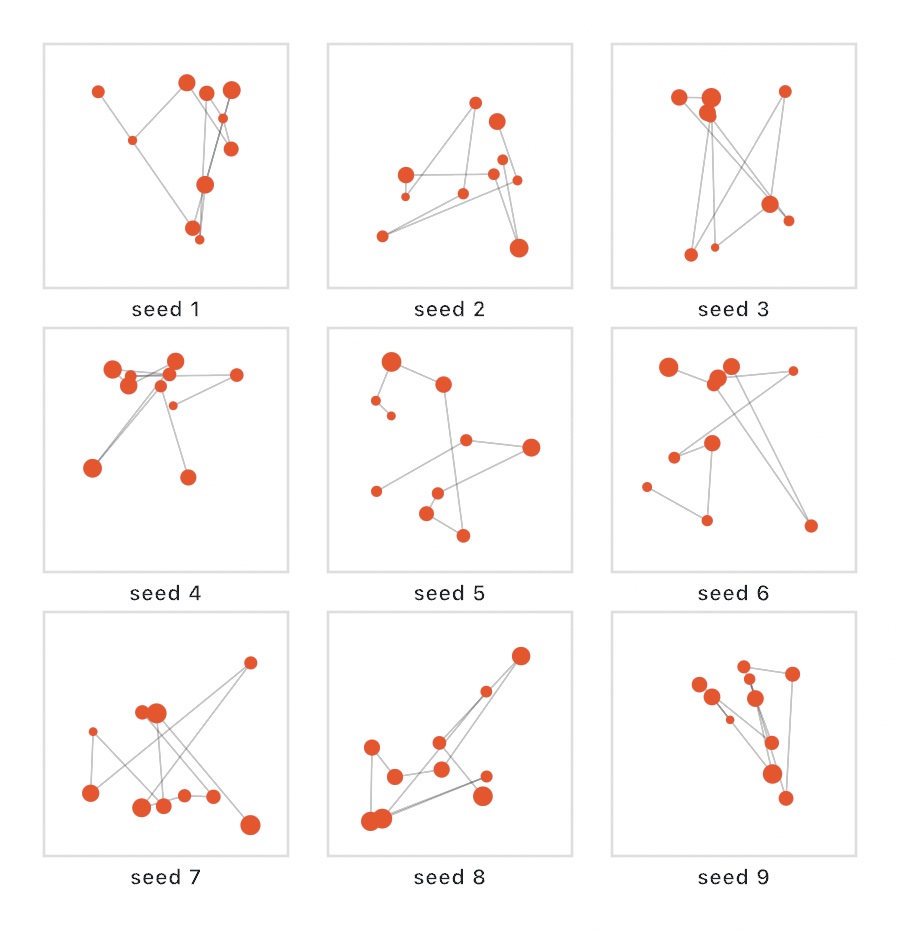

Nine tiles, each a small constellation of orange dots joined by faint lines, labeled seed 1 through seed 9, every tile a distinctly different arrangement

Every sketch has a variation
Pinning a variation
Exploring while the sketch runs
Contact sheets: proof a whole range
Re-rendering a keeper
Writing a sketch worth exploring

Every sketch has a variation

When a sketch is created, it rolls one number, its variation, and seeds both random() and noise() from it. So an unseeded sketch still looks different on every run. The number that produced a run is readable, so you can go back to that run later.

override func draw() {
    drawCaption("Variation \(variation)")   // the seed this run grew from
}

The number is small on purpose (1 through 99,999), so it is easy to read off the screen, say out loud, and type back in.

Because both generators start from that number, every export records it as a single seed in its reproduction recipe:

{"tool":"Ollin","seed":27157,"git":"d146303","frame":0,"fps":60}

Pinning a variation

seed(_:) moves the whole sketch to a chosen variation:

override func setup() {
    seed(42)        // this sketch is always variation 42
}

A sketch that does this always reproduces the same composition. Use seed(_:) once you have found a composition you want to keep. Leave the call out and the sketch keeps rolling a new variation on every run.

randomSeed(_:) and noiseSeed(_:) still reseed one generator each. Neither call changes the seed for the whole run, so variation still names the seed the sketch started with.

Exploring while the sketch runs

Every host with an inspector has a Variation card. That covers the live host's sidebar, the performance host, the examples gallery, and the standalone ⌘/ panel:

┌──────────────────────────────────────┐
│  Seed        ‹    27157    ›    ⚄    │
└──────────────────────────────────────┘

‹ and › step to the neighboring seed.
⚄ rolls a random one.
Click the number to type a seed and jump straight to it.

Each move restarts the sketch in place at that seed. That means setup() runs again, the clock returns to zero, and any accumulated canvas is cleared. Your @Param parameter values, however, do not change. In the live host, a seed you navigated to carries across a hot reload, the same way a tuned parameter does. So editing the code does not reshuffle the composition you were working on.

A sketch that pins its own seed in setup() reproduces that one variation no matter what the card says. This is deliberate, because the seed set in the code takes priority over the card.

Contact sheets: proof a whole range

Seeds are most useful when you look through many variations and keep the few you want. --export-grid renders one frame at each seed in a consecutive range of seeds, then tiles those frames into a single labeled proof sheet:

swift run --package-path Examples Example-Randomness-Variations --export-grid sheet.png --seeds 25

--export-grid <path.png>   the sheet to write
--seeds N                  how many variations (default 16)
--seed FIRST               the first seed (default 1); seeds run consecutively
--columns C                grid columns (default: the squarest fit)
--tile PX                  each thumbnail's width (default 320)
--frame N                  which frame of the sketch to render (default 0)
--fps F                    the clock rate that frame is timed against

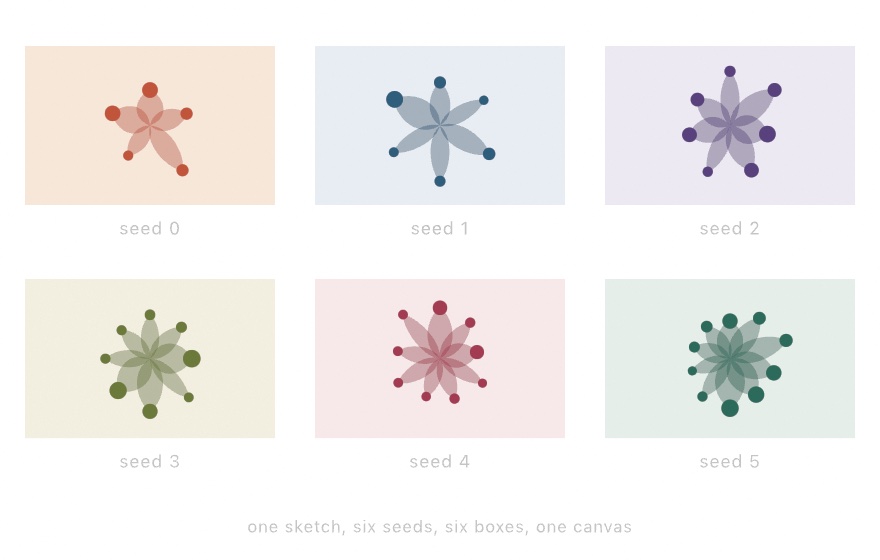

Six boxes on one canvas in two rows of three, each holding the same ring of petals under a different seed, each with its own colored wash

Each tile is a fresh instance of the sketch, seeded before setup() runs, so state from one tile cannot leak into the next. The sheet's own PNG carries the seed list in its recipe.

You can do the same from code when you drive the render yourself:

try OllinApp.exportContactSheet({ MySketch() }, to: "sheet.png", seeds: Array(1...25))

// Or keep the image and composite it yourself:
let sheet: CGImage = try OllinApp.contactSheet(of: { MySketch() }, seeds: [3, 17, 92])

Re-rendering a keeper

--seed N reseeds the sketch before setup() on every export path. So a variation you found on a sheet or in the inspector comes back at full resolution, as a video, or as vector art:

swift run --package-path Examples Example-Randomness-Variations --export keeper.png --seed 10
swift run --package-path Examples Example-Randomness-Variations --export-svg keeper.svg --seed 10
swift run --package-path Examples Example-Randomness-Variations --export-video keeper.mp4 --seconds 6 --seed 10

The same seed gives the same pixels every time. The loop is to roll a sheet, pick a keeper, and render it at full size.

Writing a sketch worth exploring

Seed exploration is worthwhile when the seed decides composition, not just jitter. The practical rule is to make the choices that matter in setup(), where the seeded generators run once. Then let draw() animate what setup() decided.

override func setup() {
    let palette = randomChoice(palettes)     // which colors this seed uses
    let spacing = random(70, 130) * scale    // how dense it is
    discs = poissonDisk(in: field, radius: spacing).map { … }
}

Now every seed is a different composition rather than the same one with a small jitter. Compare Examples/Randomness/Variations (a whole composition per seed) with Examples/Randomness/RandomBand (the same band, re-jittered).

random and noise are both seeded from variation. So anything built on them (the scatter helpers, poissonDisk, the L-systems, flow fields, packing, boids) follows the seed automatically.
