Articulated & chaotic motion

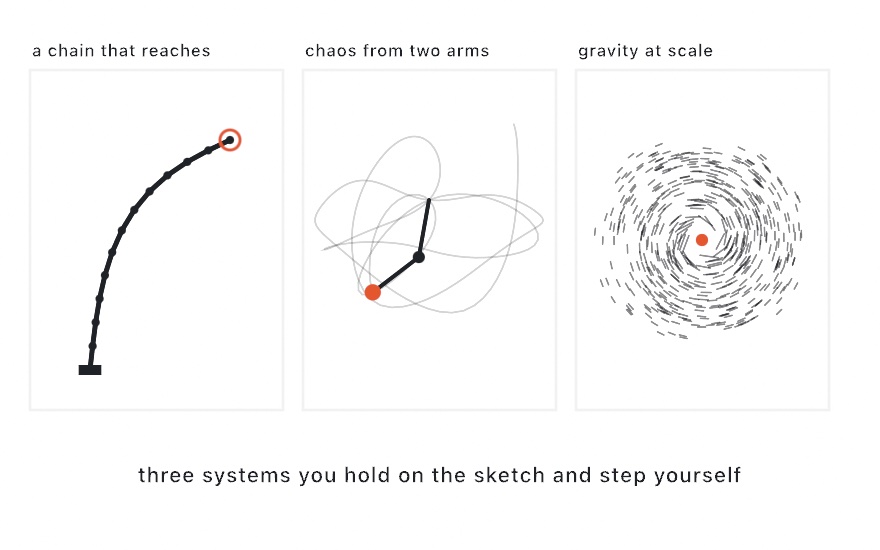

This page covers three CPU motion systems. You hold each one on the sketch and drive it each frame. IKChain is an inverse-kinematics chain that reaches (tentacles, limbs, ropes). DoublePendulum is the double pendulum, the classic chaotic system. NBody is a gravitational n-body simulation (orbits, galaxies, collisions). All three are deterministic: there is no hidden randomness, the iteration orders are fixed, and the n-body factories draw from a seed. So a run replays exactly, and a fixed-frame export reproduces the same frames.

These systems fit with the other motion helpers. The strange attractors are the baked-orbit side of chaos, because you build the orbit once and then draw the path. DoublePendulum and NBody are the live side, which you advance and watch. The @Sprung damped spring is a third motion helper you can use alongside these.

Contents

• Quick start
• IKChain: chains that reach
• DoublePendulum: chaos from two arms
• NBody: gravity at scale

Quick start

A tentacle that follows the mouse:

let arm = IKChain(from: Vector2(540, 1040), segments: 14, length: 36)

override func draw() {
    background(.white)
    arm.reach(toward: Vector2(mouseX, mouseY))
    noFill()
    stroke(.black)
    strokeWeight(6)
    drawPolyline(arm.joints)
}

A double pendulum tracing its second bob:

let pendulum = DoublePendulum()
var trail: [Vector2] = []

override func draw() {
    background(.white)
    pendulum.advance()
    withState {
        translate(width / 2, height / 3)
        trail.append(pendulum.bob2)
        stroke(Color.black.withAlpha(0.4)); strokeWeight(2)
        if trail.count > 1 { drawPolyline(trail) }
        stroke(.black); strokeWeight(4)
        drawLine(.zero, pendulum.bob1)
        drawLine(pendulum.bob1, pendulum.bob2)
        // pendulum.velocity1 and .velocity2 are the two arms' angular speeds
    }
}

A spinning toy galaxy:

let galaxy = NBody.disk(count: 2000, center: Vector2(540, 540), radius: 380)

override func draw() {
    background(.black)
    galaxy.advance()
    noStroke()
    fill(.white)
    for p in galaxy.positions { drawCircle(center: p, radius: 2) }
}

IKChain: chains that reach

An IKChain is a run of rigid segments joined end to end. You can make one from explicit points with IKChain(joints:), which takes each segment length from the spacing of the points. You can also lay one out straight with IKChain(from:segments:length:angle:). Then move it with one of two methods:

• reach(toward:) keeps the base in place and bends the chain so the tip moves toward the target. This is the limb move. It returns whether the tip landed within tolerance, because a target can be out of reach, or stiffness can make it unreachable. It takes optional iterations: (default 10) and tolerance: (default 1) parameters. A target beyond the chain's totalLength stretches the chain straight toward the target in one pass.
• drag(to:) pins the tip to the target and lets the rest of the chain trail after it, base included. This is the rope move. It has no iteration count, and it is cheap enough to call every frame.

moveBase(to:) moves the whole pose, unchanged, to a new anchor. Use it for a chain mounted on a moving creature. To draw the chain, read joints. A drawPolyline over those points is the simplest body. The chain also exposes tip, base, lengths, and totalLength.

Each call starts solving from the current pose. So a chain moves smoothly from frame to frame instead of snapping between solutions.

Two solvers. chain.solver picks the algorithm reach uses, and the choice is about the look of the motion:

• .fabrik (the default) alternates a tip-to-base pass and a base-to-tip pass. Each pass places every joint again at its segment length. The motion spreads evenly along the chain, so poses come out smooth and plant-like.
• .ccd turns one joint at a time to aim the tip, sweeping from the joint nearest the tip down to the base. It favors the joints near the tip, so the chain whips and curls. maxTurn limits the turn (in radians per joint per sweep), which damps the swing and gives smoother motion without kinks.

Both solvers honor maxBend, the stiffness limit. It is the largest angle a segment may fold against its neighbor. The solver enforces it at every interior joint while it solves, never as a correction afterward, so segment lengths stay exact. Low values make stiff rods and spines, and nil (the default) lets the chain bend freely. Stiffness can put a reachable target out of reach. In that case the solve settles as close as it can and reports false instead of looping forever.

The InverseKinematics example plants five tentacles under a swimming lure, with maxBend and the solver choice live.

DoublePendulum: chaos from two arms

A DoublePendulum is two point masses on rigid arms, swinging under gravity. It is the simplest system with chaotic motion. You configure it when you create it, then call advance() each frame. The settings are length1 and length2 in canvas units, mass1 and mass2, and the starting angle1 and angle2. The angles are in radians, measured from hanging straight down. You can also give starting velocities and a gravity. The default gravity treats 100 canvas units as one meter.

Read positions through bob1 and bob2. Both are relative to the pivot, with y pointing down. So drawing is a translate to the pivot and two lines. bob2 is the point to trace, because the chaotic motion happens at the end of the second arm.

advance(by:) defaults to one 60 fps frame. It splits the interval into fixed substeps, sized so the integration holds energy steady. You can check that with the energy property, which stays almost exactly constant. This has two consequences:

• Determinism: if you call advance() with the default every frame, the whole run is a pure function of the starting angles. The same start replays the same motion. A start a ten-thousandth of a radian away diverges into a different motion within seconds. That sensitivity is the classic demonstration of chaos, and the DoublePendulum example draws it as a fan of 24 pendulums.
• Wall-clock timing: passing a live deltaTime follows the wall clock instead, so the run is no longer exactly reproducible. For exports and snapshots, keep the default.

NBody: gravity at scale

In an NBody, every body pulls on every other body. That one rule produces orbits, spiral shear, tidal tails, and mergers. NBody(bodies:gravity:theta:softening:) takes the bodies and the constants, and it holds a public bodies array of NBody.Body values, each with position, velocity, and mass. You may change the array freely between steps. advance(by:) advances the whole system.

Three parameters shape the physics:

• gravity (default 1) is the gravitational constant. It sets the overall pace of the simulation, and it is the only parameter that does.
• theta (default 0.7) sets the accuracy of the far field. Forces run through a quadtree. Inside that tree, a clump of distant bodies acts as a single point when its region looks smaller than theta times its distance. That approximation is what makes a few thousand bodies cheap. Use 0 for the exact all-pairs sum, 0.5 when the error shows in the motion, and 1 for speed over accuracy.
• softening (default 4) caps how hard a close encounter pulls. So a near-collision swings through smoothly instead of flinging a body off to infinity. A value of a few pixels, about the typical body spacing, looks right.

The integrator is the standard leapfrog for gravity. It holds orbital energy bounded over long runs instead of letting orbits slowly decay, and it costs one force pass per step. Keep the interval fixed from frame to frame, because a fixed interval is part of what keeps orbits stable. The default is one 60 fps frame.

Two seeded factories set up the classic scenes:

• NBody.disk(count:center:radius:...) builds a spinning disk around a heavy central body, which is bodies[0]. Each light body starts on the circular orbit for its radius. spin flips the direction, jitter roughens the orbits, and velocity moves the whole disk. That last parameter is how you set up a two-galaxy encounter: build two disks, then append one disk's bodies to the other's.
• NBody.cluster(count:center:radius:...) scatters bodies at rest. They collapse inward, swing through, and spread out into a bound swarm.

Read positions for drawing. Read centerOfMass to keep a camera or a translate anchored on the action as it drifts. The NBody example sets up two galaxies on a bound grazing orbit. It draws small additive points, so the arms glow where they cross.
