Truchet tiling

Put the same little tile on every cell of a grid, and spin each one to a random orientation. The tile's marks always meet the cell edges at the same points, so the random spins still line up across borders. A wall of identical parts then reads as one flowing, connected pattern. The whole thing costs one tile and one coin flip per cell, which is a cheap way to get a rich, non-repeating design. The layout is reproducible from a seed.

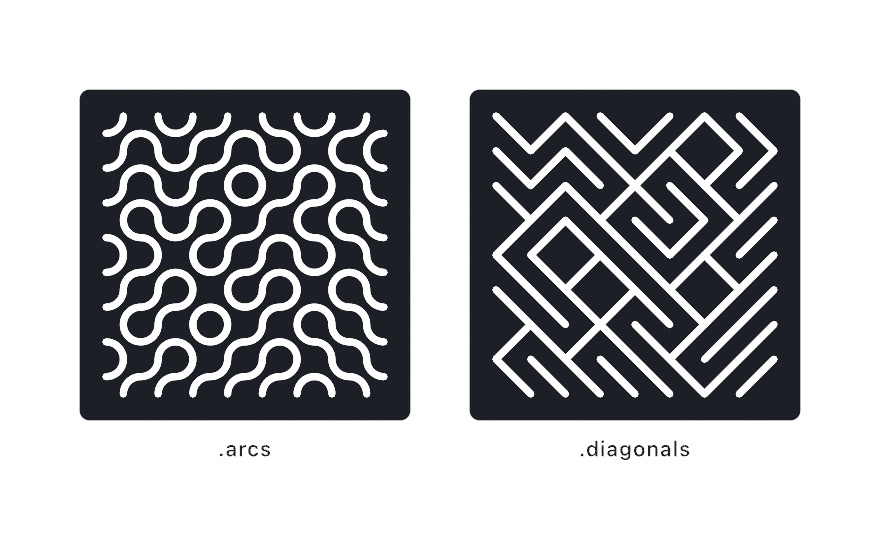

Two panels of white line work on dark squares: quarter-circle arcs joining into meandering loops, and corner-to-corner diagonals forming a maze

Two tiles are built in, .arcs and .diagonals, and each one has two orientations (see Tile styles). The output is a set of open Contours, which are the line-work. You can stroke them, hatch them, feed them to the shape booleans, or export them to SVG for a pen plotter.

Contents

truchet

truchet(in bounds: Rectangle? = nil,
        columns: Int, rows: Int,
        tile: Truchet.Tile = .arcs) -> [Contour]

Returns the line-work of a Truchet tiling over a columns × rows grid of bounds, which is the whole canvas by default. Each cell gets one tile, spun to a random orientation drawn from the seeded random, so the same seed always lays out the same pattern. The result is open Contours: two quarter-arcs per cell for .arcs, and one diagonal per cell for .diagonals.

Iterate the contours to color each one, so a flow of hue travels along the connected curves. You can also feed them to the booleans, to hatching, or to SVG export:

seed(3)
noFill(); strokeCap(.round); strokeWeight(11)
for arc in truchet(columns: 12, rows: 12, tile: .arcs) {
    let mid = arc.midpoint
    stroke(Color.mix(.teal, .orange, (signedNoise(mid.x * 0.003, mid.y * 0.003, time) + 1) * 0.5))
    drawPolyline(arc.points)
}

Use square cells to keep the arcs circular, so match columns to rows on a square canvas. On a non-square grid the arcs become elliptical, but they still connect. See the Truchet example.

drawTruchet

drawTruchet(in bounds: Rectangle? = nil,
            columns: Int, rows: Int,
            tile: Truchet.Tile = .arcs)

Draws a Truchet tiling with the current stroke, in one call. To color each tile separately, iterate the contours that truchet(…) returns instead.

seed(1)
stroke(.white); strokeWeight(3); strokeCap(.round)
drawTruchet(columns: 20, rows: 20, tile: .diagonals)   // a maze

Tile styles

Truchet.Tile picks the tile:

  • .arcs joins each cell's edge midpoints with two quarter-circles. The arcs meet across borders and form smooth meandering loops and rings. This is the classic Truchet look, after Cyril Stanley Smith.
  • .diagonals draws one corner-to-corner diagonal per cell (╲ or ╱), so the cells read as a maze of connected corridors.

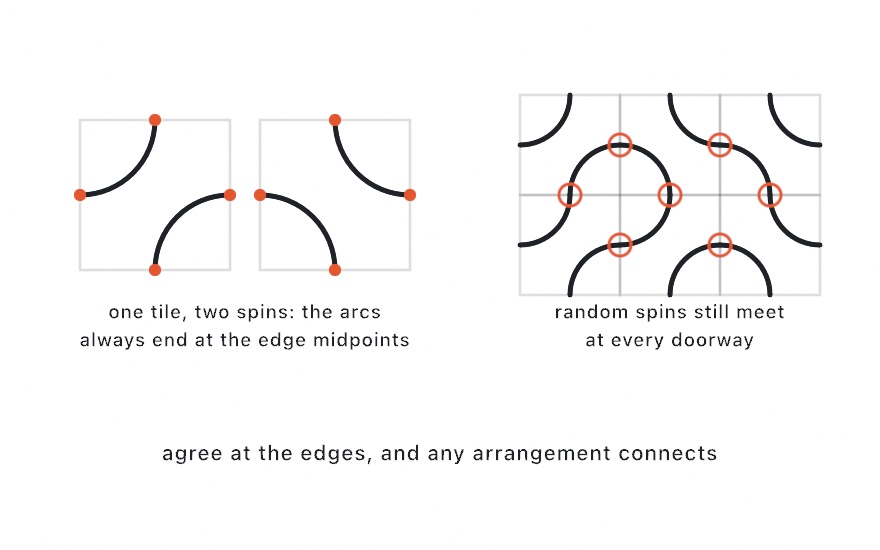

The arc tile's two spins, with dots marking where arcs end at edge midpoints; beside them, six randomly spun tiles whose arcs meet exactly at every shared edge midpoint

Single tiles

Truchet.contours(in rect: Rectangle,
                 tile: Truchet.Tile = .arcs,
                 flipped: Bool = false) -> [Contour]

Returns one tile's line-work in rect, at a spin you choose instead of a random one. flipped: false gives the ╲-leaning orientation, and true gives the ╱. This is the building block that the grid form places in each cell. Use it to hand-author a layout, such as weighted spins, symmetric arrangements, or one specific pattern. You can also use it to draw a single tile on its own:

// A tiling whose spins follow a checkerboard instead of a coin flip.
for cell in grid(columns: 12, rows: 12).cells {
    for arc in Truchet.contours(in: cell.frame, flipped: (cell.column + cell.row) % 2 == 0) {
        drawPolyline(arc.points)
    }
}

Related: Voronoi & Delaunay (another way to turn points into vector pattern), Blue noise (even scatter), Geometry (the Grid, Contour, and shape booleans this tiling is built on).
