Hilbert order

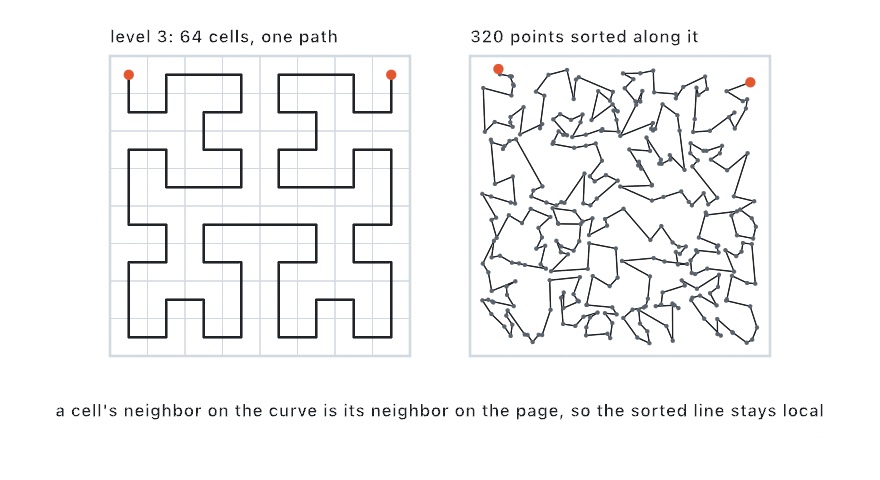

hilbertOrder sorts points by their place along a Hilbert curve, the space-filling curve David Hilbert described in 1891. The curve visits every cell of a square grid once. Two cells next to each other along it are next to each other on the page. Sort a scatter by where the curve visits each point and you get one line through all of them that stays local. That is a stipple drawn as one stroke, a cloud of points walked in an order that keeps neighbors together, or a large set put in order by a single sort. It is the cheap relative of the single line. That one runs a tour and finds a short route. This one sorts and finds a local one.

The curve's grid is laid over the points' own bounds, so the order follows the scatter's shape rather than the canvas. The line it gives is not a shortest tour, and where the scatter has a gap the line crosses it in one step. But it keeps neighbors together, which is what a reveal, a plotter path, or a walk through a point cloud wants.

Contents

• hilbertOrder and hilbertSorted
• hilbertIndex
• Practical notes

hilbertOrder and hilbertSorted

hilbertOrder(of points: [Vector2], level: Int = 16) -> [Int]
hilbertSorted(_ points: [Vector2], level: Int = 16) -> [Vector2]

hilbertOrder(of:) returns the indices of the points in the order the curve visits them, so order.map { points[$0] } is the points sorted, and anything that travels with a point (a color, a size, a weight) can be reordered beside it. hilbertSorted(_:) is the points themselves in that order, a permutation of the input.

let dots = stipple(of: picture, count: 4000, in: frame)
let line = hilbertSorted(dots)
noFill()
stroke(.black)
drawPolyline(line)                     // one line through the stipple

let order = hilbertOrder(of: dots)
for (place, i) in order.enumerated() { // colored by the place along the curve
    fill(ramp.color(at: Double(place) / Double(dots.count)))
    drawCircle(center: dots[i], radius: 3)
}

level is how fine the curve is: a grid of 2^level cells across. At the default of 16 the grid is 65,536 cells across, finer than any canvas, so every point has a place of its own. A lower level makes a coarser order: the points in one cell read as the same place and keep the order they were given, so a line through them scribbles inside each cell before moving to the next. The Examples/Images/HilbertLine sketch draws the curve under the line at low levels to show that.

The order is deterministic, and the sort is the whole cost: a hundred thousand points order in a few milliseconds.

hilbertIndex

hilbertIndex(of point: Vector2, in bounds: Rectangle, level: Int = 16) -> Int

The place of one point along the curve laid over bounds: the index of the cell it falls in, from 0 at the first cell to 4^level - 1 at the last. The curve starts at the top left of the bounds and ends at the top right. A point outside the bounds reads at the nearest cell, a bounds with no width or no height maps that axis to the first cell, and level is held to 1 ... 30. This is the primitive the sort uses; reach for it to order points by a curve over a fixed rectangle rather than over their own bounds, or to give a point a fraction along the curve (Double(index) / Double(1 << (2 * level))) for a color or a delay.

let place = hilbertIndex(of: mouse, in: canvasRectangle, level: 8)   // 0 ..< 65,536

Practical notes

• Sort once, then hold the order. The sort is quick, but a reveal that draws a growing prefix of the sorted points needs the same order every frame, so keep the result.
• Local, not short. The curve's square turns show in the line, which is part of the look. For the shortest line through the same points, singleLine runs a tour at a far greater cost.
• A gap is one step. Where the scatter is empty, the curve passes through empty cells and the line jumps straight across. Lower the level if the jumps should group by region instead.
• Large sets. This is the order to walk a point cloud or a particle set in when nearby points should be handled near each other in time, since the sort is a single pass.

Related: Stippling (places the dots), Single line (the tour through the same dots), Spanning tree (the branching rendering), L-systems (LSystem.hilbertCurve draws the curve itself as a turtle path), Export (SVG and the plotter path).
