Running unattended

A sketch at a desk runs for one session, and you watch it. A sketch on a wall runs for days with nobody there, so several things can end it. For example, the screen saver comes on, the display sleeps, somebody unplugs a monitor, or the clock the shaders read runs out of precision overnight.

Declaring an installation prevents all of that.

override var installation: Installation { .on }

That is the whole declaration. The window fills the screen, the pointer is hidden, and the display stays awake with the screen saver off.

Command-Q still quits, whatever the sketch covers, because the menu bar is hidden rather than removed.

What .on turns on

To change any part, build an Installation by hand. Any value you build counts as running, and .off is the only value that does not.

override var installation: Installation {
    Installation(fillsScreen: false)     // a window, but still left running
}

The flags

You do not have to edit a sketch to try it on a wall, or to bring it back from the wall to your desk.

swift run --package-path Examples Example-Motion-Orbits --installation        # any sketch, full screen, left running
swift run --package-path Examples Example-Installation-Unattended --no-installation   # back to an ordinary window
swift run --package-path Examples Example-Motion-Orbits --displays spanning   # across every display this machine has
swift run --package-path Examples Example-Motion-Orbits --rehearse 3          # that wall, laid out on one desk

Use --no-installation while you work on the sketch. Everything else about the sketch stays the same, so what you tune at your desk is what goes on the wall.

The clock is the part that breaks

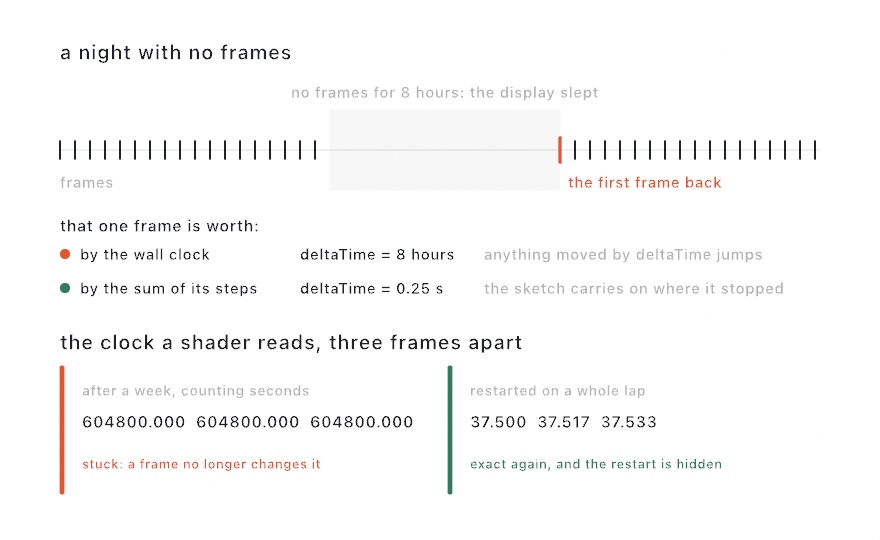

Two things go wrong with time in a long run, and the framework prevents both for you.

A gap in the frames is a pause, not a jump. The sketch clock adds up its own frame steps. Each step is capped at a quarter of a second. So the sketch resumes where it left off after a display sleeps overnight, or after a window is held during a drag. The same is true after any other stall. Without the cap, the first frame back would report the whole gap as deltaTime. One eight-hour step would push every integrator in the sketch far past where it should be.

A quarter of a second is longer than one frame at any rate worth animating at, so a running sketch never reaches the cap. A sketch slower than four frames a second runs in slow motion, which is better than the jump.

The clock a shader reads restarts. Your sketch reads time as a 64-bit number, which stays exact for centuries. A shader reads it as a 32-bit number, which does not. One day into a run, one frame's worth of time is at the limit of what that number can resolve. The motion then becomes uneven. One week in, adding a frame does not change the number at all, so anything animated inside a shader stops.

So a sketch that loops gives its shaders a clock that restarts at the end of each whole lap:

override var installation: Installation { .on }
override var loopDuration: Double? { 120 }     // two minutes a lap

Nothing on screen moves at the restart, because the sketch is back at its start anyway. That is why the restart is tied to the loop rather than to a round number of seconds.

A sketch that does not declare a loop keeps its clock running, because there is no moment when a restart would go unseen. If you know a safe moment, say when to restart the clock, or say to leave it alone:

Installation(clock: .restarting(every: 600))   // every ten minutes
Installation(clock: .continuous)               // never

Pick a restart interval that is a whole multiple of the periods your shaders animate on. Otherwise, expect a visible jump at each restart. time itself always keeps counting, so nothing in your own draw() changes.

Picking up where it left off

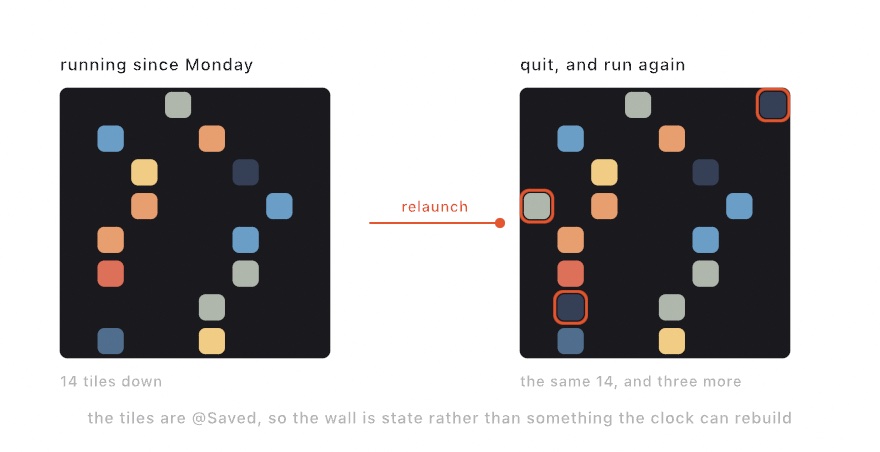

A sketch that has been growing for three days cannot usefully be rebuilt from its seed. Getting back to the same state would mean running the three days again. So the state itself is saved, and the next launch reads it.

You declare two things: how often to save, and which properties are worth saving.

override var installation: Installation { Installation(checkpoint: .every(seconds: 60)) }

@Saved var polyps: [Vector2] = []
@Saved var generation = 0

That is the whole API. Every @Saved property is written at that interval, along with the seed, the clock, and every @Param value. A relaunch restores them all, and the sketch carries on.

The same mark does a second job at the desk. When you evaluate an edit in the live-coding host and the run carries on rather than starting over, the @Saved properties are what comes across: see what the edit changed.

Checkpointing is off until you ask for it, even under .on, because restoring changes what a sketch does on launch. That is right for a wall and confusing at a desk.

Nothing is ever written before the run has read the file it replaces. This matters because a quit or a stop signal can arrive before the first frame. A save at that point would replace a run that had been growing for days with an empty one.

Anything Codable can be saved: numbers, strings, arrays, dictionaries, and your own structs and enums once you mark them Codable. Ollin's small value types (Vector2, Vector3, Color, Rectangle, Insets) are already Codable.

Nothing that lives on the GPU can be saved. That covers an accumulated canvas, a feedback layer, a simulation field, and a compute buffer. Those are textures the framework owns, and a checkpoint does not reach them. So a sketch built on them comes back on a clean canvas.

When the file and the sketch disagree

At some point you will edit the sketch while a checkpoint from the old version still exists. Each mismatch affects only the value it touches, and everything else still restores:

Nothing here ever stops a sketch from starting, because an installation that will not start is worse than one that started over.

Starting over, and saving by hand

swift run --package-path Examples Example-Installation-Watched --fresh

--fresh ignores the saved state without deleting it, so one clean run does not cost you the file. To delete the file for good, call forgetCheckpoint(). To write a checkpoint at a moment you choose, such as a key press or the end of a phase, call saveCheckpoint().

The file is JSON, sorted and indented, in ~/Library/Application Support/Ollin/Checkpoints/, one file per sketch. It is meant to be read. When a sketch comes back wrong, the state it came back with is the first thing to look at.

{
  "frameCount" : 4098,
  "sketch" : "Watched",
  "state" : { "runs" : [ 42.1, 3.6, 67.9 ] },
  "time" : 67.98
}

The save runs inside the frame it falls on, so keep the saved state to what the sketch needs. Saving a hundred thousand particles will stall that frame.

Getting back up on its own

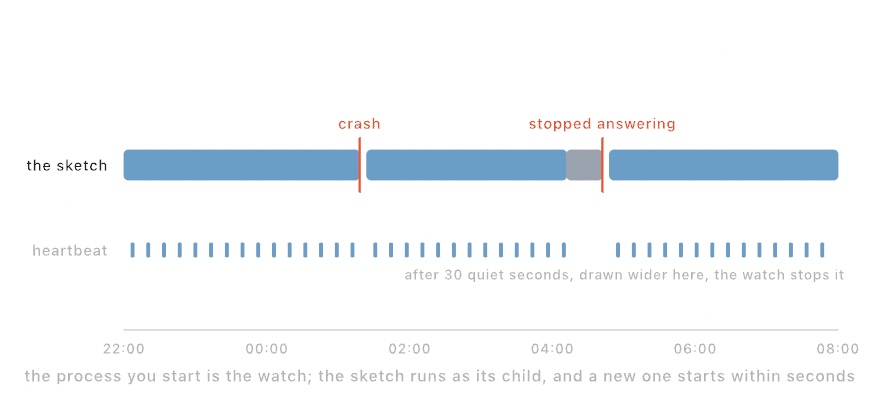

A crash at three in the morning leaves the wall dark until somebody notices, which is usually the next day.

override var installation: Installation {
    Installation(checkpoint: .every(seconds: 60), restarts: .onFailure)
}

The process you start becomes a small watch process that owns no window, and the sketch runs as its child. When a run ends badly, the watch starts another one. Pair it with a checkpoint, because a restart is worth most when the sketch comes back where it was.

Two things count as ending badly, and an exit status cannot show the second one.

Quitting does not count as ending badly. Command-Q ends the sketch and the watch together, and so does stopping the watch itself.

A sketch that fails one second after it starts is broken in a way that a restart will not fix. So each try waits longer than the last. After five short runs in a row, the watch stops trying and says so in the log. One run of any real length clears that count, so a sketch that fails once a week keeps running indefinitely.

A heavy setup() is not a stall. A sketch has not answered at all until its first frame, so a start gets at least two minutes, whatever the limit says. For a sketch that blocks for longer on purpose, set your own limit, or turn the stall watch off and keep the crash watch:

Installation(restarts: .onFailure(stalledAfter: 300))   // five minutes without a frame
Installation(restarts: .onFailure(stalledAfter: 0))     // crashes only, and wait for ever

Restarting is off until you ask for it, even under .on. A sketch that crashes while you work on it should stay crashed, so that you can read the error. --no-installation turns the watch off along with everything else.

Ollin installation [2026-08-15 13:02:06]: watching this run; a sketch that stops answering for 10s is started again
Ollin installation [2026-08-15 13:02:18]: the sketch crashed (signal 9) after 12s; starting it again in 1s
Ollin installation [2026-08-15 13:02:19]: resumed the run saved at 2026-08-15 13:02:16 (frame 596, 10s in)
Ollin installation [2026-08-15 13:02:38]: the sketch has not answered for 10s; stopping it

Keeping hours

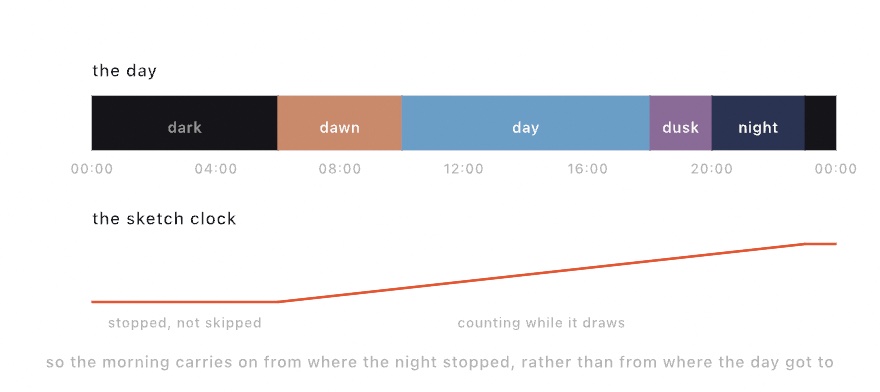

An installation usually runs in a building, and a building is open only for part of the day.

Installation(schedule: .open(from: 10, to: 18))

(Installation.off is the only one whose runsUnattended is false. Anything you build by hand is something you mean to leave running.)

Outside those hours the screen goes dark, the frames stop, and the display is allowed to sleep. In the morning the sketch comes back where it stopped. The clock adds up only the frames it drew, so a night off costs it nothing. The state is saved on the way into the dark, so a sketch that checkpoints also survives the night.

The other half of a schedule is behaving differently at different times of day. Name the parts of the day, and the sketch reads which one it is in.

override var installation: Installation {
    Installation(schedule: [.from(6, "dawn"), .from(10, "day"),
                            .from(18, "dusk"), .from(22, "night")])
}

override func draw() {
    background(scheduledPeriod == "night" ? Color(white: 0.04) : .white)
}

Each part runs until the next one starts, and the last part wraps around to the first. That is what makes a night that crosses midnight one part rather than two. scheduledProgress reports how far through the current part the day is, from 0 to 1, for a sketch that changes gradually rather than switching.

An hour on its own names a time of day, and .at(9, 30) names a time to the minute. Times are read in the machine's own time zone.

The two halves go in one list, so you can mix them. A part with nothing on screen is .dark(from:):

Installation(schedule: [.from(9, "morning"), .from(13, "afternoon"), .dark(from: 20)])

A schedule is a value of its own. Schedule.always is the one that never goes dark, and periods is the list it was built from. period(at:) says which part a moment falls in, and shows(at:) whether anything is on screen then. nextChange(at:) says when the next part starts, which is what the sketch sleeps until. Each Schedule.Period carries its own name, its starting Time (an hour and a minute, or minutes past midnight), and whether it shows anything.

scheduledPeriod and scheduledProgress read the same anywhere, at a desk as much as on a wall. So you can work on a sketch that changes through the day at any hour of it. Going dark is the half that needs the installation, because only a sketch that owns its window can take the screen away.

Fitting the wall

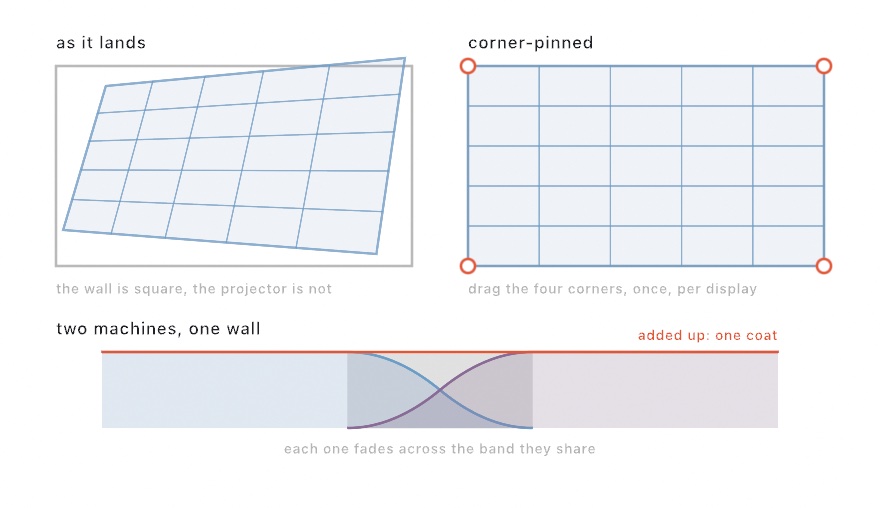

A projector is almost never square to the surface it is aimed at. It hangs from a beam, or sits on a shelf to one side. So the picture lands as a trapezoid a few degrees out of true.

The four dragged corners are a Projection.Corners, in fractions of the display, and Projection.direct is the projection that warps nothing: square corners, the whole canvas, no fade. Corners.fit is the untouched rectangle and Corners.filling the one stretched to the display's edges, and isFit says which of the two a set of corners still is.

So the framework places the picture, rather than the window. Press Command-K on a running sketch, drag the four corners onto the wall, and press Command-K again.

swift run --package-path Examples Example-Installation-Fitted --calibrate    # open with the handles up

The numbers are stored per display, not per sketch, in ~/Library/Application Support/Ollin/Calibration/. A projector on a wall is out of true by the same amount whatever is playing. So you line it up once, and every sketch you show there opens square. Delete the file to start again.

Reading that file can never stop a sketch from starting. A file that is missing, unreadable, or written by an older Ollin is skipped, and the sketch opens as declared.

Two machines on one wall

A wall longer than one projector can cover needs two projectors, each carrying part of the canvas. They overlap in the middle, and the overlap is twice as bright as the rest unless each projector fades out across it.

// The machine on the left.
Installation(projection: .init(visibleRegion: Rectangle(x: 0, y: 0, width: 0.6, height: 1),
                               blend: Insets(right: 0.2)))
// The machine on the right.
Installation(projection: .init(visibleRegion: Rectangle(x: 0.4, y: 0, width: 0.6, height: 1),
                               blend: Insets(left: 0.2)))

visibleRegion is the part of the canvas this machine carries, in fractions of the canvas, and Projection.wholeCanvas is the default: all of it, which is what one machine on its own carries. blend is how far the fade reaches in from each edge, in the same fractions, and blendCurve is how that fade is shaped, 1 a straight line and 2 an S that spends longer at full brightness and longer at nothing. Two is the number the published work uses, and the one to leave alone until you see a band you do not like.

The units are the same on purpose. Both machines are told about the same fifth of the same canvas. So both machines compute the same fade across the same part of the wall, and the two fades add up to exactly one coat.

The fade is applied to light rather than to a pixel value, which is what makes the sum exact. gamma tells Ollin what your projector does with the standard curve, and Projection.standardGamma, 2.2, is that curve. Change it when a lined-up overlap still looks brighter or darker than the picture beside it.

What it does and does not touch

A fitted window fills the display, and the canvas keeps its own proportions inside it. So a square canvas on a wide screen looks the same as it always did until you drag a corner.

The pointer goes through the warp in reverse, so a sketch being lined up still reads mouseX in its own canvas coordinates.

Exports are never warped. A file has no wall to fit, and the frames a sketch writes out are the canvas itself. The same goes for a Syphon feed, since the software receiving it does its own mapping.

The canvas renders at its own proportions, as large as the display allows. Dragging the corners wider than that stretches what has already been drawn, so a sketch meant for a wide wall should declare a wide canvas.

Several displays, one machine

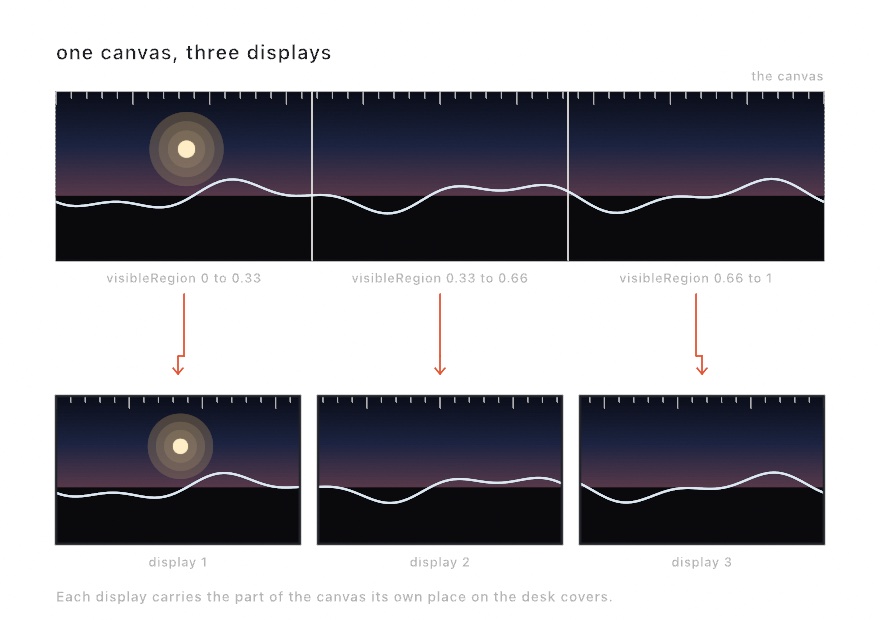

A wall wider than one projector needs more than one beam, and a machine with two outputs can carry both itself.

override var installation: Installation {
    Installation(displays: .spanning)
}

That spreads one canvas over every display the machine has, in the arrangement they are in. Two monitors side by side carry half each. Two monitors one above the other carry a horizontal band each. A display twice as wide as the one beside it carries twice as much. You declare no numbers, because the display arrangement already holds all of them.

The gap between two monitors is given a part of the canvas that nobody sees, because that is how the arrangement looks from in front. The alternative is a picture with a piece cut out of the middle.

The sketch itself knows none of this. It draws one canvas, and the wall decides which part of that canvas each display carries.

.parts is the form for a wall that is not a plain arrangement of monitors. The usual case is two projectors overlapping in the middle, which is the two-machine declaration above with both halves on one machine:

Installation(displays: .parts([
    .init(visibleRegion: Rectangle(x: 0, y: 0, width: 0.6, height: 1), blend: Insets(right: 0.2)),
    .init(visibleRegion: Rectangle(x: 0.4, y: 0, width: 0.6, height: 1), blend: Insets(left: 0.2)),
]))

A display past the end of the list stays dark. A declaration past the end of the displays is ignored.

You can combine the two. A machine that carries part of a longer wall divides that part between its own displays. So four projectors on two machines is two declarations of two parts each. visibleRegion on the machine's own projection is the region it carries, and the wall divides that region rather than the whole canvas.

Lining up a wall

Command-K shows the handles on every display at once, because a wall is lined up as one thing. The keys that move a corner go to the display you last clicked on. Each display's corners are stored under its own identifier, so a wall lined up once opens square for every sketch shown on it.

Rehearsing a wall you have not built

You usually see the wall for the first time in the room where it is going up. Before then, you can see what each display will carry:

swift run --package-path Examples Example-Installation-ManyDisplays --rehearse 3

That opens one window per part on the desk you are at, side by side, each carrying its own part of the canvas. It shows the layout rather than the light. Two beams sharing a band add up to one coat, but two windows sharing a band would only cover each other. Nothing you drag in a rehearsal is kept, because those windows stand for displays that are not there.

What it costs

The sketch is drawn once per frame, however many displays it goes on. The size it is drawn at grows instead. A projector that carries half the canvas at its own resolution needs the whole canvas drawn at twice that resolution. Four displays in a row need four times the canvas that one of them would. The canvas is capped at the largest size a texture can be, and the log reports the cap when a wall reaches it.

The run is paced by the display the sketch is drawn in. A display with a different refresh rate shows the frames as they arrive. The pointer belongs to that display too, so a sketch that reads mouseX reads it there.

When a mapping application already owns the wall, use Syphon instead. That works the other way round: the sketch sends its frames out, and the application places them.

Displays that change under you

A monitor that is unplugged, plugged back in, or set to a new resolution reaches the sketch as a burst of notifications. There can be dozens in a second. Ollin waits for the burst to end first. Then it puts the sketch back on a screen that still exists, and retimes the draw loop to the refresh rate of that screen. So a sketch moved from a 60 Hz panel to a 120 Hz one asks for the right rate from then on.

Waking from sleep is handled the same way. The assertion that keeps the display awake is requested again, because it does not always survive a sleep.

The log

An unattended run writes a log to stdout, and each line is time-stamped and flushed immediately. That log is the only record a sketch running for a week has.

Ollin installation [2026-08-15 08:41:45]: running unattended; Command-K lines it up, Command-Q quits
Ollin installation [2026-08-15 08:41:46]: the displays changed: now 1 (1680x1050)
Ollin installation [2026-08-16 03:12:08]: the screens woke

Send it somewhere you can read later:

swift run --package-path Examples Example-Installation-Unattended >> ~/wall.log 2>&1

Where it applies

The declaration is read when a sketch opens its own window, which is the swift run Example-X path and any sketch with @main. The live host and the examples gallery own their windows and their own chrome, so a sketch under them stays in their window. Tune the sketch there, then run it on its own to put it on the wall.

One loose file goes up the same way. A single .swift file has no target of its own. The host that usually runs it is the live host, which owns the window. The flag gives the sketch a window of its own:

ollin Wall.swift --installation

The file is compiled once, and the sketch is given the window. Every part in the table above then applies to it. It does not reload on save, and that is deliberate, because a sketch on a wall runs the code it was started with. Work on it in the live host (ollin Wall.swift, no flag), then put it up. See Single-file sketches.

Exports open no window, so none of the window parts apply to them. The clock restart does apply to an export, because it belongs to the sketch rather than to the window. It falls on a whole lap there too.

Several windows, one world

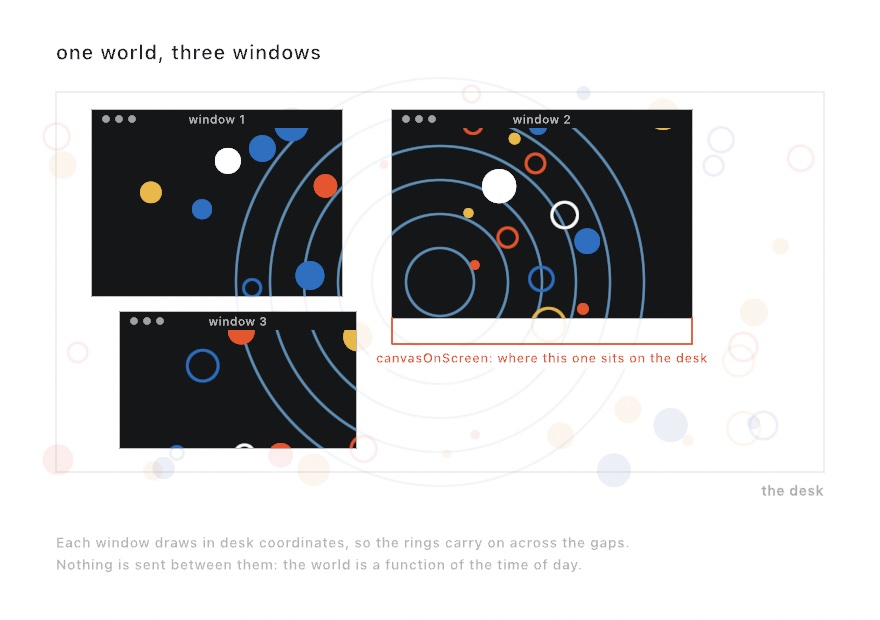

A sketch is not always one window. If you run the same sketch more than once, each run opens its own window on the same desk.

canvasOnScreen reports where this canvas sits on the desk, in screen points, measured from the top-left corner of the main screen, downward. Every window describes the same desk in the same numbers, so each one can draw its own part of a single world:

guard let mine = canvasOnScreen else { return }
let onCanvas = worldPoint - Vector2(mine.x, mine.y)     // the desk, seen from here

screenFrame gives the frame of the screen the window is on, which is a natural size for the world itself. Both read nil in an export, where there is no window.

Keeping separate programs in step is the harder half. The cheapest answer needs no messages at all. Make the world a function of the time of day. Every window reads the same clock, so none of them can disagree.

See also

• Export for writing frames, video, and vectors out of a sketch.
• Sketch for loopDuration and the rest of the declared configuration.
• Canvas for how the canvas and the window relate, which is what lets a 1080 square fill a wide screen without distorting.
• The Unattended example, and the Watched example, which remembers its runs through @Saved and comes back from a crash.
• The Fitted example, a sketch with marks on it that you line the corners up against.
• The ManyWindows example, one world seen through as many windows as you open.
