Keyframed parameters

A @Param gives a sketch a parameter you can adjust. An Automation moves that parameter for you. You place one value at one moment and another value later, and a curve carries the first value into the second. So you do not have to tune the parameter by hand, because the automation sets it for you as the sketch runs.

The tracks read the sketch clock, and every export drives that clock at a fixed step. So an automated run renders exactly as it plays.

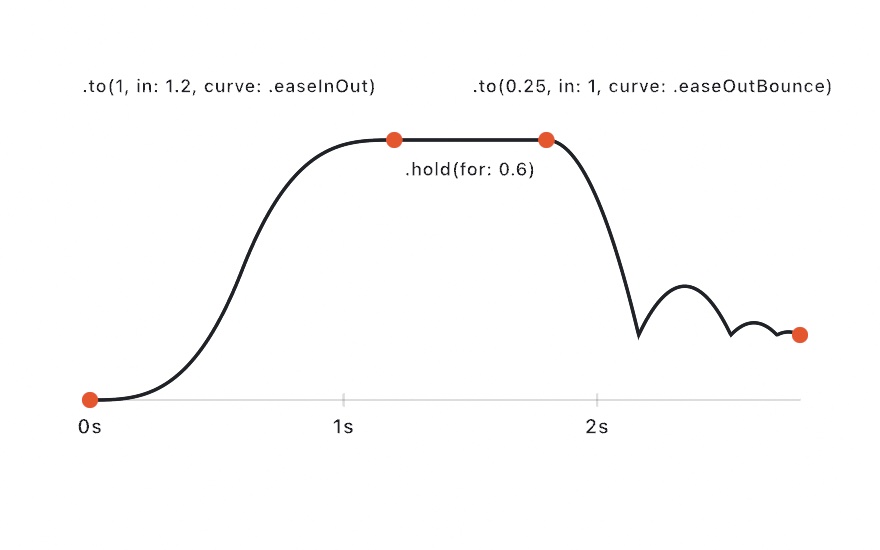

A timeline's value plotted over 2.8 seconds: an eased rise to 1, a flat hold, then an easeOutBounce drop to 0.25, keyframes marked as dots

Writing tracks in code
Curves
What blends, and what steps
How a pass plays
Reading a track back
A track that is a rule
The file
How it sits beside the rest

Writing tracks in code

Call automate(_:_:) in setup(), once for each parameter. Inside the closure you place the keys, and each key takes a value of the parameter's own type:

final class Breathing: Sketch {
    @Param(20...400) var radius = 120.0
    @Param var tint = Color.coral

    override func setup() {
        automate($radius) { track in
            track.key(at: 0, 40)
            track.key(at: 2, 320, curve: .easeInOut)
            track.key(at: 4, 40)
        }
        automate($tint) { track in
            track.key(at: 0, .coral, curve: .linear)
            track.key(at: 4, Color(hex: 0x2E6BE6), curve: .linear)
        }
        automation?.loops = true
    }

    override func draw() {
        background(.white)
        fill(tint)
        drawCircle(center: center, radius: radius)   // both parameters are on their curves
    }
}

The $radius form passes the parameter itself rather than its value, and that is how the track learns the property name. You can write the keys in any order, because a track sorts them by time. If you call automate again for the same parameter, the new track replaces the old one.

Every frame, before the sketch draws, each track reads the sketch clock and sets its parameter to the value its curve holds at that time.

Curves

A key carries the curve that leaves it and runs to the next key, so the curve on the last key is never read.

Curve	What it does
`.hold`	stay at this value until the next key, then jump
`.linear`	a straight line
`.easeIn`	start slowly, arrive fast
`.easeOut`	start fast, arrive slowly
`.easeInOut`	slow at both ends, fast through the middle (the default)
`.bezier(x1:y1:x2:y2:)`	a cubic Bezier through two handle points

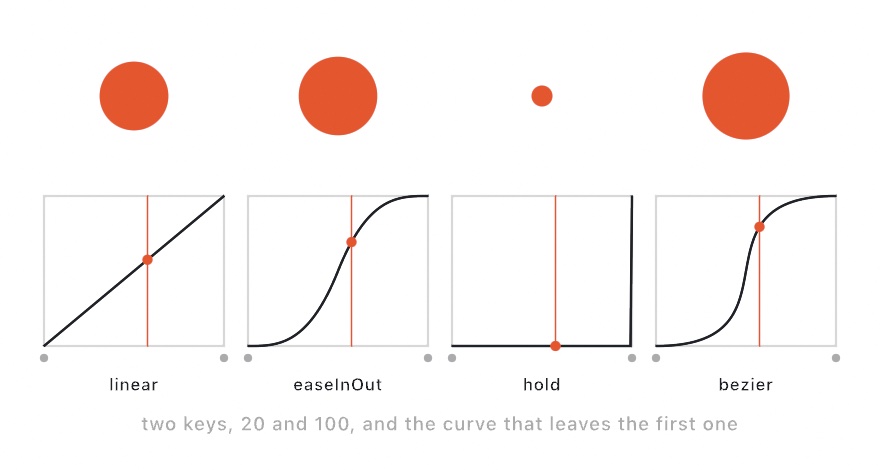

Four panels, each with the same two keys read by a different curve: a straight line, an S, a flat line that jumps at the end, and a steeper S that is flat at both ends and rises quickly through the middle. A red line marks one moment on each, and the circle above shows the size the parameter holds there

The Bezier is the curve you shape yourself. Its two handles change the timing as well as the value, the same way a curve you draw by hand does. The x of each handle stays inside 0...1, so the curve always reads from left to right. The y may go outside that range, and then the value overshoots and comes back.

track.key(at: 0, 40, curve: .bezier(x1: 0.85, y1: 0, x2: 0.15, y2: 1))   // a hard snap

track.hold(at:_:) is a shorter way to write a key whose curve is .hold.

What blends, and what steps

Numbers, colors, points, rectangles, insets, and ranges have values in between any two settings, so they travel along the curve. Colors blend along the same even path that Color.mix uses, so a fade between two keys stays even from end to end.

A switch, a menu choice, and a piece of text have no values in between. So they step instead, and the parameter holds the setting of the key it left until the next key takes over. Two keys of different kinds step in the same way, which happens when a parameter changed its type after its keys were written.

Outside its own span, a track is a constant. Before the first key it holds the first key's value, and after the last key it holds the last key's value.

How a pass plays

The automation reads its position from the sketch clock as start + time * speed:

automation?.speed = 2                       // twice as fast
automation?.loops = true                    // wrap at the duration
automation?.length = 8                      // hold past the last key, then wrap
automation?.speed = -1                      // and run it backwards,
automation?.start = automation?.duration ?? 0   // starting from the end

duration is the time of the last key on the longest track, unless length sets a different value. With loops off, a pass holds its last key once it runs past the end.

Reading a track back

An automation is plain data, so a sketch can read its own curves and draw them:

if case .number(let value)? = automation?.track(named: "radius")?.value(at: 1.5) {
    // what the radius parameter will hold one and a half seconds in
}

value(of:at:) does the same, but it takes a sketch time rather than a position, so it applies speed, start, and the loop first. The Automation example uses this to plot each of its own tracks under the stage.

A track that is a rule

Keys set a parameter's value at a few moments. A Formula sets it at every moment, and you write that rule as text rather than as Swift source:

drive($radius, "190 + sin(time * tau / 6) * 80")

A formula fills the same kind of track, so loops, speed, start, and length shape it the same way. A formula is also saved in the same file, where it appears as the text itself:

{ "name": "radius", "formula": "190 + sin(time * tau / 6) * 80" }

Inside a formula, time is the position in the automation. A formula can also read frame, the canvas, the pointer, and the sketch's other number and switch parameters by name. The Formula page lists the whole vocabulary and the two rules to know before you type one.

A parameter that holds more than one number takes one rule for each part. A part with no rule is left alone:

drive($eye, x: "frame.x + frame.width / 2", y: "height / 2")

{ "name": "eye", "parts": { "x": "frame.x + frame.width / 2", "y": "height / 2" } }

A Track works its parts out the same way it works out a whole value: partValues(at:) hands back the number each part holds at a position, keyed by the part's name, with every part reading time as that position so a track always agrees with the clock driving it. Automation.readableNames is the set of names a formula may read. Automation.parts(of:) names the parts that a stored value carries. Automation.applying(_:to:) puts the worked-out numbers back into a stored value, and that is how a track of parts becomes a whole value again. See a parameter of more than one number.

The file

An Automation is codable, so it reads and writes as JSON:

try automation?.write(to: url)
sketch.automation = try Automation.load(from: url)

The --automation <file> flag attaches a file to a standalone run or to any export:

swift run --package-path Examples Example-Motion-Automation --automation slow.json --export-video out.mp4 --seconds 12

A file is loaded before setup() runs. So when the sketch also writes a track for the same parameter, the sketch's track replaces the one from the file. Ollin refuses a file written in a newer format than this version understands, throwing AutomationError.incompatibleVersion rather than guessing at what it means. Automation.currentVersion is the one this build writes, and version is the one a loaded file declared. In code, setTrack(_:) adds a track, replacing whatever already drove that parameter. An older file still reads, because each layout so far has only added to the one before it.

Standalone runs, every export path, and OllinLive all read the flag. When no flag names a file, OllinLive also looks for the sketch's sibling file, Sketch.automation.json beside Sketch.swift. The live host installs the file's tracks again after every reload. Its timeline panel lets you edit those tracks by hand and writes them back to the same file.

How it sits beside the rest

Smoothing. A track sets its parameter directly rather than easing it in. So a @Param that carries smoothing: does not glide twice, because the curve already does the easing.
The inspector. A parameter under a track returns to its curve at the next frame. So dragging its slider only nudges the value for a frame instead of changing it. To tune by hand, take the track off with automation = nil. In OllinLive a parameter under a rule shows the rule in its row, with its control dimmed, and the row is where you edit or remove it; see the timeline page.
Takes. A run recorded with --record-take writes down the values the curves held. So the take replays the same run whether or not the automation is attached.
Exports. Every export flag drives the clock at a fixed step, so an automated sketch renders frame for frame. --export-video --seconds decides how many passes the file holds.
