Sonification

Sonification reads numbers out as notes.

You can listen to any series: a column of a table, a line across a terrain, or a row of a picture. Sonification spreads the values of the series over a range of pitch. When you snap the reading through a Scale, it stays in key, so the data can be music rather than only a signal.

It is also a way for a drawing to reach someone who is not looking at it. A sketch that plots a column can read that column out loud from the same numbers, so there is no second copy of the data.

import OllinAudio

let synth = Synth(.pluck)
let readings = Sonification(table, column: "temperature",
                            in: Scale(.minorPentatonic, root: "A3"))
var counter = StepCounter(perBeat: 2)

override func draw() {
    for step in counter.steps(upTo: time * 2) {
        synth.play(readings, step: step, tempo: 120)
    }
}

Like everything else in the composition tier, a reading answers a step number and has no clock of its own. So the same reading can be driven by time, by a detected beat, or by a TempoClock that follows a drum machine.

What it reads

There are four kinds of source, and each is a single call. A heightfield takes more than one, because a line across it can run along a row or at any angle.

Sonification(numbers)                                  // a series in hand
Sonification(table, column: "rainfall")                // a column of a table
Sonification(land, row: 32)                            // a line across a terrain
Sonification(land, from: Vector2(0, 0), to: Vector2(1, 1), count: 64)
Sonification(picture, row: 200)                        // a row of a picture

A picture that lives on the GPU has no pixels to read on this side, so it gives an empty reading. Call snapshot() first.

The settings

Sonification(numbers,
             in: Scale(.dorian, root: "D3"),   // the notes it may land on
             pitches: "C3"..."C6",             // the span it is spread over
             bounds: .robust(ignoring: 0.05),  // how the ends are decided
             polarity: .positive,              // which way round
             noteLength: .sixteenth)           // how long each note lasts

Where the ends go

.extremes                   // the smallest and largest values there are
.robust(ignoring: 0.05)     // the same, after setting aside 5% at each end
.fixed(0 ... 100)           // a range you name, whatever the data does

Use .robust with real measurements. Otherwise one bad sensor reading at a thousand times the scale of everything else flattens the entire series into a single note. Use .fixed to make two readings comparable with each other, because the same value then lands on the same note in both.

A value outside the range is held at the end of the range, so it does not run off into an inaudible pitch.

Reading it

Use pitch(for:) to place another value, such as a threshold, an average, or the value under the mouse, on the same scale as the reading.

The reference note

let sealevel = reading.reference(at: 0.5)
marker.play(sealevel, tempo: tempo)     // under the reading, every bar

Without a reference note, a listener needs absolute pitch to know what any note means. With one, a listener hears each note as above or below the reference note. That is what makes the reading a measurement rather than only a sound. The reference note does the job of a grid line on an ordinary chart.

Loudness

A second series can be read out as loudness alongside the first.

let reading = Sonification(depth, in: scale).amplified(by: confidence)

The two series are lined up by position, so entry 3 of one is heard at the same moment as entry 3 of the other. The reading holds it as loudness, with loudnessDomain saying which values of it land at the ends of levelRange. That range is the quietest and loudest a note may be, in decibels. If you give no second series (loudness is nil), every note plays at full level.

Loudness is the weaker of the two dimensions, and it deliberately does nothing unless you ask for it. How loud a note sounds depends on its pitch as well as its strength. That means a series read out on loudness alone is heard through a distortion. Use pitch first, and use amplified(by:) for a second series rather than to say the same thing twice.

How the mapping is made

Two choices are worth knowing about, because both are easy to get wrong and neither is what you would write first.

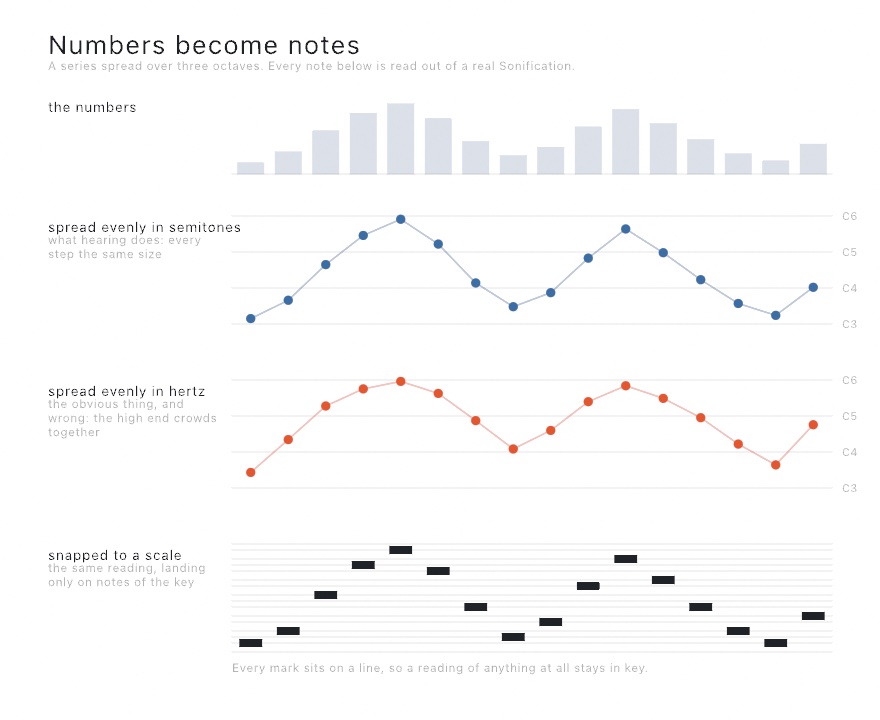

Pitch is spread evenly in semitones, not in hertz. Hearing is logarithmic. For example, the step from 220 Hz to 440 Hz and the step from 440 Hz to 880 Hz sound like the same distance. In hertz, the second step is twice the size of the first. So a series spread evenly in hertz crushes its whole bottom half into a few notes at the low end.

Loudness is spread evenly in decibels, for the same reason. The span runs between a floor and full level, not between silence and full level.

Semitones and decibels are the units pitch and loudness are heard in, which is why the mapping is linear once it is expressed in them.

Going further

• Composition - the Scale, StepCounter, and Note this is built on
• Synthesis - the instrument that plays it
• Data - loadTable and the Table a column is read from
• Terrain - the Heightfield a profile is read from

The example is Examples/Audio/Sonification. It draws a line across a landscape and reads it out at the same time.
